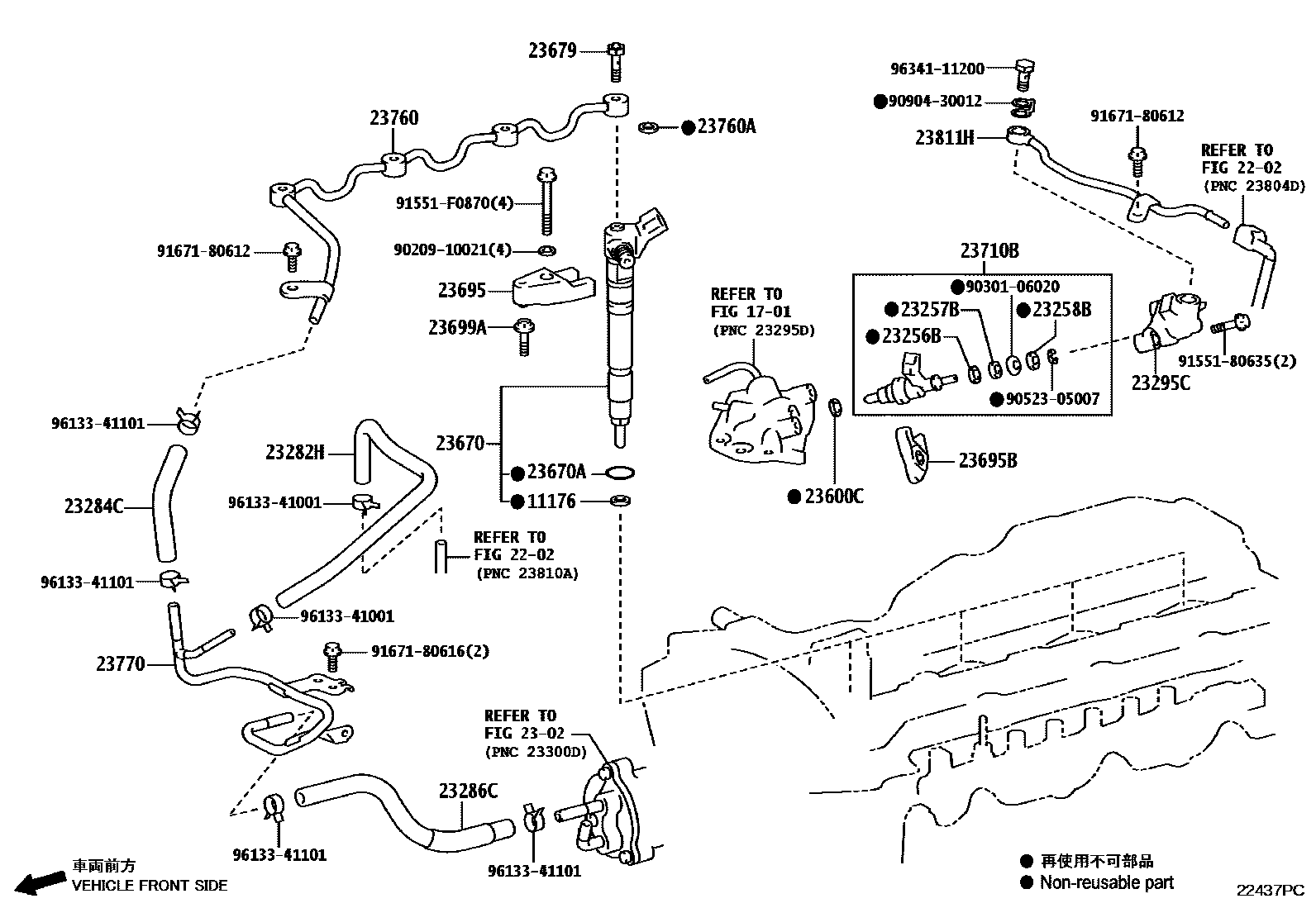

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010×4i1GDFTV..GDJ76202311

1701MANIFOLD

→ Go to FIG 17-01

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

2302FUEL FILTER

→ Go to FIG 23-02

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1GDFTV..GDJ76202311

23257BRING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i1GDFTV..GDJ76202311

23258BRING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i1GDFTV..GDJ76202311

23282HHOSE, FUEL, NO.4

main23282-11021i1GDFTV..GDJ76202311

23284CHOSE, FUEL, NO.5

main23284-11010i1GDFTV..GDJ76202311

23286CHOSE, FUEL, NO.6

main23286-11011i1GDFTV..GDJ76202311

23295CHOLDER, INJECTOR

main23296-11020i1GDFTV..GDJ76202311

23600CGASKET(FOR HOLDER & NOZZLE SET)

main90430-08017i1GDFTV..GDJ76202311

23670INJECTOR ASSY

main23670-09540×4i1GDFTV..GDJ76202311

main23670-39485×4i1GDFTV..GDJ76202311

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017×4i1GDFTV..GDJ76202311

23679SCREW, INJECTOR FOLLOW

main90401-06002×4i1GDFTV..GDJ76202311

main90401-T0007×4i1GDFTV..GDJ76202311

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-11010×4i1GDFTV..GDJ76202311

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-28010i1GDFTV..GDJ76202311

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-11010×4i1GDFTV..GDJ76202311

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-11010i1GDFTV..GDJ76202311

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0E011i1GDFTV..GDJ76202311

23760AGASKET

main90430-06013×4i1GDFTV..GDJ76202311

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0E011i1GDFTV..GDJ76202311

23811HPIPE, FUEL, NO.1

main23811-08010i1GDFTV..GDJ76202311

9020910021

main90209-10021

9030106020

main90301-06020

9052305007

main90523-05007

9090430012

main90904-30012

9155180635

main91551-80635

91551F0870

main91551-F0870

9167180612

main91671-80612

9167180616

main91671-80616

9613341001

main96133-41001

9613341101

main96133-41101

9634111200

main96341-11200

34 parts on this diagram · 1 diagram in section
