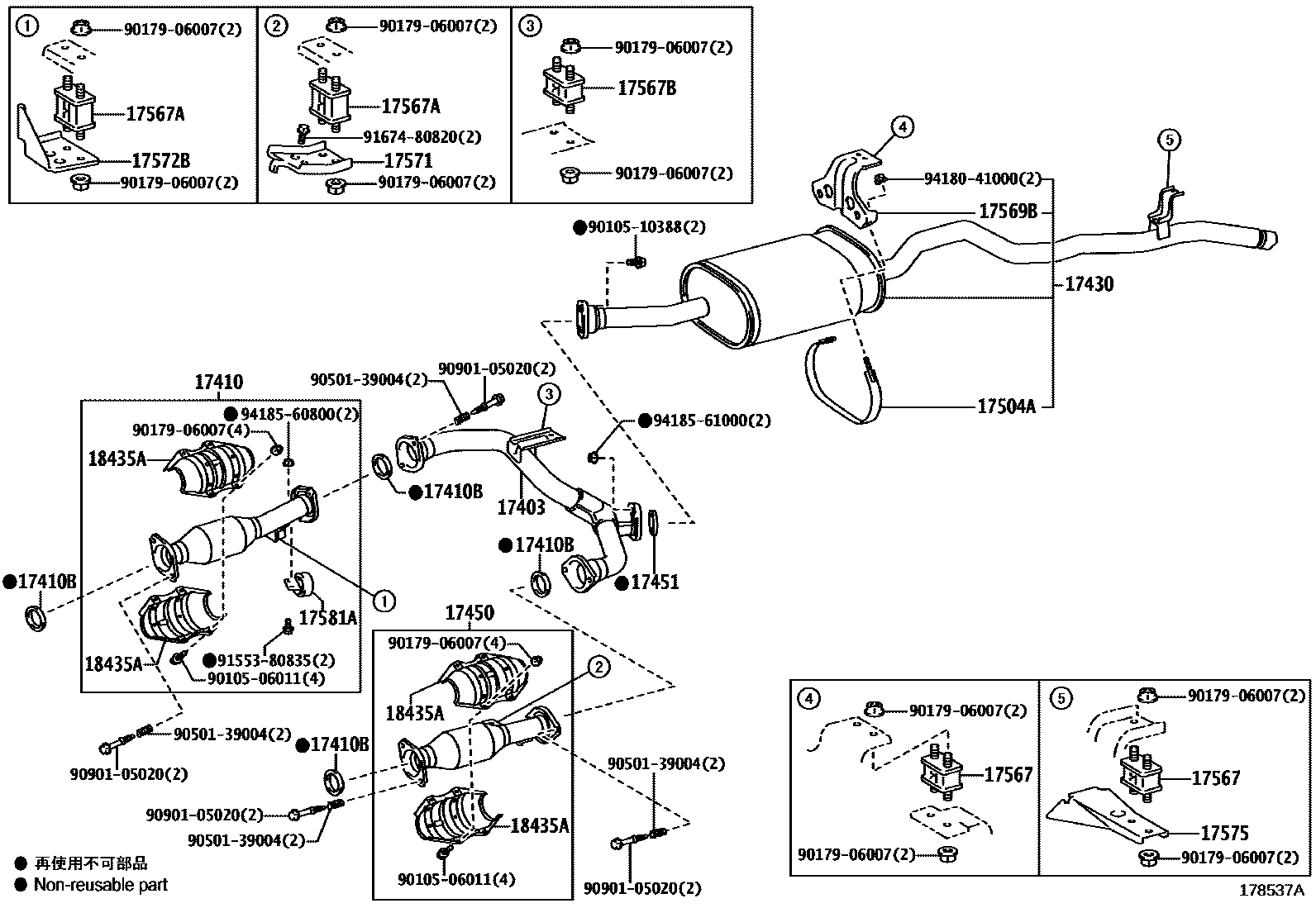

EXHAUST PIPE

0001 1 0002 1 0003 1

17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3

main17403-11100i1GDFTV..GDJ76202311

main17403-31160i1GRFE..GRJ7#201408-201507

17410PIPE ASSY, EXHAUST, FRONT

main17401-11710i1GDFTV..GDJ76202311

main17410-31K30i1GRFE..GRJ7#201408-201507

17410BGASKET, EXHAUST PIPE

main17451-22070i1GDFTV..GDJ76202311

main17451-28040×4i1GRFE..GRJ7#201408-201507

17430PIPE ASSY, EXHAUST, TAIL

main17405-11060i1GDFTV..GDJ76202311

main17405-31050i1GRFE..GRJ76201408-201507

main17405-61363i1GRFE..GRJ79201408-201507

17450PIPE ASSY, EXHAUST, NO.5

main17450-31200i1GRFE..GRJ7#201408-201507

17451GASKET, EXHAUST PIPE

main90917-06049i1GRFE..GRJ79201408-201507

main90917-06076i1GRFE..GRJ76; 1GRFE..GRJ79201408-201507

17504ACLAMP SUB-ASSY, EXHAUST PIPE

main17504-17010i1GRFE..GRJ76201408-201507

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-17020×2i1GRFE..GRJ76; 1GRFE..GRJ79201408-201507

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-17020i1GDFTV..GDJ76202311

main17567-66011×2i1GRFE..GRJ7#201408-201507

17567BCUSHION, EXHAUST PIPE SUPPORT, NO.3

main17567-17030i1GRFE..GRJ7#201408-201507

17569BSTAY, EXHAUST PIPE SUPPORT, NO.2

main17569-17010i1GRFE..GRJ76201408-201507

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-31240i1GRFE..GRJ7#201408-201507

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main51399-60050i1GRFE..GRJ7#201408-201507

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-60021i1GRFE..GRJ7#201408-201507

17581ADAMPER, EXHAUST PIPE

main17581-50140i1GRFE..GRJ7#201408-201507

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-50130×4i1GRFE..GRJ7#201408-201507

9010506011

main90105-06011

9010510388

main90105-10388

9017906007

main90179-06007

9050139004

main90501-39004

9090105020

main90901-05020

9155380835

main91553-80835

9167480820

main91674-80820

9418041000

main94180-41000

9418560800

main94185-60800

9418561000

main94185-61000

26 parts on this diagram · 3 diagrams in section
