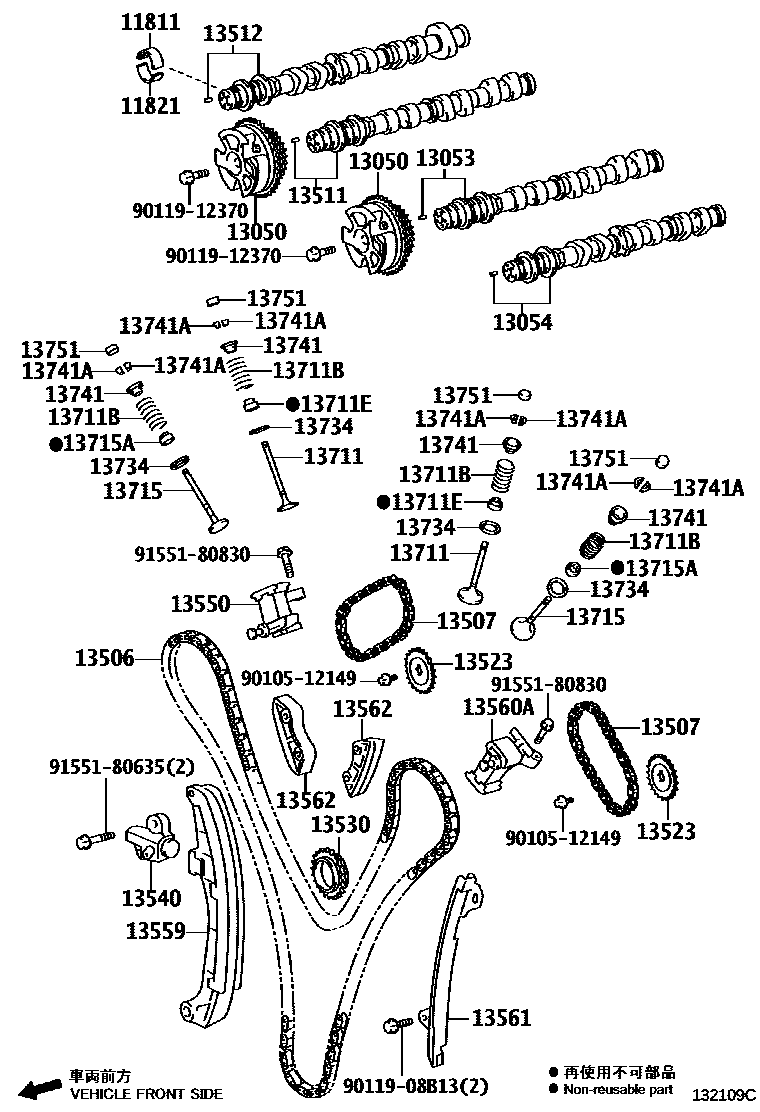

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
MARK 2
13050GEAR ASSY, CAMSHAFT TIMING
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13507CHAIN SUB-ASSY, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
9010512149
main90105-12149
9011908B13
main90119-08B13
9011912370
main90119-12370
9155180635
main91551-80635
9155180830
main91551-80830
31 parts on this diagram · 2 diagrams in section
