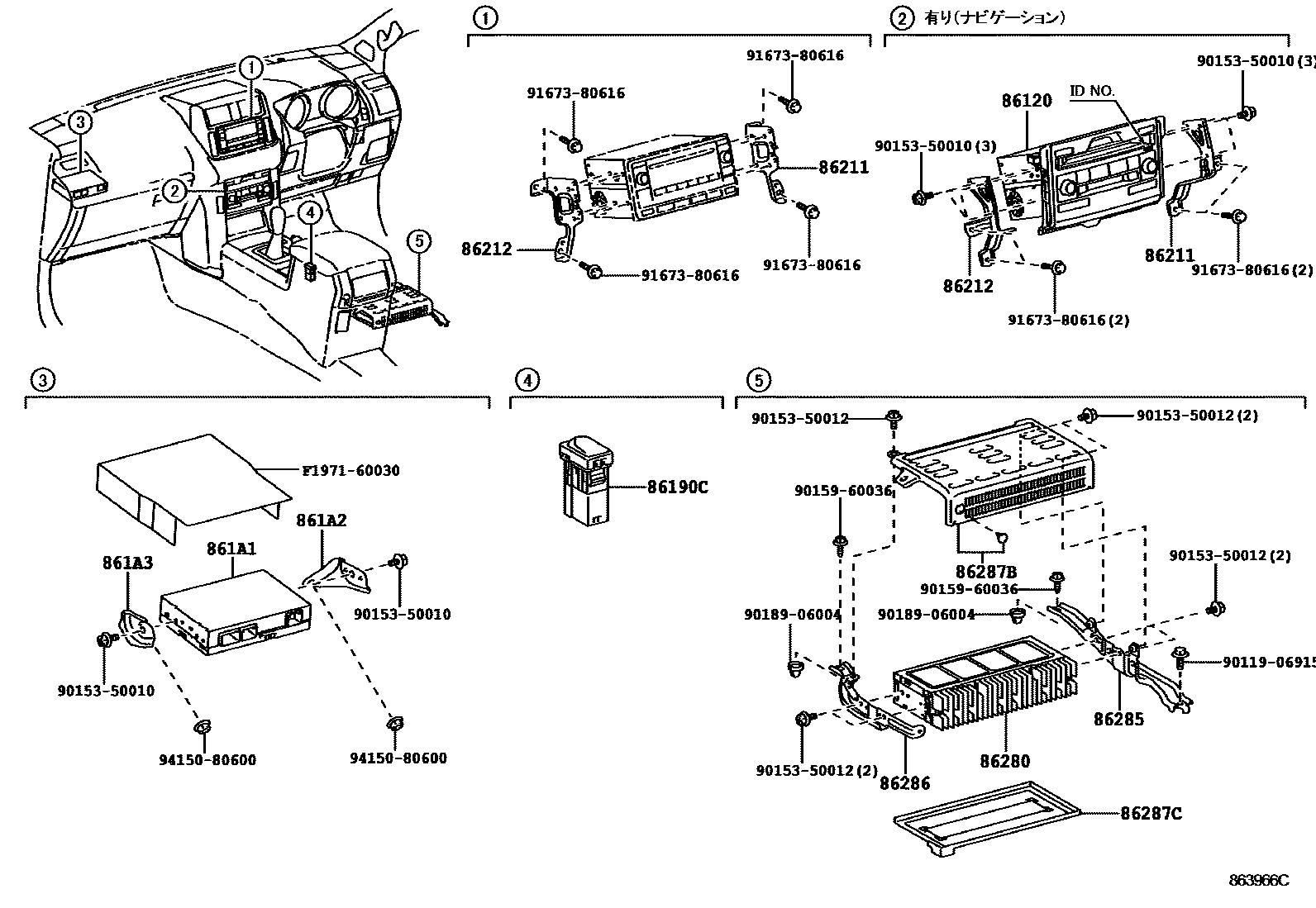

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������ 0004 1I-POD/VTR����������

86120RECEIVER ASSY, RADIO

main86120-60740iGRJ15#..TZ,TZG; TRJ150..07S200908-201308

main86120-60E40iGRJ150,TRJ150..TX200908-201308

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-60030iGRJ15#,TRJ150201308-201506

main86190-60040iGRJ15#,TRJ150200908-201308

861A1COMPUTER, MULTI-MEDIA INTERFACE

main861A0-77010iGRJ15#,TRJ150200908-201108

861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1

main861A2-60010iGRJ15#,TRJ150200908-201308

861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2

main861A3-60010iGRJ15#,TRJ150200908-201308

86211BRACKET, RADIO, NO.1

main86211-60410iGRJ15#; GRJ15#,TRJ150; TRJ150201308-201506

main86211-60260supersedes 86211-60270iGRJ15#,TRJ150200908-201308

86212BRACKET, RADIO, NO.2

main86212-60410iGRJ15#; GRJ15#,TRJ150; TRJ150201308-201506

main86212-60260supersedes 86212-60270iGRJ15#,TRJ150200908-201308

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-60410iGRJ15#,TRJ150200908-201308

main86280-60550iGRJ15#; TRJ150201308-201506

86285BRACKET, AMPLIFIER, NO.1

main86285-60170iGRJ15#,TRJ150200908-201308

main86285-60230iGRJ15#; TRJ150201308-201506

86286BRACKET, AMPLIFIER, NO.2

main86286-60080iGRJ15#,TRJ150200908-201308

main86286-60150iGRJ15#; TRJ150201308-201506

86287BCOVER, AMPLIFIER

main86287-60080iGRJ15#,TRJ150200908-201308

86287CCOVER, AMPLIFIER NO.2

main86287-60090iGRJ15#,TRJ150200908-201308

9011906915

main90119-06915

9015350010

main90153-50010

9015350012

main90153-50012

9015960036

main90159-60036

9018906004

main90189-06004

9167380616

main91673-80616

9415080600

main94150-80600

F197160030COVER, ECU WATER PROOF

mainF1971-60030

20 parts on this diagram · 4 diagrams in section
