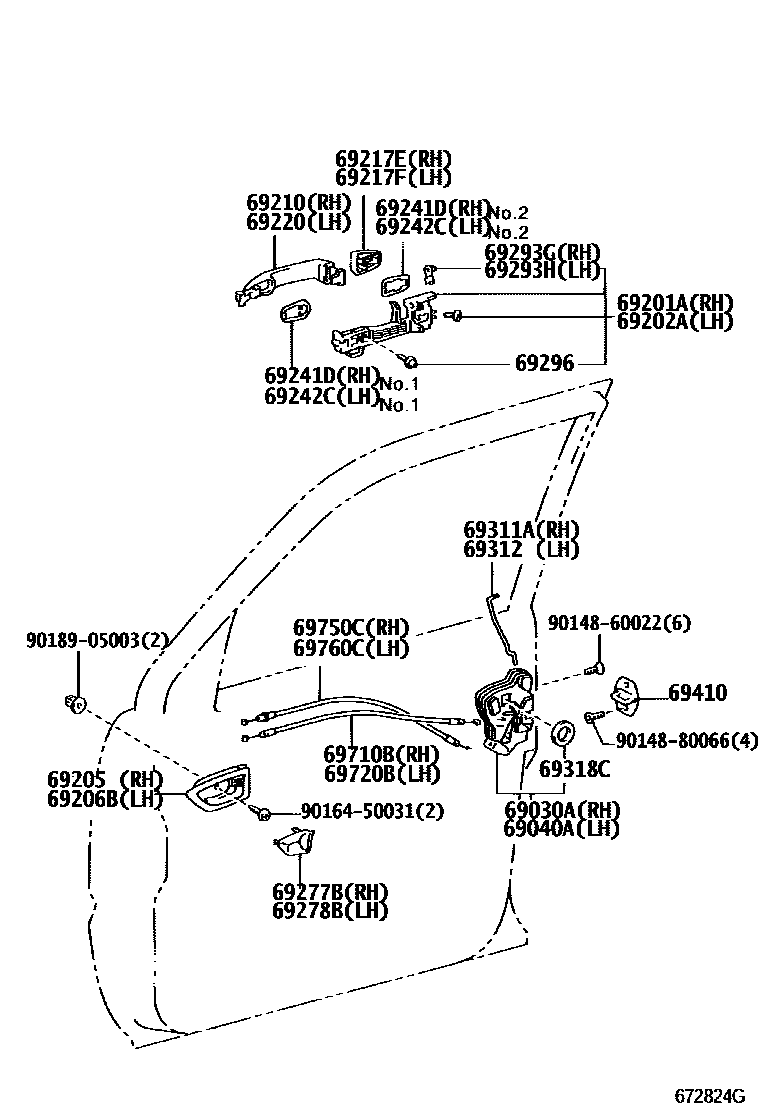

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-33241iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200209-200707

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-33271iKDJ120200209-200707

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-28010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-28010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-60100-A0iKDJ120..08S200209-200908

IVORY,TRIM0#

main69205-60100-A0iGRJ120,KDJ120,TRJ120..08S200408-200908

IVORY,TRIM00

main69205-60100-B0iKDJ120,TRJ120..05S;GRJ121,KDJ121,125,RZJ12#,TRJ125,VZJ12#200209-200908

MD.GRAY,TRIM1#

main69205-60100-B0iGRJ120,KDJ120,TRJ120..08S200408-200908

MD.GRAY,TRIM10

main69205-60100-C0iGRJ120,KDJ120,TRJ120..08S200408-200908

BLACK,TRIM00,10

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60100-A0iKDJ120,TRJ120..05S;GRJ121,KDJ121,125,RZJ12#,TRJ125,VZJ12#200209-200908

IVORY,TRIM0#

main69206-60100-A0iGRJ120,KDJ120,TRJ120..08S200408-200908

IVORY,TRIM00

main69206-60100-B0iGRJ120,KDJ120,TRJ120..08S200408-200908

MD.GRAY,TRIM10

main69206-60100-B0iKDJ120..08S200209-200908

MD.GRAY,TRIM1#

main69206-60100-C0iGRJ120,KDJ120,TRJ120..08S200408-200908

BLACK,TRIM00,10

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-28070-A2iGRJ120,KDJ120,TRJ120..08S200211-200908

WHITE,056

main69211-28070-A3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

WHITE PEARL CS.,070

main69211-28070-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

SILVER ME.,1D4

main69211-28070-B4iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DK.GRAY M.M.,1E9

main69211-28070-C1iKDJ121,RZJ120,VZJ121;KDJ120,125,RZJ125,VZJ125..05S200209-200707

BLACK,3Q8 ,587 ,8R4

main69211-28070-C1iKDJ120,VZJ120..08S200209-200707

BLACK,202 ,3Q8 ,587 ,8R4

main69211-28070-C1iGRJ120,TRJ120..08S200408-200908

BLACK,202

main69211-28070-D3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DARK RED MC.,3Q8

main69211-28070-E1iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

main69211-28070-F2iKDJ12#,RZJ12#,VZJ12#200209-200707

CHAMPAGNE M.M.,587

main69211-28070-G0iKDJ12#,RZJ12#,VZJ12#200209-200707

LT. GREEN M.M.,6T2

main69211-28070-J3iTRJ12#200209-200707

DARK BLUE M.M.,8R4

main69211-28070-J6iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

main69211-28070-R9iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-28010-A2iGRJ120,KDJ120,TRJ120..08S200211-200908

WHITE,056

main69217-28010-A3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

WHITE PEARL CS.,070

main69217-28010-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

SILVER ME.,1D4

main69217-28010-B4iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DK.GRAY M.M.,1E9

main69217-28010-C1iKDJ120,VZJ120..08S200209-200707

BLACK,202 ,3Q8 ,587 ,8R4

main69217-28010-C1iKDJ120,VZJ120..08S200209-200707

BLACK,3Q8 ,587 ,8R4

main69217-28010-C1iGRJ120,TRJ120..08S200408-200908

BLACK,202

main69217-28010-D3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DARK RED MC.,3Q8

main69217-28010-E1iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

main69217-28010-F2iKDJ12#,RZJ12#,VZJ12#200209-200707

CHAMPAGNE M.M.,587

main69217-28010-G0iKDJ12#,RZJ12#,VZJ12#200209-200707

LT. GREEN M.M.,6T2

main69217-28010-J3iKDJ12#,RZJ12#,VZJ12#200209-200707

DARK BLUE M.M.,8R4

main69217-28010-J6iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

main69217-28010-R9iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-60020-A0iGRJ120,KDJ120,TRJ120..08S200211-200908

WHITE,056

main69217-60020-A1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

WHITE PEARL CS.,070

main69217-60020-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

SILVER ME.,1D4

main69217-60020-B1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DK.GRAY M.M.,1E9

main69217-60020-C0iKDJ120,VZJ120..08S200209-200707

BLACK,3Q8 ,587 ,8R4

main69217-60020-C0iKDJ120,VZJ120..08S200209-200707

BLACK,202 ,3Q8 ,587 ,8R4

main69217-60020-C0iGRJ120,TRJ120..08S200408-200908

BLACK,202

main69217-60020-D1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DARK RED MC.,3Q8

main69217-60020-E1iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

main69217-60020-F0iTRJ12#200209-200707

CHAMPAGNE M.M.,587

main69217-60020-G1iKDJ12#,RZJ12#,VZJ12#200209-200707

LT. GREEN M.M.,6T2

main69217-60020-J2iKDJ12#,RZJ12#,VZJ12#200209-200707

DARK BLUE M.M.,8R4

main69217-60020-J5iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

main69217-60020-R5iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-28070-A2iGRJ120,KDJ120,TRJ120..08S200211-200908

WHITE,056

main69211-28070-A3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

WHITE PEARL CS.,070

main69211-28070-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

SILVER ME.,1D4

main69211-28070-B4iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DK.GRAY M.M.,1E9

main69211-28070-C1iKDJ121,RZJ120,VZJ121;KDJ120,125,RZJ125,VZJ125..05S200209-200707

BLACK,3Q8 ,587 ,8R4

main69211-28070-C1iKDJ120,VZJ120..08S200209-200707

BLACK,202 ,3Q8 ,587 ,8R4

main69211-28070-C1iGRJ120,TRJ120..08S200408-200908

BLACK,202

main69211-28070-D3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DARK RED MC.,3Q8

main69211-28070-E1iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

main69211-28070-F2iKDJ12#,RZJ12#,VZJ12#200209-200707

CHAMPAGNE M.M.,587

main69211-28070-G0iKDJ12#,RZJ12#,VZJ12#200209-200707

LT. GREEN M.M.,6T2

main69211-28070-J3iTRJ12#200209-200707

DARK BLUE M.M.,8R4

main69211-28070-J6iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

main69211-28070-R9iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-28060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

main69242-33030iGRJ12#,KDJ120,TRJ12#200705-200908

main69242-60030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200704

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69241-28060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

main69242-33030iGRJ12#,KDJ120,TRJ12#200705-200908

main69242-60030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200704

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69297-30030-A0iGRJ120,KDJ120,TRJ120..08S200408-200908

IVORY,TRIM00

main69297-30030-A0iKDJ120..08S200209-200908

IVORY,TRIM0#

main69297-30030-B4iGRJ120,KDJ120,TRJ120..08S200408-200908

MD.GRAY,TRIM10

main69297-30030-B4iKDJ120..08S200209-200908

MD.GRAY,TRIM1#

main69297-30030-C0iGRJ120,KDJ120,TRJ120..08S200408-200908

BLACK,TRIM00,10

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69298-30030-A0iGRJ120,KDJ120,TRJ120..08S200408-200908

IVORY,TRIM00

main69298-30030-A0iKDJ120..08S200209-200908

IVORY,TRIM0#

main69298-30030-B4iKDJ120,TRJ120..05S;GRJ121,KDJ121,125,RZJ12#,TRJ125,VZJ12#200209-200908

MD.GRAY,TRIM1#

main69298-30030-B4iGRJ120,KDJ120,TRJ120..08S200408-200908

MD.GRAY,TRIM10

main69298-30030-C0iGRJ120,KDJ120,TRJ120..08S200408-200908

BLACK,TRIM00,10

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

69296SCREW, DOOR INSIDE HANDLE

main69296-48010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-60040iKDJ120200209-200707

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-60040iKDJ120200209-200707

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iKDJ120200209-200707

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-60010iKDJ120200209-200707

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-60010iKDJ120200209-200707

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-60020iKDJ120200209-200707

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-60020iKDJ120200209-200707

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

29 parts on this diagram · 1 diagram in section
