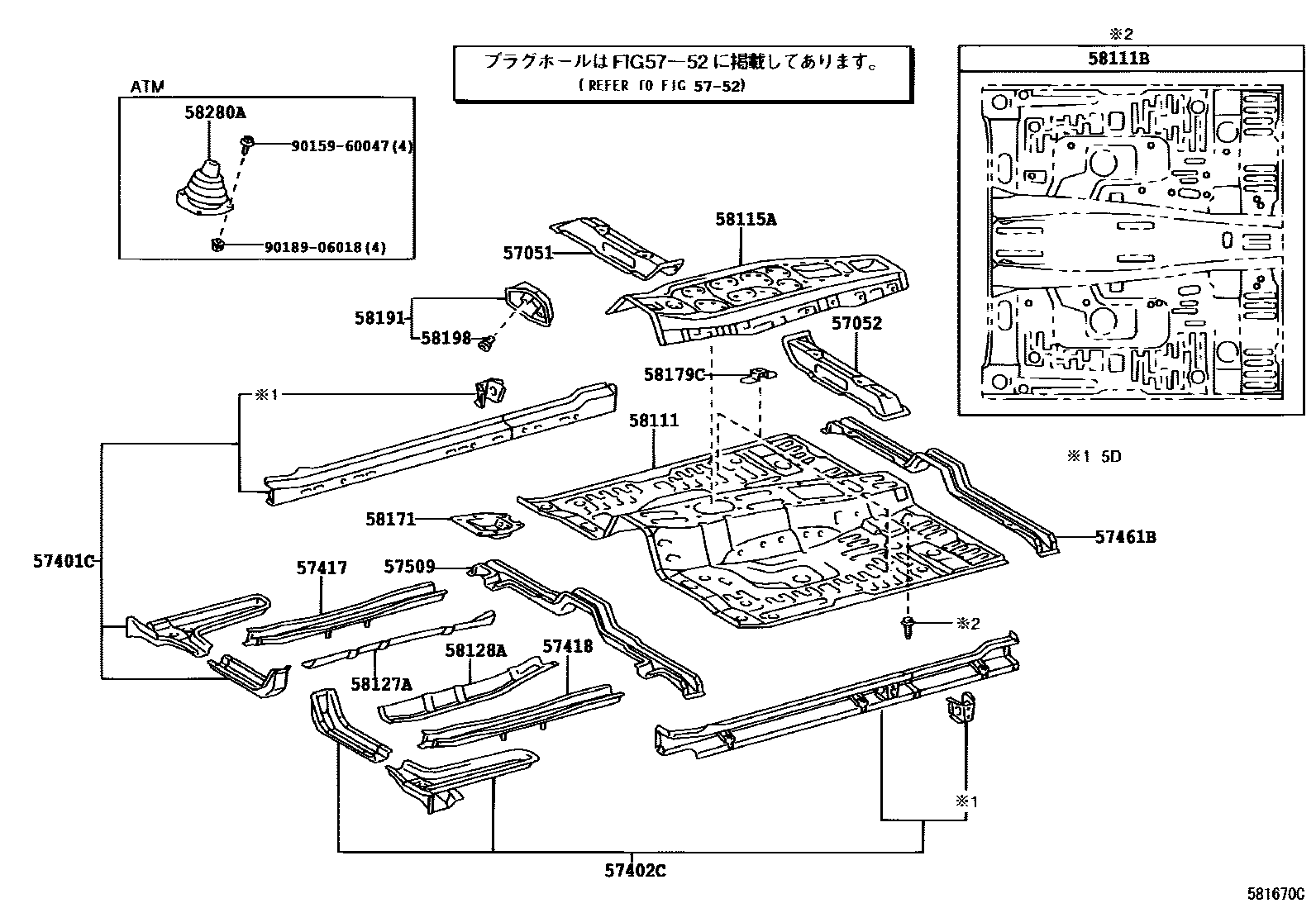

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1���������

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35050iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200807

main57051-35051iGRJ12#,TRJ12#200808

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35050iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200807

main57052-35051iGRJ12#,TRJ12#200808

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-35907iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209

main57401-60900iKDJ125,RZJ125,TRJ125,VZJ125200209

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-35908iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209

main57402-60900iKDJ125,RZJ125,TRJ125,VZJ125200209

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35050iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200603

main57417-35051iGRJ12#,KDJ120,TRJ12#200604

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-35060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200603

main57417-35061iGRJ12#,KDJ120,TRJ12#200604

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-35020iKDJ120200209-200707

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-35010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

5752HOLE PLUG

→ Go to FIG 57-52

58111PAN, FRONT FLOOR

main58111-6A330iKDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200411

main58111-6A331iGRJ12#,KDJ12#,TRJ12#,VZJ12#200412-200807

main58111-6A332iGRJ12#,TRJ12#; GRJ121200808

main58111-6A340iKDJ120,125,RZJ12#,VZJ120,125; KDJ120,125,RZJ12#,VZJ120..RX,TX; KDJ125,VZJ125..RZ200209-200311

main58111-6A341iGRJ121,VZJ121200504-200608

main58111-6A342iGRJ121200808

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-60010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200808

main58115-60011iGRJ12#,TRJ12#200809

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-35010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-35010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200603

main58128-35011iGRJ12#,KDJ120,TRJ12#200604

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60020iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

58179CBRACKET, CLAMP FLOOR

main58179-60010×2iGRJ121,KDJ121,125,VZJ121,125..RZ,TZ200209

58191FOOTREST, FRONT FLOOR

main58190-60100iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

58198CLIP, FOOTREST

main58198-20210×2iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

58280ABOOT ASSY, SHIFT LEVER

main58280-60240iKDJ120200209-200707

main58280-60250iRZJ12#,TRJ12#200209

9015960047

main90159-60047

9018906018

main90189-06018

21 parts on this diagram · 2 diagrams in section
