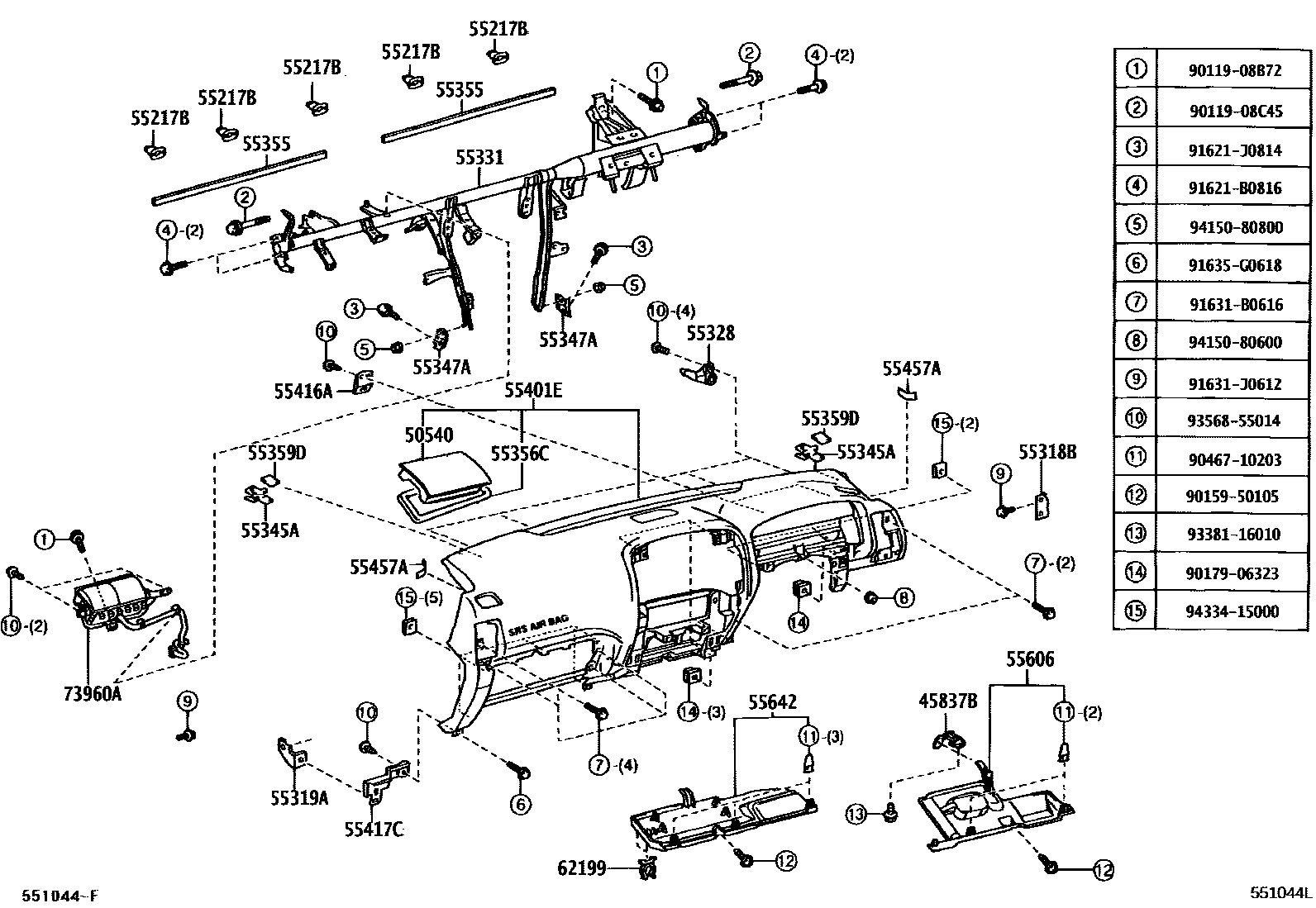

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

45837BBRACKET, STEERING LOWER TUBE, NO.1

main45837-35040iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

50540DO0R ASSY, AIRBAG PASSENGER

main50540-60040iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

55217BRETAINER, DASH PANEL SILENCER

main55217-35020×5iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200209

55318BEXTENSION, INSTRUMENT PANEL

main55318-60070iKDJ120200209-200707

55319AEXTENSION, INSTRUMENT PANEL, NO.2

main55319-60050iKDJ120200209-200707

main55319-60070iGRJ121,KDJ121,VZJ121200209-200608

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60070×4iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-60190iKDJ120200209-200707

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-35020×2iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200209

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-35050×2iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200209

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-60150×2iKDJ12#,RZJ12#,VZJ12#200209-200404

main55355-60160iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200404

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-35040iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-35020×2iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60906-C0supersedes 55401-60905-C0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200608

main55401-60906-E0supersedes 55401-60905-E0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200608

main55401-60912-C0supersedes 55401-60911-C0iGRJ12#,KDJ120,TRJ12#200608-200710

main55401-60912-E0supersedes 55401-60911-E0iGRJ12#,KDJ120,TRJ12#200608-200710

main55401-60928-C0supersedes 55401-60927-C0iGRJ12#,TRJ12#200710-200908

main55401-60928-E0supersedes 55401-60927-E0iGRJ12#,TRJ12#200710-200908

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

55417CBRACKET, INSTRUMENT PAD, NO.3

main55417-60030iKDJ120200209-200707

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-35010×2iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-60030-A0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200608

IVORY,TRIM0#

main55606-60030-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200608

MD.GRAY,TRIM1#

main55606-60070-A0iGRJ12#,KDJ120,TRJ12#200608-200908

IVORY,TRIM0#

main55606-60070-B0iGRJ12#,KDJ120,TRJ12#200608-200908

MD.GRAY,TRIM1#

55642COVER, INSTRUMENT PANEL UNDER, NO.2

main55607-35060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200607

main55607-60090iKDJ120200608-200707

main55607-60020iKDJ120,RZJ120,VZJ120..08S200209-200311

62199HOLDER, FUSEE

main90468-25003×2iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60100iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

9011908B72

main90119-08B72

9011908C45

main90119-08C45

9015950105

main90159-50105

9017906323

main90179-06323

9046710203

main90467-10203

91621B0816

main91621-B0816

91621J0814

main91621-J0814

91631B0616

main91631-B0616

91631J0612

main91631-J0612

91635G0618

main91635-G0618

9338116010

main93381-16010

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

9433415000

main94334-15000

35 parts on this diagram · 4 diagrams in section
