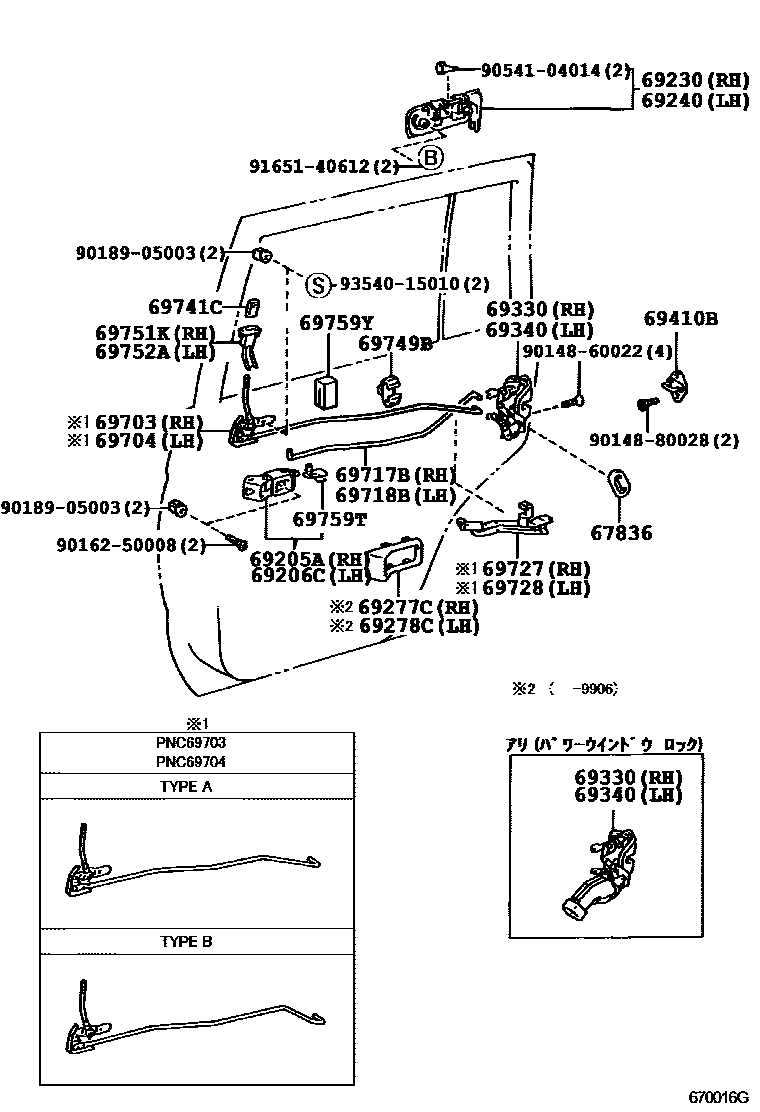

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040×2iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-10070-B1iKZJ95..TJ199604-199801

MD.MOON MIST,TRIM1#

main69205-10070-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

OAK,TRIM4#

main69207-60020-B0iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

MD.MOON MIST,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-10070-B1iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.MOON MIST,TRIM1#

main69206-10070-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

OAK,TRIM4#

main69208-60020-B0iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

MD.MOON MIST,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-60050iVZJ95..TZ;KZJ95..TS,TX,TZ199604-199906

main69230-60060iKZJ95..TJ,TS,TX199604-199801

main69230-60100iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-60050iVZJ95..TZ;KZJ95..TS,TX,TZ199604-199906

main69240-60060iKZJ95..TJ,TS,TX199604-199801

main69240-60100iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-60020-B0iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

MD.MOON MIST,TRIM1#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69277-60020-B0iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

MD.MOON MIST,TRIM1#

69330LOCK ASSY, REAR DOOR, RH

main69050-60020iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

main69330-60070iKZJ95..TJ199604-199801

69340LOCK ASSY, REAR DOOR, LH

main69060-60020iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

main69340-60070iKZJ95..TJ199604-199801

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070×2iKZJ95,RZJ95,VZJ95199604-199906

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-60010iKZJ95,RZJ95,VZJ95199604-199705

main69703-60011iKZJ95,RZJ95,VZJ95199705-199906

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-60020iKZJ95,RZJ95,VZJ95199604-199705

main69704-60021iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-60030iKZJ95,RZJ95,VZJ95199604-199705

main69713-60031iKZJ95,RZJ95,VZJ95199705-199906

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-60030iKZJ95,RZJ95,VZJ95199604-199705

main69714-60031iKZJ95,RZJ95,VZJ95199705-199906

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-60020iKZJ95,RZJ95,VZJ95199604-199705

main69727-60021iKZJ95,RZJ95,VZJ95199705-199906

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-60020iKZJ95,RZJ95,VZJ95199604-199705

main69728-60021iKZJ95,RZJ95,VZJ95199705-199906

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-12040-B1×2iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.MOON MIST,TRIM1#

main69741-12040-E0×2iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

OAK,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040×2iKZJ95,RZJ95,VZJ95199604-199906

69751KHOLDER, DOOR LOCK CONTROL KNOB, RH

main69751-60010iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

69752AHOLDER, DOOR LOCK CONTROL KNOB, LH

main69752-60010iKZJ95,RZJ95,VZJ95199604-199906

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

main69759-20060iKZJ95..TJ199604-199801

main69759-20070×2iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

main69759-24070iKZJ95,RZJ95,VZJ95..TS,TX,TZ199604-199906

69759YSILENCER, REAR DOOR LOCK LINK

main69759-12060×2iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

9014860022

main90148-60022

9014880028

main90148-80028

9016250008

main90162-50008

9018905003

main90189-05003

9054104014

main90541-04014

9165140612

main91651-40612

9354015010

main93540-15010

29 parts on this diagram · 1 diagram in section
