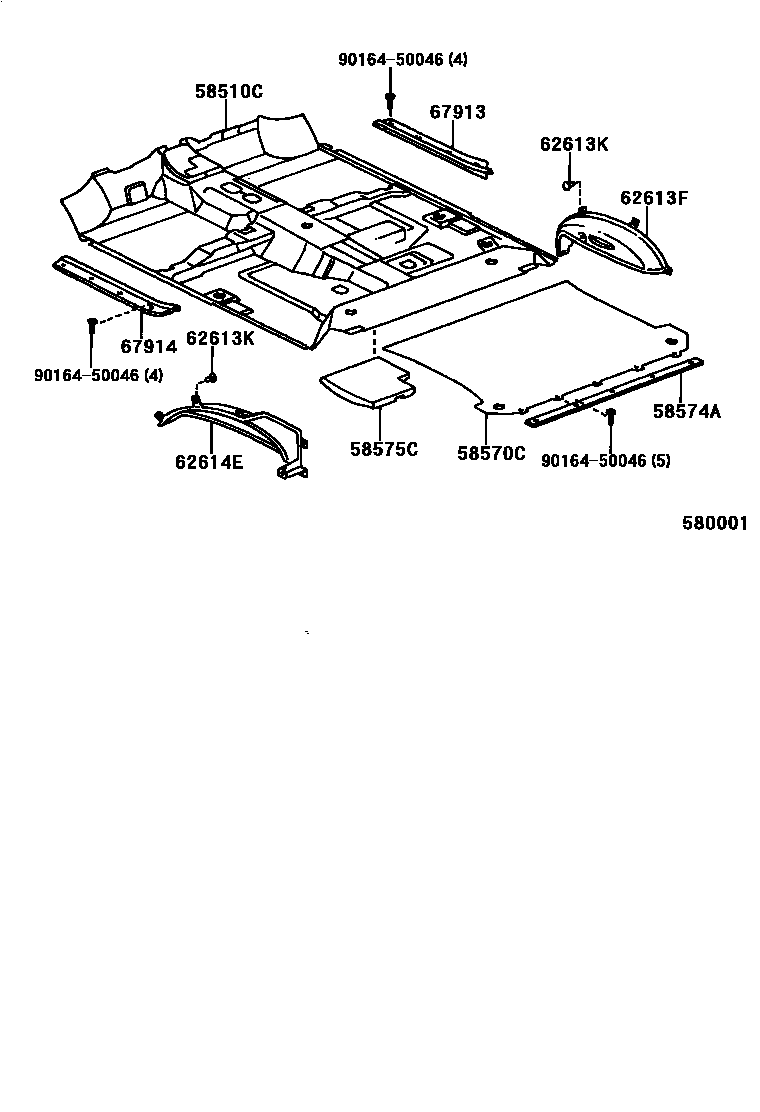

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-6A340-B0iKZJ90,VZJ90..RZ199604-199701

main58510-6A341-B0iKZJ90,VZJ90..RZ199701-199906

main58510-6A342-B0iKDJ90,KZJ90,VZJ90..RZ199906-200211

main58510-6A342-E0iKDJ90,KZJ90,VZJ90..RZ199906-200211

main58510-6A350-B0iKZJ90,VZJ90..RZ199604-199701

GRAY,TRIM1#

main58510-6A351-B0iKZJ90,VZJ90..RZ199701-199906

GRAY,TRIM1#

main58510-6A352-B0iKDJ90,KZJ90,VZJ90..RZ199906-200211

GRAY,TRIM1#

main58510-6A352-E0iKDJ90,KZJ90,VZJ90..RZ199906-200211

OAK,TRIM4#

main58510-6A360-B0iKZJ90..RJ,RS,RX199604-199701

GRAY,TRIM1#

main58510-6A361-B0iKZJ90,RZJ90..RJ,RS,RX199701-199906

GRAY,TRIM1#

main58510-6A361-E0iKDJ90,KZJ90,RZJ90..RS,RX199906-200211

OAK,TRIM4#

main58510-6A460-B0iKZJ95..08S..(TJ,TS,TX)199604-199701

GRAY,TRIM1#

main58510-6A461-B0iKZJ95,RZJ95,VZJ95..08S..(TJ,TS,TX)199701-199906

GRAY,TRIM1#

main58510-6A462-B0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199906-200211

GRAY,TRIM1#

main58510-6A462-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199906-200211

OAK,TRIM4#

main58510-6A490-B0iKZJ95,VZJ95..TZ199604-199701

GRAY,TRIM1#

main58510-6A491-B0iKZJ95,VZJ95..TZ199701-199906

GRAY,TRIM1#

main58510-6A492-B0iKDJ95,KZJ95,VZJ95..TZ199906-200211

GRAY,TRIM1#

main58510-6A492-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

OAK,TRIM4#

main58510-6A500-B0iKZJ95..08S..(TJ,TS,TX)199604-199701

main58510-6A501-B0iKZJ95,RZJ95,VZJ95..08S..(TJ,TS,TX)199701-199906

main58510-6A502-B0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199906-200211

main58510-6A502-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199906-200211

main58510-6A520-B0iKZJ95,VZJ95..TZ199604-199701

main58510-6A521-B0iKZJ95,VZJ95..TZ199701-199906

main58510-6A522-B0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main58510-6A522-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main58510-6A600-B0iKZJ95..05S199604-199701

GRAY,TRIM1#

main58510-6A601-B0iKZJ95,RZJ95..05S199701-199906

GRAY,TRIM1#

main58510-6A602-B0iKDJ95,KZJ95,RZJ95..05S199906-200211

GRAY,TRIM1#

main58510-6A602-E0iKDJ95,KZJ95,RZJ95..05S199906-200211

OAK,TRIM4#

main58510-6A610-B0iKZJ95..05S199604-199701

main58510-6A611-B0iKZJ95,RZJ95..05S199701-199906

main58510-6A612-B0iKDJ95,KZJ95,RZJ95..05S199906-200211

main58510-6A612-E0iKDJ95,KZJ95,RZJ95..05S199906-200211

main58510-6B060-B0iKZJ90..RJ,RS,RX199604-199701

main58510-6B061-B0iKZJ90,RZJ90..RJ,RS,RX199701-199906

main58510-6B061-E0iKDJ90,KZJ90,RZJ90..RS,RX199906-200211

58570CCARPET ASSY, REAR FLOOR

main58570-60270-B0iKZJ95,VZJ95..TZ199604-199801

main58570-60300-B0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199906-200211

main58570-60300-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TS,TX)199906-200211

main58570-60310-B0iKZJ90,RZJ90..RJ,RS,RX199604-199906

GRAY,TRIM1#

main58570-60310-E0iKDJ90,KZJ90,RZJ90..RS,RX199906-200211

OAK,TRIM4#

main58570-60320-B0iKZJ95,VZJ95..TZ199604-199906

main58570-60321-B0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main58570-60321-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main58570-60330-B0iKZJ95,RZJ95,VZJ95..08S..TX199801-199906

main58570-60330-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..TX199906-200211

main58570-60340-B0iKZJ95,RZJ95,VZJ95..TX199604-199906

GRAY,TRIM1#

main58570-60340-E0iKDJ95,KZJ95,RZJ95,VZJ95..TX199906-200211

OAK,TRIM4#

main58570-60380-B0iKZJ90,VZJ90..RZ199604-199906

GRAY,TRIM1#

main58570-60381-B0iKDJ90,KZJ90,VZJ90..RZ199906-200211

GRAY,TRIM1#

main58570-60381-E0iKDJ90,KZJ90,VZJ90..RZ199906-200211

OAK,TRIM4#

main58570-60410-B0iKZJ95,VZJ95..TZ199604-199801

GRAY,TRIM1#

main58570-60450-B0iKZJ95,VZJ95..TZ199604-199906

main58570-60451-B0iKDJ95,KZJ95,VZJ95..TZ199906-200211

main58570-60451-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60030-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MD.MOON MIST,TRIM1#

main58574-60030-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

58575CPAD, FRONT FLOOR, FRONT

main58575-60010iKZJ9#,RZJ9#,VZJ9#199604-199906

62613FCOVER, QUARTER WHEEL HOUSE, RH

main62613-60280-B0iKZJ95,RZJ95,VZJ95..08S199604-199906

main62613-60280-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S199906-200211

main62613-60410-B0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.MOON MIST,TRIM1#

main62613-60410-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

main62613-60420-B0iKZJ95,RZJ95,VZJ95..TX,TZ199604-199906

MD.MOON MIST,TRIM1#

main62613-60420-E0iKDJ95,KZJ95,RZJ95,VZJ95..TX,TZ199906-200211

OAK,TRIM4#

62613KCLIP (FOR QUARTER WHEEL HOUSE COVER)

main90467-05021-B1×9iKDJ90,KZJ9#,RZJ90,VZJ90..RS,RX,RZ,TS; KZJ95..TX,TZ;KDJ95,RZJ95,VZJ95199906-200211

LT.BLUISH GRAY,TRIM1#; LT.BLUISH GRAY,TRIM11

main90467-05021-B3×9iKZJ95..TX,TZ;KDJ95,RZJ95,VZJ95199906-200211

MD.MOON MIST,TRIM11

main90467-05021-B4×9iKZJ9#,RZJ95,VZJ95..RJ,TJ,TS,TX,TZ; KZJ90,RZJ90,VZJ90..RS,RX,RZ199604-199906

MOON MIST,TRIM1#; MOON MIST,TRIM10

main90467-05021-E1×9iKDJ90,KZJ9#,RZJ90,VZJ90..RS,RX,RZ,TS; KZJ95..TX,TZ;KDJ95,RZJ95,VZJ95199906-200211

MD.OAK,TRIM4#; MD.OAK,TRIM40

main90467-05021-E6×9iKZJ95..TX,TZ;KDJ95,RZJ95,VZJ95199906-200211

OAK,TRIM40

62614ECOVER, QUARTER WHEEL HOUSE, LH

main62614-60350-B0iKDJ95,KZJ95,RZJ95,VZJ95..08S199906-200211

main62614-60350-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S199906-200211

main62614-60360-B0iKZJ90,RZJ90,VZJ90199604-199906

MD.MOON MIST,TRIM1#

main62614-60360-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

main62614-60370-B0iKZJ95,RZJ95,VZJ95..TX,TZ199604-199906

MD.MOON MIST,TRIM1#

main62614-60370-E0iKDJ95,KZJ95,RZJ95,VZJ95..TX,TZ199906-200211

OAK,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-60020-B0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

MD.MOON MIST,TRIM1#

main67913-60020-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

OAK,TRIM4#

main67913-60030-B0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

MD.MOON MIST,TRIM1#

main67913-60030-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-60010-B0iKZJ95,RZJ95,VZJ95199604-199906

MD.MOON MIST,TRIM1#

main67914-60010-E0iKDJ95,KZJ95,RZJ95,VZJ95199906-200211

OAK,TRIM4#

main67914-60020-B0iKZJ90,RZJ90,VZJ90199604-199906

MD.MOON MIST,TRIM1#

main67914-60020-E0iKDJ90,KZJ90,RZJ90,VZJ90199906-200211

OAK,TRIM4#

9016450046

main90164-50046

10 parts on this diagram · 2 diagrams in section
