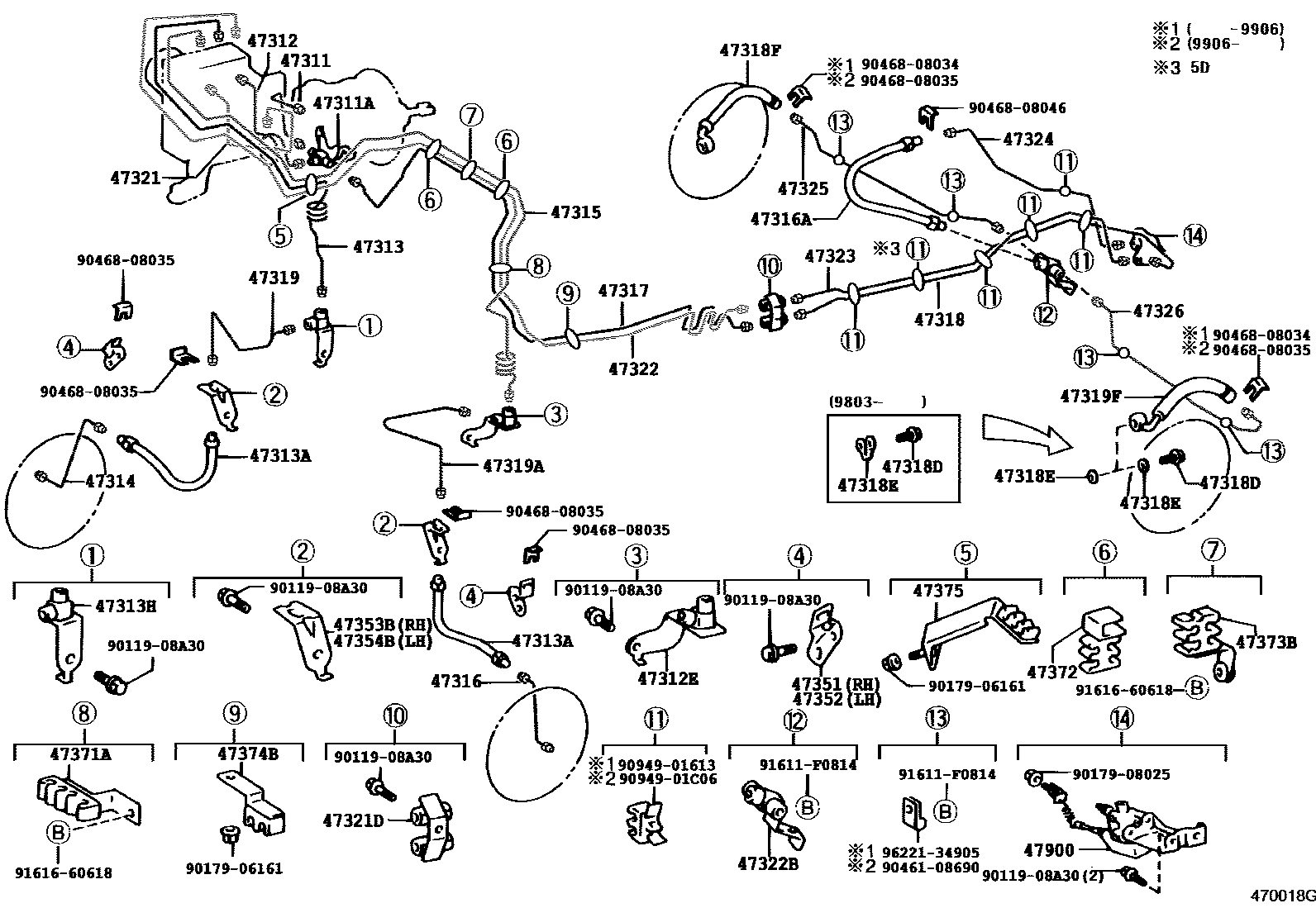

BRAKE TUBE & CLAMP

47311TUBE, FRONT BRAKE, NO.1

main47311-60490199604-200211

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-13021199604-200211

47312TUBE, FRONT BRAKE, NO.2

main47312-60870199604-200211

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12040199604-200211

47313TUBE, FRONT BRAKE, NO.3

main47313-3D020199604-200201

main47313-3D021200201-200211

main47313-60322199906-200211

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02862199604-199906

main90947-02B14199906-200211

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90904-12041199604-200211

47314TUBE, FRONT BRAKE, NO.4

main47314-35330199604-200211

47315TUBE, FRONT BRAKE, NO.5

main47315-35280199604-199906

main47315-60412199906-200211

main47315-60442199906-200211

47316TUBE, FRONT BRAKE, NO.6

main47316-35250199604-200211

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02B15199604-200008

main90947-02C59200008-200211

47317TUBE, FRONT BRAKE, NO.7

main47317-60080199604-200211

47318TUBE, FRONT BRAKE, NO.8

main47318-35090199604-199801

main47318-35091199801-199906

main47318-60100199604-199801

main47318-60101199801-199906

main47318-60111199906-200211

main47318-60121199906-200211

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015199604-199803

main90401-10058199803-200211

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010199604-199803

main47389-50020199803-200211

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02614199604-199906

main90947-02A07199906-200211

main90947-02A09199906-200211

47319TUBE, FRONT BRAKE, NO.9

main47313-3D050199604-200211

47319ATUBE, FRONT BRAKE, NO.10

main47315-35320199604-200211

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02615199604-199906

main90947-02A08199906-200211

main90947-02A10199906-200211

47321TUBE, REAR BRAKE, NO.1

main47321-60210199604-200211

main47321-60261199906-200211

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10166199604-200211

47322TUBE, REAR BRAKE, NO.2

main47322-35720199604-200211

main47322-60811199906-200211

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10236200008-200211

main90413-10263199604-200008

main90413-10295200008-200211

main90904-12077199906-200008

47323TUBE, REAR BRAKE, NO.3

main47323-35160199604-199801

main47323-35161199801-199906

main47323-35220200008-200211

main47323-60600199604-199801

main47323-60601199801-199906

main47323-60611199906-200211

main47323-60621199906-200211

main47323-60631199906-200211

main47323-60641199906-200008

47324TUBE, REAR BRAKE, NO.4

main47324-35240199604-199801

main47324-35241199801-199906

main47324-35280200008-200211

main47324-60271199906-200008

main47324-60281199906-200211

main47324-60291199906-200211

47325TUBE, REAR BRAKE, NO.5

main47325-60190199604-199906

main47325-60211199906-200008

main47325-60270200008-200211

47326TUBE, REAR BRAKE, NO.6

main47326-60191199906-200008

main47326-60201199906-200008

main47326-60210199604-199906

main47326-60290200008-200211

main47326-60310200008-200211

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35270199604-200211

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35310199604-200211

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47351-60250199906-200211

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-35110199604-200211

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-35100199604-200211

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35300199604-199906

main47371-60140199906-200211

47372CLAMP, BRAKE TUBE, NO.2

main47372-35150199604-200211

47373BCLAMP, BRAKE TUBE, NO.3

main47373-35090199604-200211

47374BCLAMP, BRAKE TUBE, NO.4

main47374-35030199604-200211

47375CLAMP, BRAKE TUBE, NO.5

main47375-35170199604-199906

main47375-60010199906-200211

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-60220199604-199801

main47900-60221199801-200209

main47900-60222200209-200211

main47900-60240199604-199801

main47900-60241199801-200209

main47900-60242200209-200211

9011908A30

main90119-08A30

9017906161

main90179-06161

9017908025

main90179-08025

9046108690

main90461-08690

9046808034

main90468-08034

9046808035

main90468-08035

9046808046

main90468-08046

9094901613

main90949-01613

9094901C06

main90949-01C06

91611F0814

main91611-F0814

9161660618

main91616-60618

9622134905

main96221-34905

50 parts on this diagram · 3 diagrams in section
