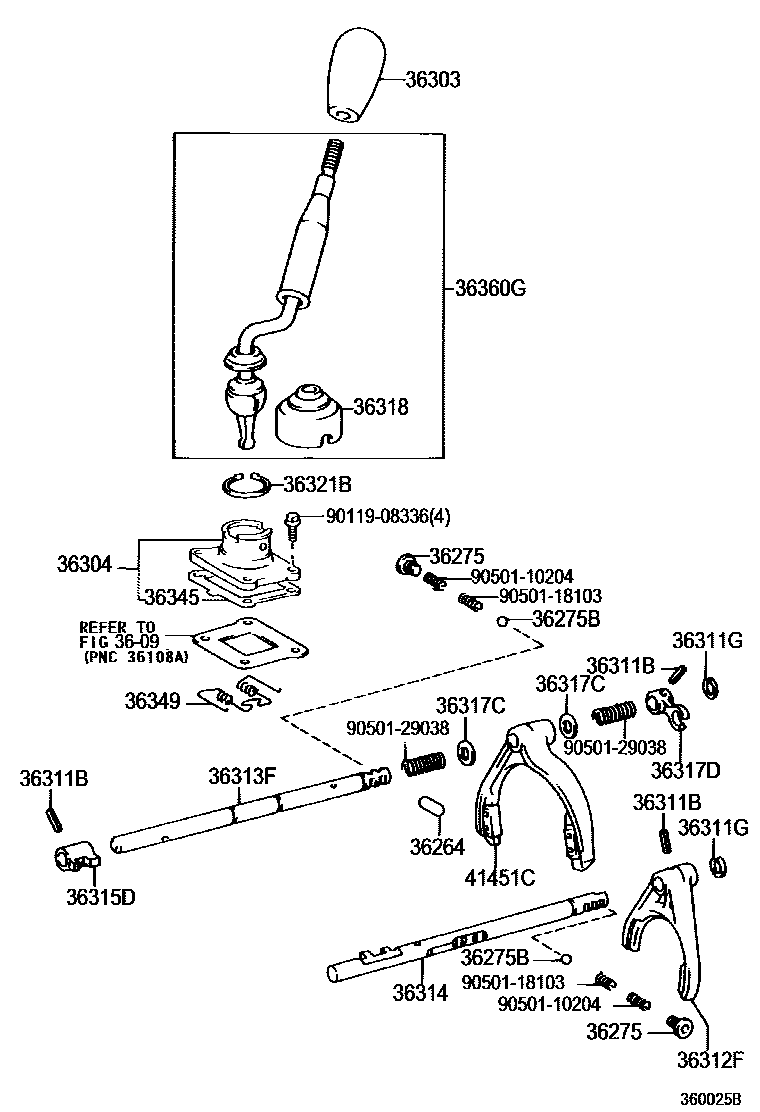

TRANSFER LEVER & SHIFT ROD

0001 1 0004 1 0006 1��(ACTIVE TRC OR VSC)

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iKZJ9#,RZJ9#,VZJ9#199604-199906

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014iKDJ9#..ATM..(RX,RZ,TX,TZ)200008-200211

36275BBALL, SHIFT DETENT

main90360-10003×3iVZJ90..MTM199910-200209

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60260-C0iKZJ9#,RZJ9#,VZJ9#199604-199906

BLACK,TRIM1#

main36303-60270-C0iVZJ9#..ATM199906-200209

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-60030iVZJ9#;KZJ9#..MTM199604-199906

main36304-60040iKDJ9#,KZJ9#,RZJ9#..ATM199906-200211

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×3iKZJ9#,RZJ9#..ATM; VZJ9#;KZJ9#..MTM199604-199906

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002×2iKZJ9#,RZJ9#..ATM; VZJ9#;KZJ9#..MTM199604-199906

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040iVZJ90..ATM;KDJ9#,KZJ9#,RZJ9#,VZJ95199906-200211

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-60110iKDJ9#,KZJ9#,RZJ9#..ATM199906-200211

main36313-60120iVZJ9#..ATM;KDJ9#,KZJ9#..MTM199906-200211

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60060iKDJ9#,KZJ9#,RZJ9#..ATM199906-200211

main36314-60070iVZJ9#..ATM;KDJ9#,KZJ9#..MTM199906-200211

main36314-60080iVZJ9#..ATM199906-200209

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-60020iKZJ9#,RZJ9#,VZJ9#199604-199906

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020×2iKZJ9#,RZJ9#..ATM; VZJ9#;KZJ9#..MTM199604-199906

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iKZJ9#,RZJ9#,VZJ9#199604-199906

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iKZJ9#,RZJ9#,VZJ9#199604-199906

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iKZJ9#,RZJ9#,VZJ9#199604-199906

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iKZJ9#,RZJ9#..ATM199604-199906

main36345-35050iVZJ9#;KZJ9#..MTM199604-199906

36349SPRING, TRANSFER SELECT RETURN

main36349-60010iVZJ9#..ATM;KDJ9#,KZJ9#..MTM199906-200211

main36349-60020iKDJ9#,KZJ9#,RZJ9#..ATM199906-200211

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-60500iKZJ9#..MTM199604-199609

main36360-60501iKZJ9#..MTM199609-199906

main36360-60520iKZJ9#,VZJ9#..ATM199604-199609

main36360-60521iKZJ9#,VZJ9#..ATM199609-199906

main36360-60540iVZJ90..MTM199604-199906

main36360-60570iRZJ9#199704-199906

main36360-60580iVZJ9#..ATM199906-200209

41451CFORK, DIFFERENTIAL LOCK SHIFT

main41451-60030iKZJ9#,RZJ9#,VZJ9#199604-199906

9011908336

main90119-08336

9050110204

main90501-10204

9050118103

main90501-18103

9050129038

main90501-29038

24 parts on this diagram · 3 diagrams in section
