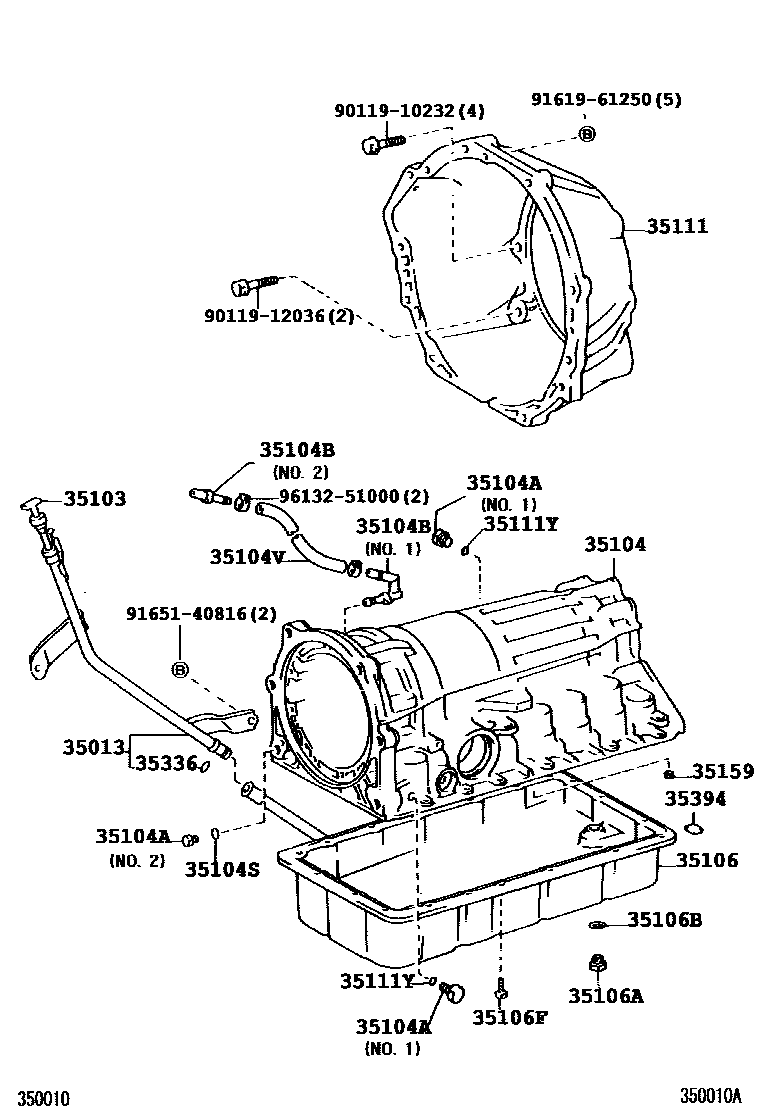

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A343F 0002 1A343F 0003 1A343F 0004 1A343F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-34060iVZJ9#..ATM199807-199906

main35013-35280iRZJ9#199704-199906

main35013-35300iVZJ9#..ATM199604-199807

main35013-35310iKZJ9#..ATM199906-200008

main35013-35350iRZJ9#199906-200209

main35013-60210iVZJ9#..ATM199906-200008

main35013-60220iKDJ9#..ATM200008-200211

main35013-60230iVZJ9#..ATM200008-200209

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-34060iVZJ9#..ATM199807-199906

main35103-35340iRZJ9#199704-199906

main35103-35360iVZJ9#..ATM199604-199807

main35103-35370iKZJ9#..ATM199604-199906

main35103-35450iKDJ9#..ATM200008-200211

main35103-60160iVZJ9#..ATM199906-200209

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-35011iKDJ9#,KZJ9#,RZJ9#..ATM199906-200211

main35104-60170iVZJ9#..ATM199906-200209

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iKZJ9#..ATM; RZJ9#,VZJ9#..ATM199604-199906

main90341-14011iKDJ9#,KZJ9#..ATM199906-200211

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKDJ9#,KZJ9#,RZJ9#..ATM199906-200211

main90930-03099iKDJ9#..ATM199906-200012

main90930-03116iVZJ9#..ATM199604-199906

main90930-03168iKDJ9#..ATM200012-200211

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-11006iKDJ9#,KZJ9#..ATM199906-200211

35104VHOSE (FOR BREATHER PLUG)

main90445-11118iKZJ9#,RZJ9#..ATM199604-199906

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-35070iRZJ9#199704-199906

main35106-35110iVZJ9#..ATM199906-200209

main35106-35140iKZJ9#..ATM199604-199906

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

main35178-50010iVZJ9#..ATM199906-200209

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iKDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199906-200211

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35060iVZJ9#..ATM199604-199906

main35111-35070iRZJ9#199906-200209

main35111-35090iKZJ9#..ATM199604-199906

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

35159GASKET, BRAKE DRUM

main35159-30010iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

9011910232

main90119-10232

9011912036

main90119-12036

9161961250

main91619-61250

9165140816

main91651-40816

9613251000

main96132-51000

21 parts on this diagram · 4 diagrams in section
