REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85110-90K05iLJ7#199004-199208

main85110-90K06iHZJ7#,PZJ7#..HT199001-199208

main85130-60130iHZJ71,74,76..HT199908-200408

main85130-60140iHZJ70,73,77,PZJ7#..HT199305-199908

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG199001

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG199001

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG199001-200008

main90179-06158iHZJ71,74,76..HT200008-200408

85190RARM ASSY, REAR WIPER

main85190-90K06iHZJ7#,LJ7#,PZJ7#..HT,WG199001-199208

main85241-60050iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG199208

85192RCOVER, REAR WIPER ARM

main85195-95J01iHZJ71,74,76..HT199908-200408

85214RRUBBER, REAR WIPER

main85214-60050iHZJ71,74,76..HT199908-200408

85220RBLADE ASSY, REAR WIPER

main85220-22300iHZJ7#,LJ7#,PZJ7#..HT,WG199001-199006

main85242-33040iHZJ71,74,76..HT199908-200408

main85242-60011iHZJ70,73,77,KZJ7#,PZJ7#..HT,WG199305-199908

main85242-60040iHZJ7#,LJ7#,PZJ7#..HT,WG199006-199208

85221RBLADE, REAR WIPER

main85221-16070iHZJ73,PZJ70..HT199001-199004

main85243-60020iHZJ73,77,LJ7#,PZJ7#..HT,WG199208-199305

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-60080iHZJ71,74,76..HT199908

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-60080iHZJ71,74,76..HT199908

85291RBLADE,REAR WIPER, WINTER

main85220-95712iHZJ73,PZJ70..HT199001-199003

main85291-27010iHZJ7#,LJ7#,PZJ7#..HT,WG199003-199208

main85291-28120iHZJ71,74,76..HT199908-200408

main85291-60030iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG199208

9009900913

main90099-00913

9111150616

main91111-50616

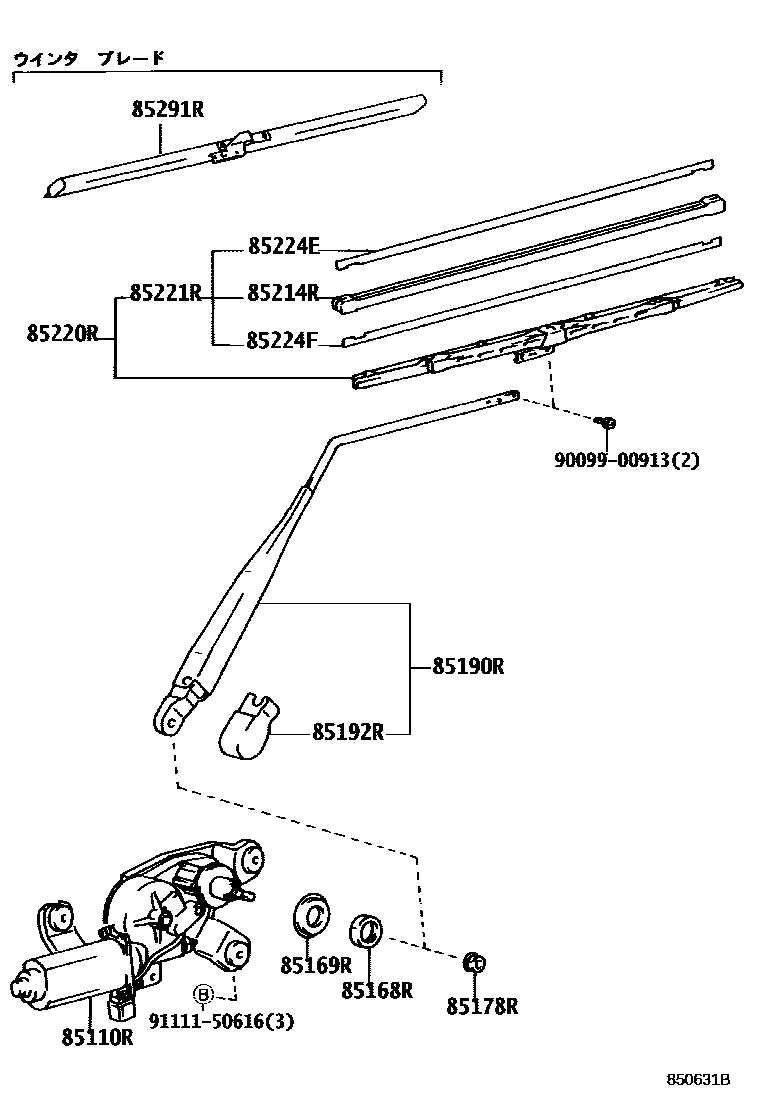

14 parts on this diagram · 2 diagrams in section
