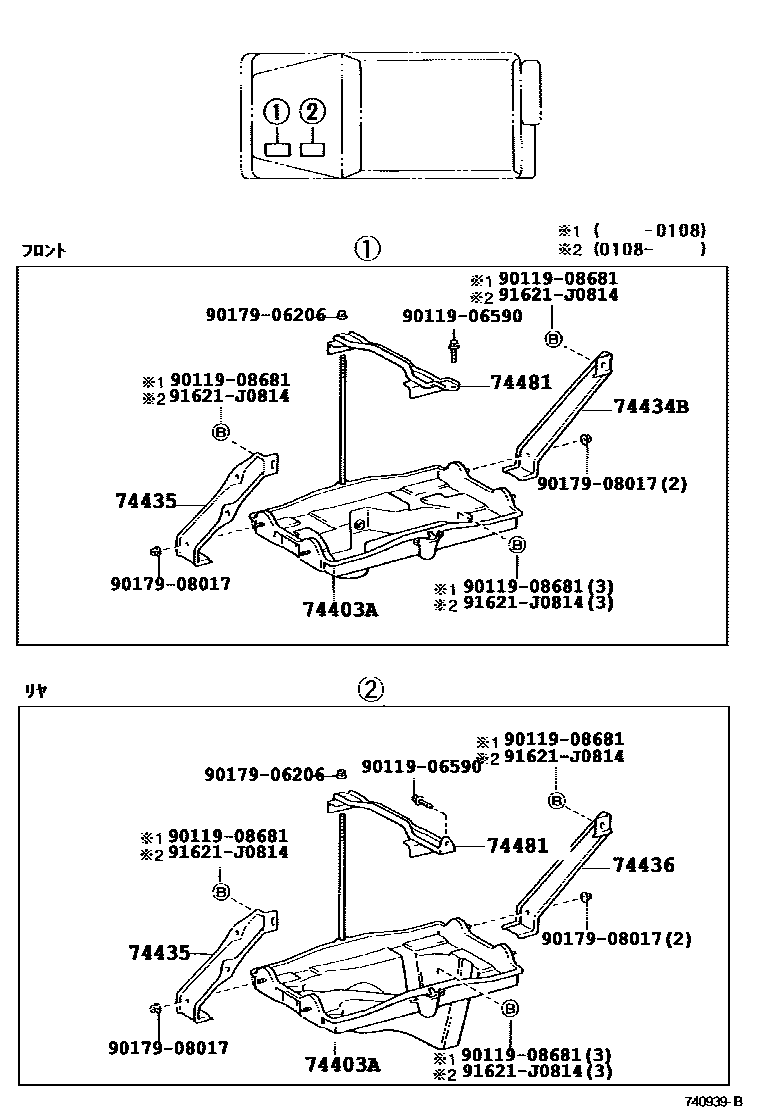

BATTERY CARRIER

0001 1 0002 1 0004 1

74403ACARRIER SUB-ASSY, BATTERY

main74403-60110iLJ7#199108-199201

main74403-60111iKZJ7#199305-199604

main74403-60120iFJ75199006-199208

main74403-60140iHZJ7#,PZJ7#199201-199305

main74403-60160iHZJ7#,PZJ7#199305-199908

main74403-60170iLJ7#199201-199305

main74403-60230iHZJ7#199908-200408

main74403-90K01iLJ7#199004-199108

main74403-90K02iHZJ7#,PZJ7#199001-199201

main74403-90K04iHZJ7#,PZJ7#199001-199201

74434BSUPPORT, BATTERY TRAY, NO.2

main74402-60020iLJ7#199004-199305

main74434-60010iFJ75199006-199208

main74434-90K03iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199001

74435SUPPORT, BATTERY TRAY, NO.3

main74435-60010iKZJ7#199305-199604

main74435-90K02iHZJ7#,PZJ7#199305-199908

main74435-90K03iHZJ7#,PZJ7#199001-199201

74436SUPPORT, BATTERY TRAY, NO.4

main74436-60010iLJ7#199108-199305

main74436-90K02iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199001

74481CLAMP, BATTERY HOLD DOWN

main74404-60070iLJ7#199108-199201

main74404-60071iKZJ7#199305-199604

main74404-60080iFJ75199006-199201

main74404-60081iFJ75199201-199208

main74404-60090iHZJ7#,PZJ7#199305-199908

main74404-90K01iHZJ7#,PZJ7#199001-199201

main74405-60020iLJ7#199108-199201

main74405-60021iLJ7#199201-199305

main74405-60030iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199201

main74405-90K01iHZJ7#,PZJ7#199001-199201

9011906590

main90119-06590

9011908681

main90119-08681

9017906206

main90179-06206

9017908017

main90179-08017

91621J0814

main91621-J0814

10 parts on this diagram · 3 diagrams in section
