FLOOR MAT & SILENCER PAD

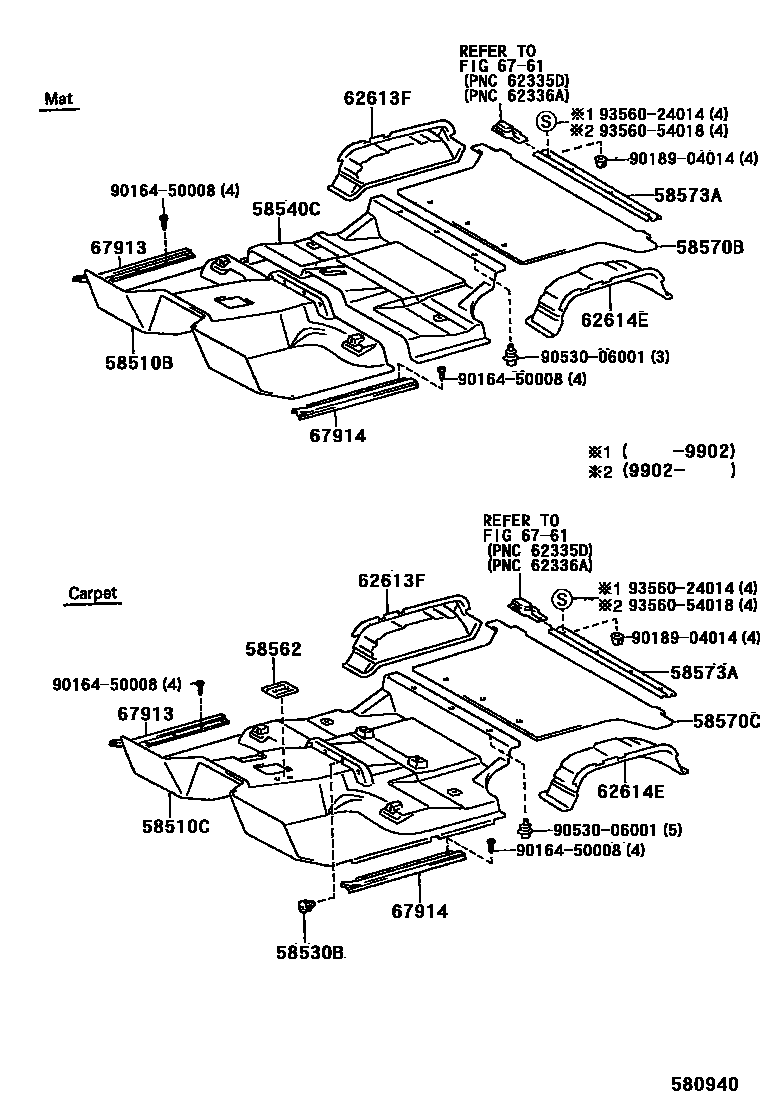

Parts diagram
58510BMAT, FRONT FLOOR, FRONT
main58510-60860-03i199001-199305
BLUISH GRAY,TRIM1#
main58510-60860-06i199001-199208
SABLE,TRIM4#
main58510-6A100-B0i199401-199908
BLUISH GRAY,TRIM1#
main58510-6B760-B1i199908-200408
GRAY,TRIM1#
main58510-6B780-B2i199911-200408
GRAY,TRIM1#
main58510-90L00-03i199006-199208
main58510-90L00-16i199201-199208
main58510-90L01-03i199006-199305
SHADOW GRAY,TRIM1#
main58510-90L01-16i199006-199208
SABLE,TRIM4#
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-60580-03i199004-199305
BLUISH GRAY,TRIM1#
main58510-60580-06i199004-199305
SABLE,TRIM4#
main58510-60581-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-60581-E0i199308-199501
SABLE,TRIM4#
main58510-60582-B0i199501-199604
BLUISH GRAY,TRIM1#
main58510-60582-E1i199501-199604
OAK,TRIM4#
main58510-60590-03i199004-199305
main58510-60590-06i199004-199305
main58510-60630-03i199305-199308
main58510-60630-06i199004-199305
main58510-60631-B0i199308-199501
main58510-60631-E0i199308-199501
main58510-60632-B0i199501-199604
main58510-60632-E1i199501-199604
main58510-60640-03i199004-199305
BLUISH GRAY,TRIM1#
main58510-60640-06i199004-199208
SABLE,TRIM4#
main58510-60641-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-60641-E1i199401-199501
main58510-60642-B0i199501-199908
main58510-60642-E2i199501-199908
main58510-60650-03i199305-199308
BLUISH GRAY,TRIM1#
main58510-60651-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-60652-B0i199501-199908
BLUISH GRAY,TRIM1#
main58510-60690-03i199305-199308
BLUISH GRAY,TRIM1#
main58510-60690-06i199004-199208
SABLE,TRIM4#
main58510-60691-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-60692-B0i199501-199908
BLUISH GRAY,TRIM1#
main58510-60720-03i199305-199308
BLUISH GRAY,TRIM1#
main58510-60721-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-60721-E1i199401-199501
main58510-60722-B0i199501-199908
main58510-60722-E2i199501-199908
main58510-60760-03i199305-199308
main58510-60760-06i199305-199308
main58510-60761-B0i199308-199501
main58510-60761-E0i199308-199501
main58510-60762-B0i199501-199604
main58510-60762-E2i199501-199604
main58510-60850-03i199004-199305
BLUISH GRAY,TRIM1#
main58510-60850-06i199004-199305
SABLE,TRIM4#
main58510-60851-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-60851-E0i199308-199501
SABLE,TRIM4#
main58510-60861-10i199308-199401
BLUISH GRAY,TRIM1#
main58510-60870-03i199208-199305
main58510-60870-06i199208-199305
main58510-60871-B0i199308-199401
main58510-60871-E0i199308-199401
main58510-60880-03i199004-199305
BLUISH GRAY,TRIM1#
main58510-60880-06i199305-199308
SABLE,TRIM4#
main58510-60881-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-60881-E0i199308-199501
SABLE,TRIM4#
main58510-60882-B0i199501-199604
BLUISH GRAY,TRIM1#
main58510-60882-E1i199501-199604
OAK,TRIM4#
main58510-60890-03i199305-199308
main58510-60890-06i199004-199108
main58510-60891-B0i199308-199401
main58510-60891-E0i199308-199401
main58510-6A010-03i199004-199305
BLUISH GRAY,TRIM1#
main58510-6A010-06i199004-199305
SABLE,TRIM4#
main58510-6A011-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-6A011-E0i199308-199501
SABLE,TRIM4#
main58510-6A020-03i199004-199305
main58510-6A020-06i199004-199305
main58510-6A040-03i199305-199308
SHADOW GRAY,TRIM1#
main58510-6A040-06i199305-199308
SABLE,TRIM4#
main58510-6A041-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-6A041-E0i199308-199501
SABLE,TRIM4#
main58510-6A042-B0i199501-199604
BLUISH GRAY,TRIM1#
main58510-6A042-E1i199501-199604
OAK,TRIM4#
main58510-6A050-03i199004-199305
BLUISH GRAY,TRIM1#
main58510-6A050-06i199004-199305
SABLE,TRIM4#
main58510-6A051-B0i199308-199501
BLUISH GRAY,TRIM1#
main58510-6A051-E0i199308-199501
SABLE,TRIM4#
main58510-6A052-B0i199501-199604
BLUISH GRAY,TRIM1#
main58510-6A052-E1i199501-199604
OAK,TRIM4#
main58510-6A110-B0i199401-199501
BLUISH GRAY,TRIM1#
main58510-6A110-E0i199401-199501
SABLE,TRIM4#
main58510-6A111-B0i199501-199908
BLUISH GRAY,TRIM1#
main58510-6A111-E1i199501-199908
OAK,TRIM4#
main58510-6A120-B0i199401-199501
BLUISH GRAY,TRIM1#
main58510-6A120-E0i199401-199501
SABLE,TRIM4#
main58510-6A121-B0i199501-199908
BLUISH GRAY,TRIM1#
main58510-6A121-E1i199501-199908
OAK,TRIM4#
main58510-6A130-B0i199401-199501
main58510-6A130-E0i199401-199501
main58510-6A131-B0i199501-199908
main58510-6A131-E1i199501-199908
main58510-6A140-B0i199401-199501
BLUISH GRAY,TRIM1#
main58510-6A140-E0i199401-199501
SABLE,TRIM4#
main58510-6A141-B0i199501-199908
BLUISH GRAY,TRIM1#
main58510-6A141-E1i199501-199908
OAK,TRIM4#
main58510-6A150-B0i199401-199501
BLUISH GRAY,TRIM1#
main58510-6A150-E0i199401-199501
SABLE,TRIM4#
main58510-6A151-B0i199501-199908
BLUISH GRAY,TRIM1#
main58510-6A151-E1i199501-199908
OAK,TRIM4#
main58510-6A160-B0i199401-199501
main58510-6A160-E0i199401-199501
main58510-6A161-B0i199501-199908
main58510-6A161-E1i199501-199908
main58510-6A170-B0i199401-199501
BLUISH GRAY,TRIM1#
main58510-6A170-E0i199401-199501
SABLE,TRIM4#
main58510-6A171-B0i199501-199908
BLUISH GRAY,TRIM1#
main58510-6A171-E1i199501-199908
OAK,TRIM4#
main58510-6A220-B0i199501-199604
BLUISH GRAY,TRIM1#
main58510-6A220-E0i199501-199604
OAK,TRIM4#
main58510-6A230-B0i199501-199604
BLUISH GRAY,TRIM1#
main58510-6A230-E0i199501-199604
OAK,TRIM4#
main58510-6B880-B1i199908-200408
GRAY,TRIM1#
main58510-6C020-B1i199908-200408
GRAY,TRIM1#
main58510-6C030-B1i199908-200408
GRAY,TRIM1#
main58510-6C040-B1i199908-200408
GRAY,TRIM1#
main58510-6C050-B1i199908-200408
GRAY,TRIM1#
main58510-6C060-B1i199908-200408
GRAY,TRIM1#
main58510-6C070-B1i199908-200408
GRAY,TRIM1#
main58510-6C080-B1i199908-200408
GRAY,TRIM1#
main58510-6C090-B1i199908-200408
GRAY,TRIM1#
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-12014-23×2i199111-199208
LIGHT GRAY,TRIM1#
main90467-12014-26×2i199305-199401
LIGHT SABLE,TRIM4#
58540CMAT ASSY, FLOOR, REAR
main58540-60140-03i199004-199305
BLUISH GRAY,TRIM1#
main58540-60140-06i199004-199208
SABLE,TRIM4#
main58540-60180-03i199006-199111
main58540-60270-B0i199111
main58540-60540-B0i199911-200408
GRAY,TRIM1#
main58540-90K21-03i199001-199305
BLUISH GRAY,TRIM1#
main58540-90K21-06i199001-199208
SABLE,TRIM4#
main58540-90K21-10i199908-200408
GRAY,TRIM1#
main58540-90K38-03i199305-199401
SHADOW GRAY,TRIM1#
main58540-90K38-16i199001-199208
SABLE,TRIM4#
main58540-90K42-03i199305-199908
SHADOW GRAY,TRIM1#
main58540-90K42-16i199201-199208
SABLE,TRIM4#
58562MAT, FLOOR, FRONT LH
main58562-90K00-01i199001-199108
BLACK,TRIM1#
58570BMAT ASSY, REAR FLOOR
main58570-60170-03i199004-199302
BLUISH GRAY,TRIM1#
main58570-60170-06i199004-199208
SABLE,TRIM4#
main58570-60171-B0i199305-199401
BLUISH GRAY,TRIM1#
main58581-60010-B0i199908-200408
SHADOW GRAY,TRIM1#
main58581-60010-E0i199108-199208
SABLE,TRIM4#
main58581-90K03-03i199001-199108
SHADOW GRAY,TRIM1#
main58581-90K03-16i199001-199108
SABLE,TRIM4#
58570CCARPET ASSY, REAR FLOOR
main58570-60180-03i199004-199302
BLUISH GRAY,TRIM1#
main58570-60180-06i199004-199302
SABLE,TRIM4#
main58570-60181-B0i199302-199305
BLUISH GRAY,TRIM1#
main58570-60181-E0i199305-199501
SABLE,TRIM4#
main58570-60181-E1i199501-199604
OAK,TRIM4#
main58570-60190-03i199004-199302
BLUISH GRAY,TRIM1#
main58570-60190-06i199208-199302
SABLE,TRIM4#
main58570-60191-B0i199305-199908
BLUISH GRAY,TRIM1#
main58570-60191-E0i199305-199501
SABLE,TRIM4#
main58570-60191-E1i199501-199908
OAK,TRIM4#
main58570-60192-B0i199908
GRAY,TRIM1#
main58570-60210-03i199004-199302
BLUISH GRAY,TRIM1#
main58570-60210-06i199004-199302
SABLE,TRIM4#
main58570-60211-B0i199305-199604
BLUISH GRAY,TRIM1#
main58570-60211-E0i199305-199501
SABLE,TRIM4#
main58570-60211-E1i199501-199604
OAK,TRIM4#
main58570-60220-B0i199305-199908
SHADOW GRAY,TRIM1#
main58570-60220-E0i199401-199501
SABLE,TRIM4#
main58570-60220-E1i199501-199908
OAK,TRIM4#
main58570-60221-B0i199908
GRAY,TRIM1#
main58570-60230-B0i199305-199908
SHADOW GRAY,TRIM1#
main58570-60230-E0i199305-199501
SABLE,TRIM4#
main58570-60230-E1i199501-199908
OAK,TRIM4#
main58570-60231-B0i199908-200408
GRAY,TRIM1#
main58570-90K02-03i199001-199108
SHADOW GRAY,TRIM1#
main58570-90K05-03i199305-199604
SHADOW GRAY,TRIM1#
main58570-90K05-16i199004-199305
SABLE,TRIM4#
main58570-90K05-E0i199501-199604
OAK,TRIM4#
main58570-90K07-03i199001-199108
SHADOW GRAY,TRIM1#
main58570-90K07-16i199001-199108
SABLE,TRIM4#
main58570-90K12-13i199004-199305
BLUISH GRAY,TRIM1#
main58570-90K12-16i199004-199305
SABLE,TRIM4#
main58570-90K12-E0i199501-199604
OAK,TRIM4#
58573APLATE, REAR FLOOR MAT SUPPORT
main58573-60070-B1i199908
BLUISH GRAY,TRIM1#
main58573-60070-E1i199902-199908
OAK,TRIM4#
main58573-90K00i199001-199305
62613FCOVER, QUARTER WHEEL HOUSE, RH
main62613-60230-03i199004-199305
BLUISH GRAY,TRIM1#
main62613-60230-06i199004-199208
SABLE,TRIM4#
main62613-60240-03i199004-199305
BLUISH GRAY,TRIM1#
main62613-60240-06i199305-199501
SABLE,TRIM4#
main62613-60240-E0i199501-199604
OAK,TRIM4#
main62613-60260-03i199004-199305
BLUISH GRAY,TRIM1#
main62613-60260-06i199004-199305
SABLE,TRIM4#
main62613-60260-E0i199501-199604
OAK,TRIM4#
main62613-60290-03i199401-199908
BLUISH GRAY,TRIM1#
main62613-60290-06i199001-199208
SABLE,TRIM4#
main62613-60290-10i199908-200408
GRAY,TRIM1#
main62613-60320-03i199305-199908
BLUISH GRAY,TRIM1#
main62613-60320-06i199001-199305
SABLE,TRIM4#
main62613-60320-E0i199501-199908
OAK,TRIM4#
main62613-60321-B0i199908
GRAY,TRIM1#
main62613-60330-03i199305-199908
BLUISH GRAY,TRIM1#
main62613-60330-06i199401-199501
SABLE,TRIM4#
main62613-60330-E0i199501-199908
OAK,TRIM4#
main62613-60331-B0i199908
GRAY,TRIM1#
main62613-60340-03i199305-199604
BLUISH GRAY,TRIM1#
main62613-60340-06i199004-199305
SABLE,TRIM4#
main62613-60340-E0i199501-199604
OAK,TRIM4#
main62613-60360-03i199001-199108
BLUISH GRAY,TRIM1#
main62613-60370-03i199305-199908
BLUISH GRAY,TRIM1#
main62613-60370-06i199004-199208
SABLE,TRIM4#
main62613-60370-E0i199501-199908
OAK,TRIM4#
main62613-60371-B0i199908
GRAY,TRIM1#
62614ECOVER, QUARTER WHEEL HOUSE, LH
main62614-60250-03i199004-199305
BLUISH GRAY,TRIM1#
main62614-60250-06i199004-199208
SABLE,TRIM4#
main62614-60260-03i199004-199305
BLUISH GRAY,TRIM1#
main62614-60260-06i199004-199305
SABLE,TRIM4#
main62614-60260-E0i199501-199604
OAK,TRIM4#
main62614-60280-03i199004-199305
BLUISH GRAY,TRIM1#
main62614-60280-06i199305-199501
SABLE,TRIM4#
main62614-60280-E0i199501-199604
OAK,TRIM4#
main62614-60310-03i199305-199908
BLUISH GRAY,TRIM1#
main62614-60310-06i199004-199208
SABLE,TRIM4#
main62614-60310-E0i199501-199908
OAK,TRIM4#
main62614-60311-B0i199908-200408
GRAY,TRIM1#
main62614-60390-B0i199908-200408
GRAY,TRIM1#
main62614-60400-B0i199908-200408
GRAY,TRIM1#
main62614-90K00-03i199305-199308
SHADOW GRAY,TRIM1#
main62614-90K00-10i199908-200310
GRAY,TRIM1#
main62614-90K00-16i199001-199208
SABLE,TRIM4#
main62614-90K03-03i199305-199908
SHADOW GRAY,TRIM1#
main62614-90K03-16i199001-199305
SABLE,TRIM4#
main62614-90K03-E0i199501-199908
OAK,TRIM4#
main62614-90K05-03i199305-199908
SHADOW GRAY,TRIM1#
main62614-90K05-16i199401-199501
SABLE,TRIM4#
main62614-90K05-E0i199501-199908
OAK,TRIM4#
main62614-90K06-13i199004-199305
BLUISH GRAY,TRIM1#
main62614-90K06-16i199004-199305
SABLE,TRIM4#
main62614-90K06-E1i199501-199604
OAK,TRIM4#
main62614-90K10-03i199001-199108
SHADOW GRAY,TRIM1#
6761BACK DOOR PANEL & GLASS
→ Go to FIG 67-61
67913PLATE, FRONT DOOR SCUFF, RH
main67913-60010-03i199004-199305
LIGHT GRAY,TRIM1#
main67913-60010-06i199305-199501
LIGHT SABLE,TRIM4#
main67913-60010-E0i199501-199908
LT.OAK,TRIM4#
main67913-60010-S7i199908-200408
SLATE GRAY,TRIM1#
main67913-90K00-13i199305-199908
LIGHT GRAY,TRIM1#
main67913-90K00-16i199001-199208
LIGHT SABLE,TRIM4#
main67913-90K00-E0i199501-199908
LT.OAK,TRIM4#
main67913-90K00-S7i199908-200408
SLATE GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
main67913-60010-03i199305-199908
main67913-60010-06i199004-199208
LIGHT SABLE,TRIM4#
main67913-60010-E0i199501-199908
LT.OAK,TRIM4#
main67913-60010-S7i199908-200408
main67913-90K00-13i199001-199305
LIGHT GRAY,TRIM1#
main67913-90K00-16i199305-199501
LIGHT SABLE,TRIM4#
main67913-90K00-E0i199501-199908
LT.OAK,TRIM4#
main67913-90K00-S7i199908-200408
SLATE GRAY,TRIM1#
9016450008
main90164-50008
9018904014
main90189-04014
9053006001
main90530-06001
9356024014
main93560-24014
9356054018
main93560-54018

18 parts on this diagram · 3 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
