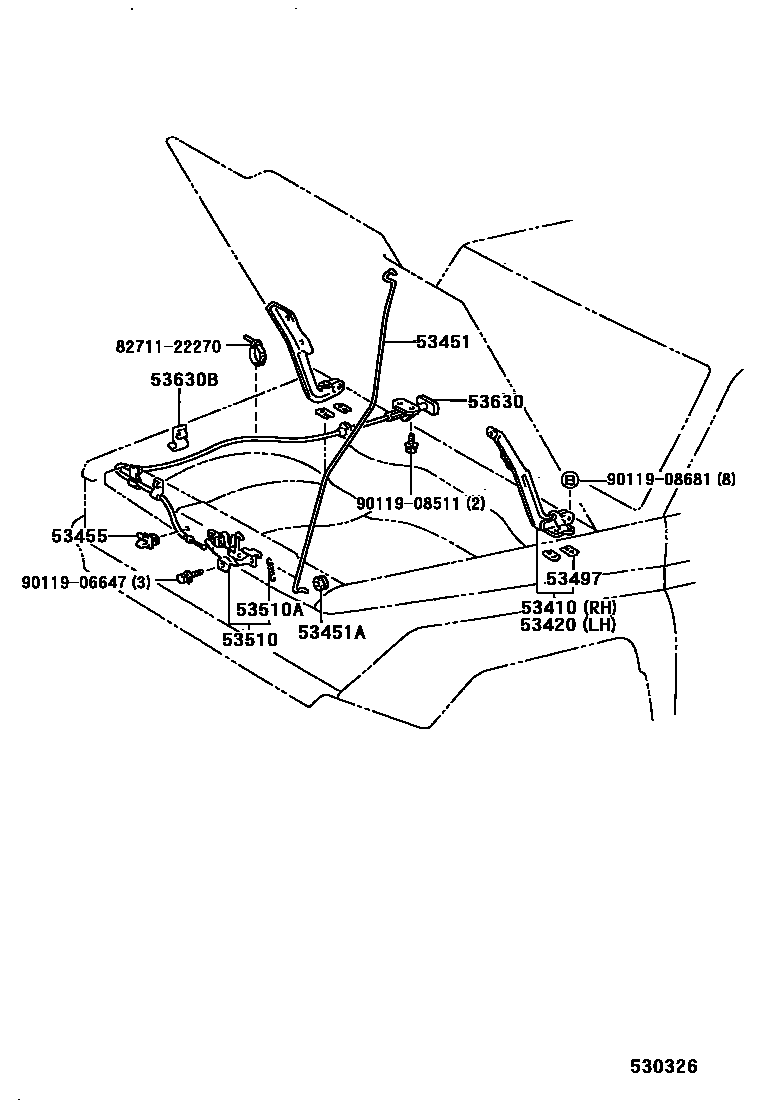

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-90K01iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

53420HINGE ASSY, HOOD, LH

main53420-90K01iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

53451ROD, HOOD SUPPORT

main53451-90K00iLJ7#199004-199305

main53451-90K01iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#199001

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15296iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

53497PAD, HOOD HINGE, NO.1

main53497-90K02iFJ75,HZJ7#,LJ7#,PZJ7#199001-199305

53510LOCK ASSY, HOOD

main53510-60040iLJ7#199004-199208

main53510-60041iLJ7#199208-199305

main53510-60060iFJ75,HZJ7#,PZJ7#199001-199208

main53510-60061iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199208

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09039×2iFJ75,HZJ7#,LJ7#,PZJ7#199001-199208

main90506-09052×2iHZJ73,77..ZX;HZJ71,74,75,76,79,LJ7#,PZJ7#199208

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-90K02iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010×4iLJ7#199004-199305

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9011906647

main90119-06647

9011908511

main90119-08511

9011908681

main90119-08681

14 parts on this diagram · 1 diagram in section
