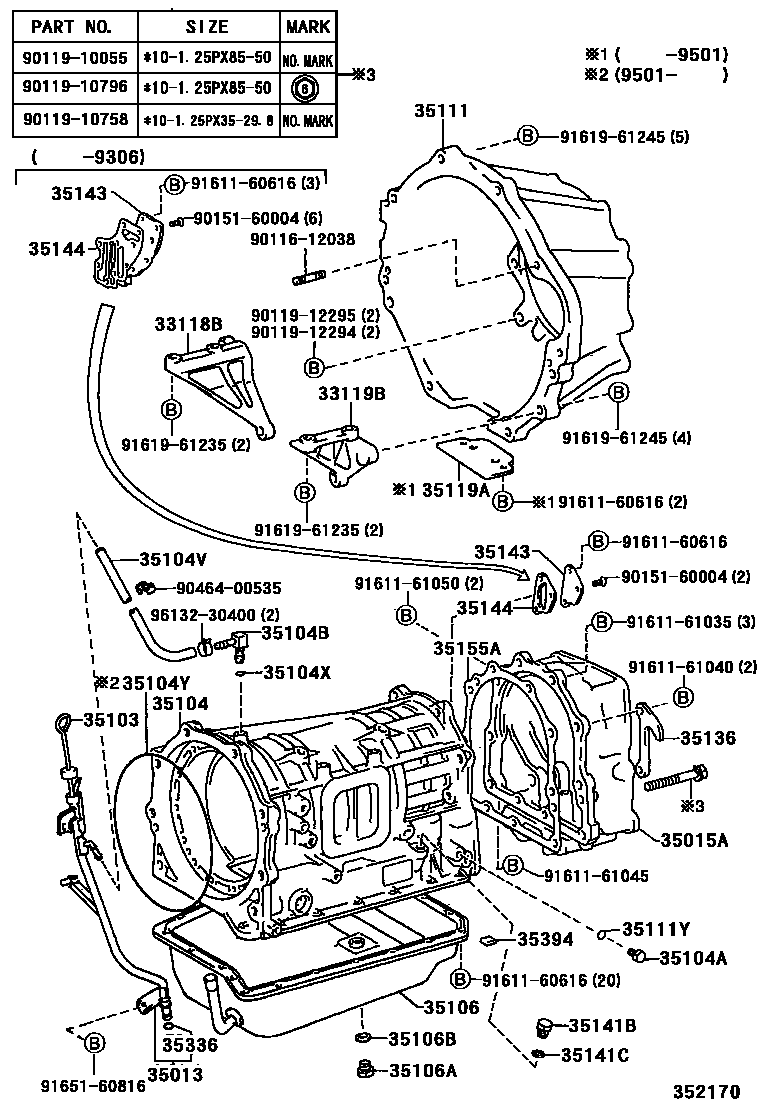

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A440F 0002 1A442F 0003 1A343F

33118BPLATE, STIFFENER, RH(ATM)

main33118-35031iLJ7#..ATM199004-199305

main33118-60030iHZJ73,77..ATM199001-199801

main33118-60050iKZJ7#..ATM199305-199604

main33118-60060iHZJ73,77..ATM199801-200408

33119BPLATE, STIFFENER, LH(ATM)

main33119-25020iLJ7#..ATM199004-199305

main33119-60030iHZJ7#..ATM199001-199111

main33119-60031iHZJ73,77..ATM199111-199801

main33119-60050iKZJ7#..ATM199305-199604

main33119-60070iHZJ74,76..ATM199801-200408

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-60080iHZJ73,77..ATM199001-199908

main35013-60090iLJ7#..ATM199004-199112

main35013-60091iLJ7#..ATM199112-199305

main35013-60120iKZJ7#..ATM199305-199501

main35013-60121iKZJ7#..ATM199501-199604

main35013-60200iHZJ74,76..ATM199908-200408

35015AADAPTER SUB-ASSY, TRANSMISSION CASE, REAR

main35015-60011iHZJ7#..ATM199001-199208

main35015-60030iLJ7#..ATM199004-199604

main35015-60060iHZJ73,77..ATM199208-199501

main35015-60061iHZJ73,77..ATM199501-199908

main35015-60130iHZJ74,76..ATM199908-200408

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-60050iHZJ73,77..ATM199001-199908

main35103-60060iLJ7#..ATM199004-199305

main35103-60080iKZJ7#..ATM199305-199604

main35103-60180iHZJ74,76..ATM199908-200408

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-25020iHZJ74,76..ATM199909-200408

main35104-36021iHZJ7#..ATM199001-199208

main35104-36040iHZJ73,77..ATM199305-199501

main35104-60070iLJ7#..ATM199004-199604

main35104-60090iHZJ73,77..ATM199208-199304

main35104-60110iHZJ73,77..ATM199501-199708

main35104-60150iHZJ73,77..ATM199708-199908

main35104-60180iHZJ74,76..ATM199908-199909

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iLJ7#..ATM199004-199604

main90341-08001iHZJ73,77..ATM199001-200408

main90341-14011iLJ7#..ATM199004-199604

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iHZJ73,77..ATM199001-200408

main90930-03098iLJ7#..ATM199004-199604

main90930-03099iLJ7#..ATM199004-199604

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iKZJ7#..ATM199004-199604

main90445-11113iHZJ73,77..ATM199001-200001

main90447-11046iHZJ74,76..ATM200001-200408

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iHZJ74,76..ATM199001-200408

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-99067iHZJ73,77..ATM199501-200408

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-35012iLJ7#..ATM199004-199604

main35106-60050iHZJ74,76..ATM;HZJ73,77..ATM..ZX199001-200408

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iKZJ7#..ATM199004-199604

main90341-18057iHZJ74,76..ATM;HZJ73,77..ATM..ZX199001-200408

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iHZJ74,76..ATM199001-200408

main35178-30010iLJ7#..ATM199004-199604

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60040iHZJ73,77..ATM199001-199801

main35111-60041iHZJ73,77..ATM199801-200408

main35111-60060iLJ7#..ATM199004-199006

main35111-60061iLJ7#..ATM199006-199012

main35111-60062iLJ7#..ATM199012-199305

main35111-60080iKZJ7#..ATM199305-199604

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iHZJ74,76..ATM;HZJ73,77..ATM..ZX199001-200408

35119ACOVER, TRANSMISSION HOUSING

main35119-36010iHZJ74,76..ATM;HZJ73,77..ATM..ZX199001-200408

35136HANGER, TRANSMISSION,NO.1

main35136-60010iHZJ74,76..ATM199001-200408

main35136-60030iKZJ7#..ATM199004-199604

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-13001iHZJ74,76..ATM199908-200408

main90341-16010iHZJ73,77..ATM199001-199908

35141CWASHER, PLATE (FOR AUTOMATIC TRANSMISSION CASE)

main90201-16013iHZJ73,77..ATM199001-199908

main90301-10189iHZJ74,76..ATM199908-200408

35143COVER, TRANSMISSION CASE, REAR

main35143-36010iHZJ73,77..ATM199001-199407

main35143-36011iHZJ73,77..ATM199407-199908

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-36010iHZJ7#..ATM199001-199208

main35144-60010iHZJ73,77..ATM199208-199407

main35144-60011iHZJ73,77..ATM199407-199908

35155AGASKET, TRANSMISSION CASE ADAPTER

main35182-36010iHZJ7#..ATM199001-199208

main35182-60010iHZJ74,76..ATM;HZJ73,77..ATM..ZX199208-200408

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iHZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM199001-200408

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iHZJ73,77..ATM199001-200408

9011612038

main90116-12038

9011910055

main90119-10055

9011910758

main90119-10758

9011910796

main90119-10796

9011912294

main90119-12294

9011912295

main90119-12295

9015160004

main90151-60004

9046400535

main90464-00535

9161160616

main91611-60616

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9161161050

main91611-61050

9161961235

main91619-61235

9161961245

main91619-61245

9165160816

main91651-60816

9613230400

main96132-30400

42 parts on this diagram · 3 diagrams in section
