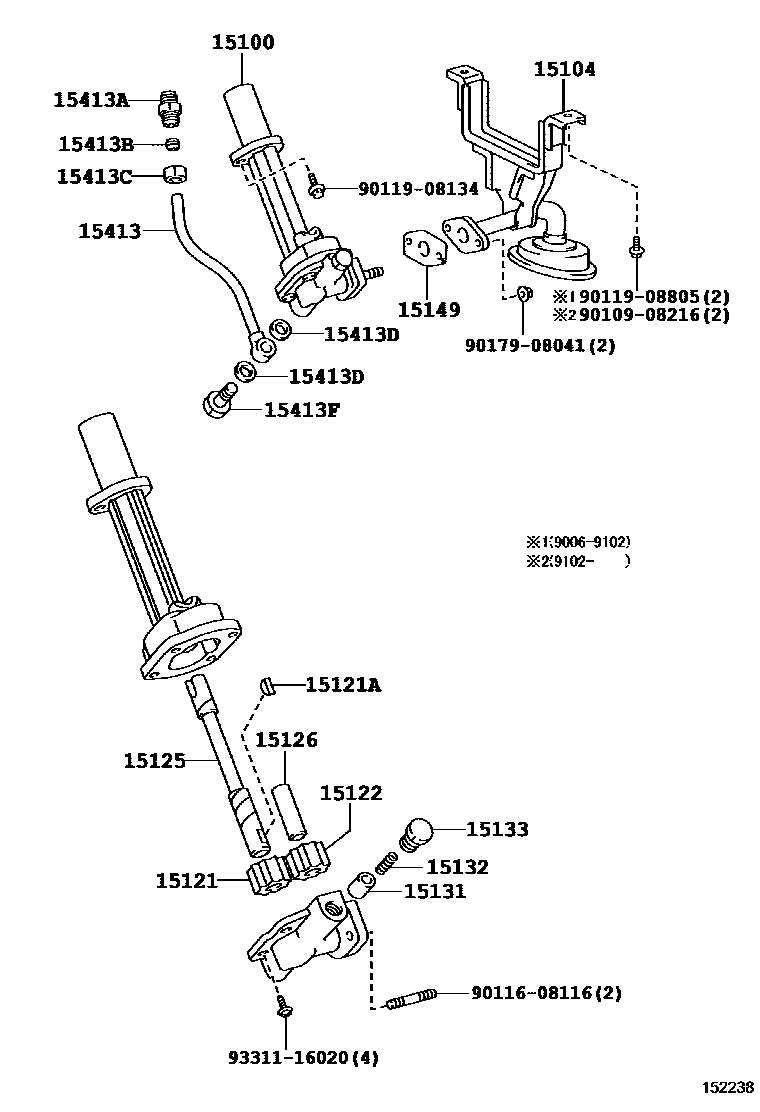

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15100PUMP ASSY, OIL

main15100-61020i3F..FJ75199006-199208

15104STRAINER SUB-ASSY, OIL

main15104-17020i1PZ..PZJ7#199004-199208

main15104-17050i1HZ..HZJ7#; 1PZ..PZJ7#199208-199305

main15104-17070i1HZ..HZJ7#199908-200408

main15104-54160i2LTE..LJ7#199004-199305

main15104-61020i3F..FJ75199006-199102

main15104-61031i3F..FJ75199102-199208

main15104-67020i1KZTE..KZJ7#199305-199604

15121GEAR, OIL PUMP DRIVE

main15121-54020i2LTE..LJ7#199004-199208

main15121-61011i3F..FJ75199006-199208

15121AKEY, OIL PUMP DRIVE SHAFT

main90280-03009i3F..FJ75199006-199208

15122GEAR, OIL PUMP DRIVEN

main15122-54020i2LTE..LJ7#199004-199208

main15122-61020i3F..FJ75199006-199208

15125SHAFT, OIL PUMP

main15125-60013i3F..FJ75199006-199208

15126SHAFT, OIL PUMP DRIVEN

main15126-60013i3F..FJ75199006-199208

15131VALVE, OIL PUMP RELIEF

main15131-17010i1HZ..HZJ7#199908-200408

main15131-24010i3F..FJ75199006-199208

main15131-46040i1KZTE..KZJ7#199305-199604

main15131-54010i2LTE..LJ7#199004-199305

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KZTE..KZJ7#199305-199604

main15132-40010i3F..FJ75199006-199208

main15132-54010i2LTE..LJ7#199004-199208

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1HZ..HZJ7#199305-199908

main15133-24010i3F..FJ75199006-199208

main15133-54010i2LTE..LJ7#199004-199208

15149GASKET, OIL STRAINER FLANGE

main15149-17010i1HZ..HZJ7#199001-199305

main15149-61020i3F..FJ75199006-199208

main15149-67010i1KZTE..KZJ7#199305-199604

15413PIPE, OIL PUMP OUTLET

main15403-61010i3F..FJ75199006-199208

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-16008i3F..FJ75199006-199208

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-11005i3F..FJ75199006-199208

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90402-16042i3F..FJ75199006-199208

15413DGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-15261×2i3F..FJ75199006-199208

15413FBOLT, UNION(FOR OIL PUMP OUTLET PIPE)

main90401-14093i3F..FJ75199006-199208

9010908216

main90109-08216

9011608116

main90116-08116

9011908134

main90119-08134

9011908805

main90119-08805

9017908041

main90179-08041

9331116020

main93311-16020

23 parts on this diagram · 5 diagrams in section
