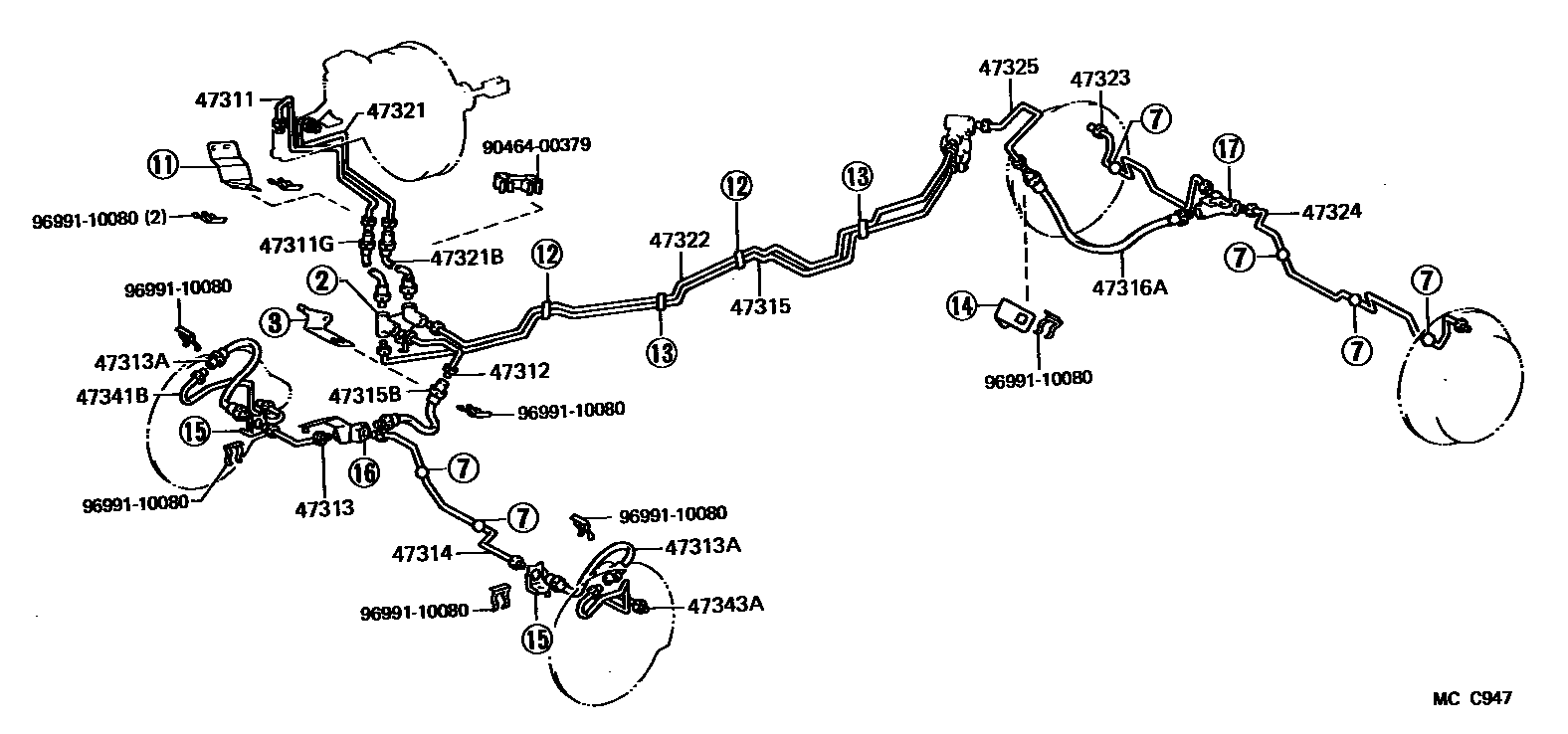

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47321TUBE, REAR BRAKE, NO.1
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
9046400379
main90464-00379
9699110080
main96991-10080
19 parts on this diagram · 4 diagrams in section
