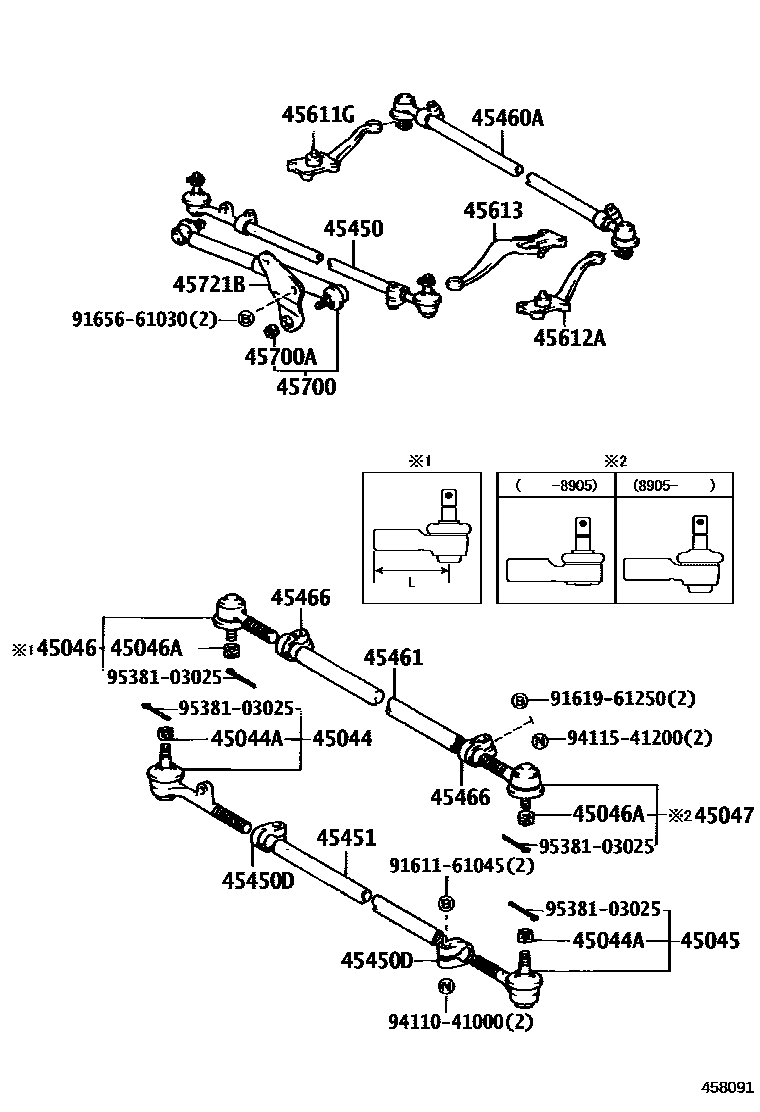

FRONT STEERING GEAR & LINK
45044END SUB-ASSY, STEERING RELAY ROD, RH
45044ANUT, CASTLE(FOR RELAY ROD)
45045END SUB-ASSY, STEERING RELAY ROD, LH
45046END SUB-ASSY, TIE ROD, RH
L=102.5
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45450DCLAMP, STEERING RELAY ROD END
45466CLAMP, TIE ROD END
45613ARM, STEERING KNUCKLE, NO.3
45700DAMPER ASSY, STEERING
45700ANUT(FOR STEERING DAMPER)
45721BBRACKET, STEERING DAMPER, NO.3
9161161045
main91611-61045
9161961250
main91619-61250
9165661030
main91656-61030
9411041000
main94110-41000
9411541200
main94115-41200
9538103025
main95381-03025
24 parts on this diagram · 5 diagrams in section
