V-BELT

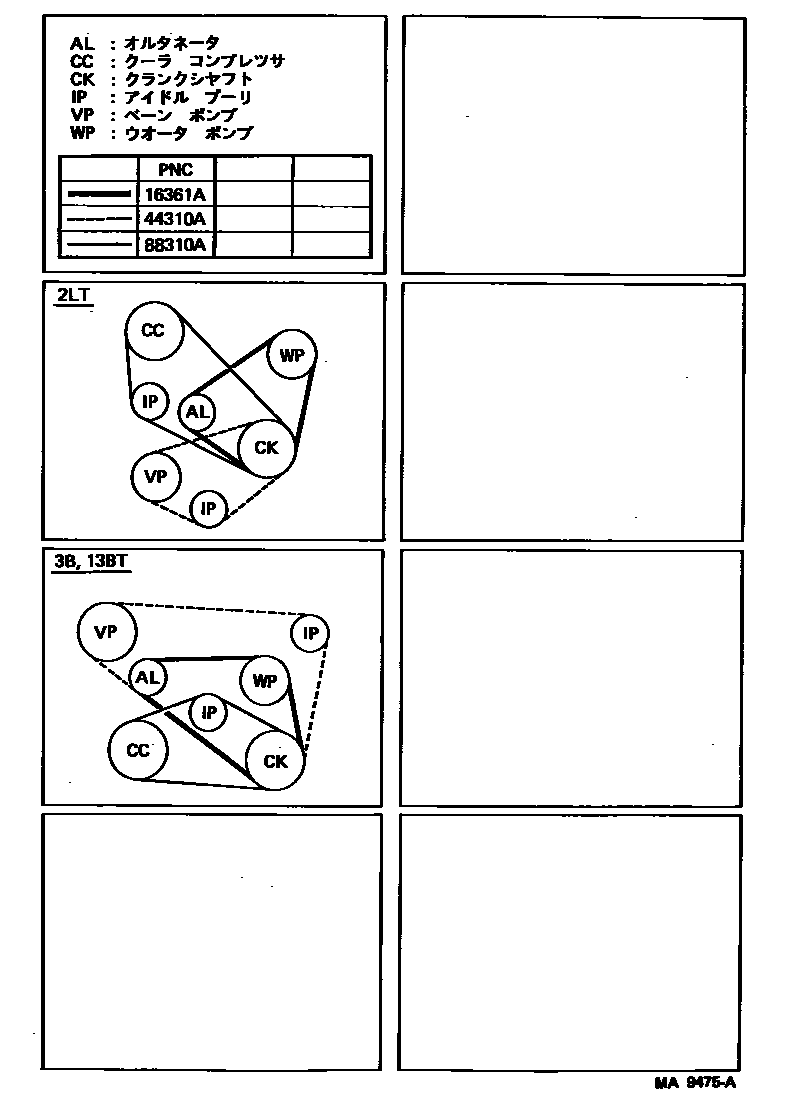

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i198510-198908

DOUBLE V BELTS

main90916-02142i198510-199001

main90916-02239i198808-199001

main90916-02240i198808-199001

W/PS

main90916-02281i198908

DOUBLE V BELTS

main99343-01195i198411-198808

44310ABELT, V(FOR VANE PUMP)

main99332-10865i198510-199001

main99343-11510i198411-199001

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01030i198411-198808

main99322-01045i198808-199001

main99322-01200i198510-199001

3 parts on this diagram · 1 diagram in section
