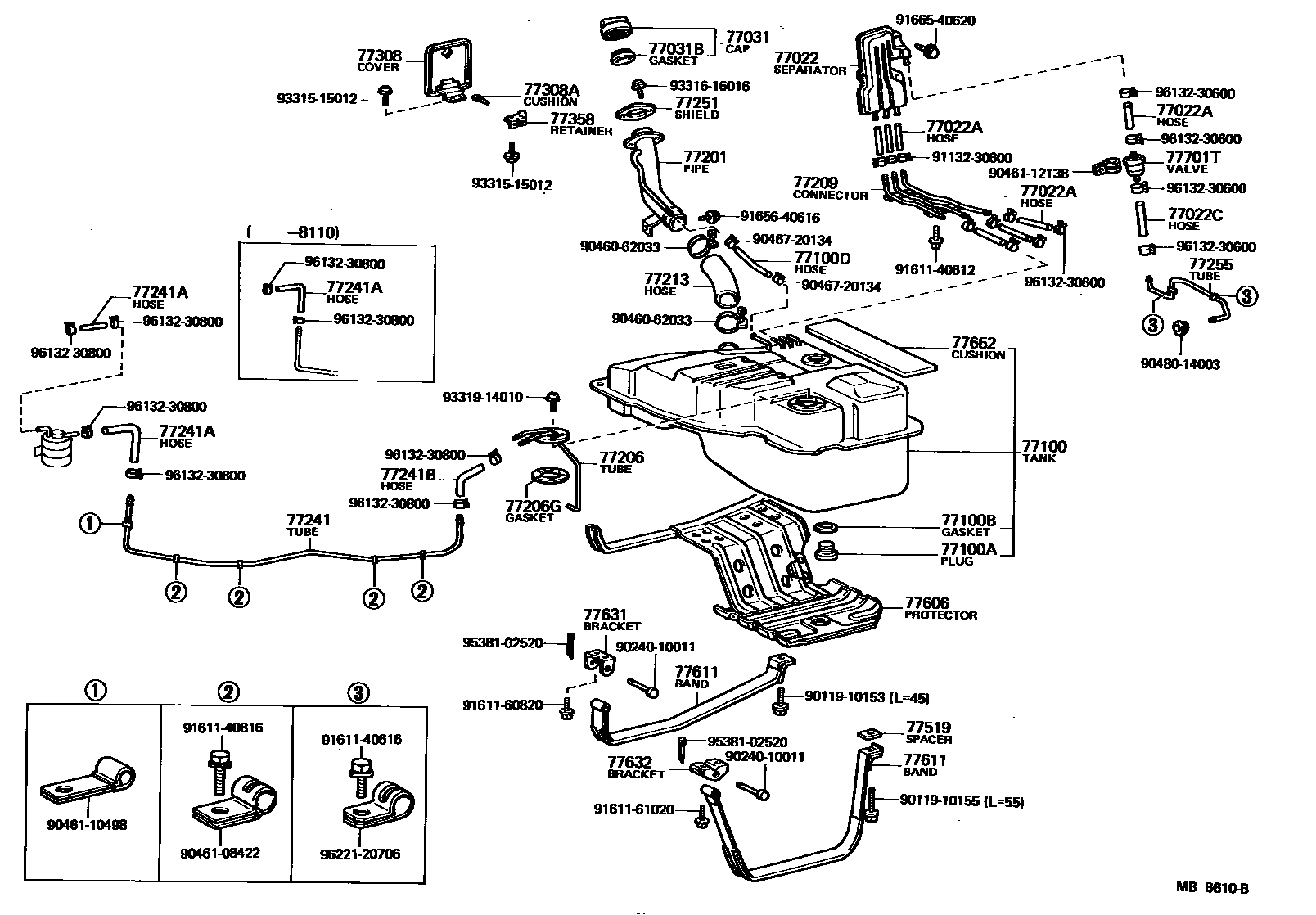

FUEL TANK & TUBE

0001 1 0002 1

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77193-60013iBJ4#198008-198410

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06010iBJ4#198008-198410

main95332-06020×3iBJ4#198008-198410

77022CHOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06040iBJ4#198008-198410

*H,L=360

77031CAP ASSY, FUEL TANK

main77310-12090iBJ4#198008-198207

main77310-35061iBJ4#198207-198410

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iBJ4#198008-198410

77100TANK ASSY, FUEL

main77001-60140iBJ4#198210-198410

main77100-60045iBJ4#198008-198210

77100APLUG(FOR FUEL TANK)

main90341-20003iBJ4#198210-198410

main90341-24036iBJ4#198008-198210

77100BGASKET(FOR FUEL TANK)

main90430-20006iBJ4#198210-198410

main90430-24047iBJ4#198008-198210

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22016iBJ4#198008-198410

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60052iBJ4#198008-198410

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-60030iBJ4#198008-198210

main77240-60060iBJ4#198210-198410

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBJ4#198210-198410

main83361-20030iBJ4#198008-198210

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-60020iBJ4#198008-198210

main77209-60021iBJ4#198210-198410

77213HOSE, FUEL TANK SUB INLET

main77217-60015iBJ4#198008-198210

main77217-60030iBJ4#198210-198410

77241TUBE, FUEL MAIN, NO.1

main77251-60063iBJ4#198008-198210

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-08030iBJ4#198110-198210

main95332-08040iBJ4#198211-198410

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-08040iBJ4#198008-198210

main95332-08060iBJ4#198210-198410

77251SHIELD, FUEL TANK, INLET, NO.1

main77293-60030iBJ4#198008-198410

77255TUBE, FUEL EMISSION, NO.2

main77244-60030iBJ4#198008-198410

77308COVER SUB-ASSY, FUEL INLET BOX

main61802-90302iBJ4#198008-198410

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-03078iBJ4#198008-198410

77358RETAINER, FUEL INLET CUSHION

main61824-90302iBJ4#198008-198410

77519SPACER, FUEL TANK BRACKET

main77519-60010iBJ4#198008-198410

T=1.0

main77519-60020iBJ4#198008-198410

T=4.5

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60020iBJ4#198008-198210

main77606-60021iBJ4#198210-198410

77611BAND, FUEL TANK

main77601-60041iBJ4#198008-198410

RH

main77602-60021iBJ4#198008-198410

LH

77631BRACKET, FUEL TANK, NO.1

main77614-60030iBJ4#198008-198410

77632BRACKET, FUEL TANK, NO.2

main77615-60020iBJ4#198008-198410

77652CUSHION, FUEL TANK, NO.1

main77651-60020iBJ4#198008-198410

750X100

main77652-60011×2iBJ4#198008-198410

230X80

main77653-60010iBJ4#198008-198410

350X80

main77654-60010×4iBJ4#198008-198410

100X100

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iBJ4#198008-198410

9011910153

main90119-10153

9011910155

main90119-10155

9024010011

main90240-10011

9046062033

main90460-62033

9046108422

main90461-08422

9046110498

main90461-10498

9046112138

main90461-12138

9046720134

main90467-20134

9048014003

main90480-14003

9113230600

main91132-30600

9161140612

main91611-40612

9161140616

main91611-40616

9161140816

main91611-40816

9161160820

main91611-60820

9161161020

main91611-61020

9165640616

main91656-40616

9166540620

main91665-40620

9331515012

main93315-15012

9331616016

main93316-16016

9331914010

main93319-14010

9538102520

main95381-02520

9613230600

main96132-30600

9613230800

main96132-30800

9622120706

main96221-20706

53 parts on this diagram · 2 diagrams in section
