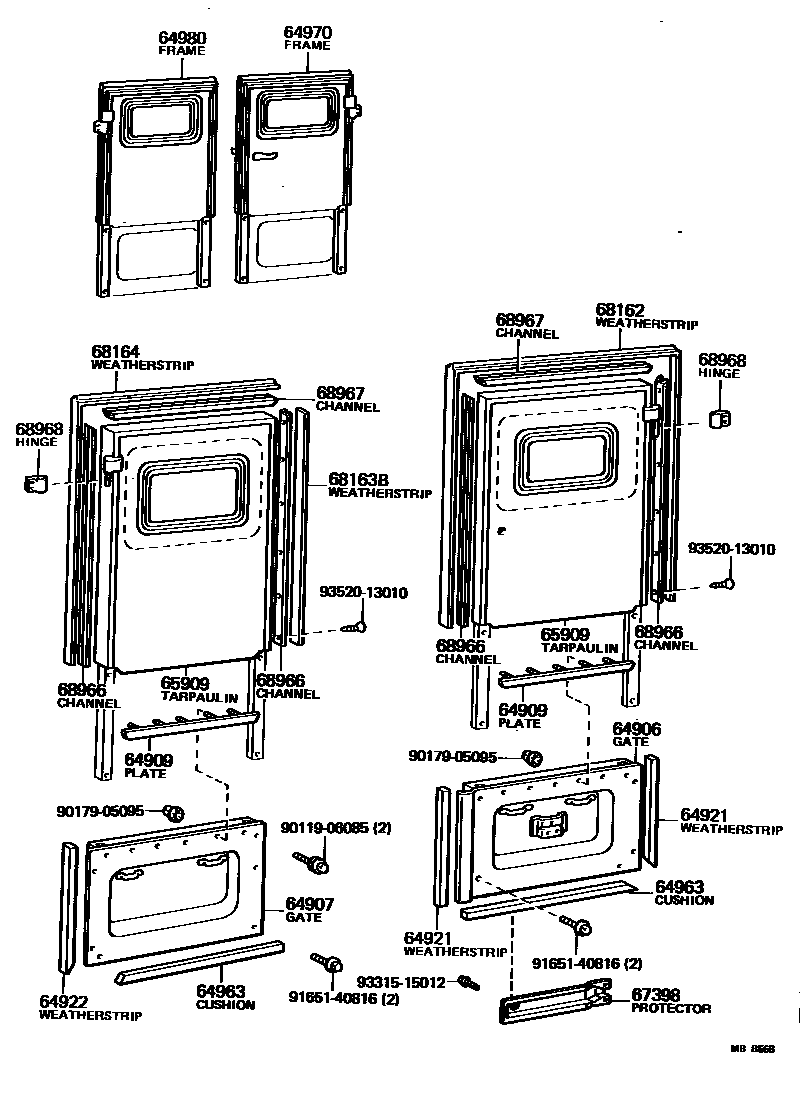

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

64906GATE SUB-ASSY, REAR SWING, RH

main67005-90800iBJ4#..TPC198008-198410

FOLDING TYPE

main67005-90802iBJ4#..TPC198008-198011

main67005-90804iBJ41..VLS198008-198110

main67005-90808iBJ4#..TPC198011-198410

64907GATE SUB-ASSY, REAR SWING, LH

main64906-90308iBJ41..VLS198008-198110

main64906-90309iBJ4#..TPC198008-198011

main67006-90800iBJ4#..TPC198008-198410

FOLDING TYPE

main67006-90807iBJ4#..TPC198011-198410

64909PLATE SUB-ASSY, REAR SWING DOOR TARPAULIN

main64909-90315×2iBJ4#..TPC198008-198410

64921WEATHERSTRIP, REAR SWING GATE, RH

main64921-90301iBJ41..VLS198008-198110

main64963-90314×2iBJ4#..TPC198008-198410

64922WEATHERSTRIP, REAR SWING GATE, LH

main64922-90301iBJ41..VLS198008-198110

main64963-90314iBJ4#..TPC198008-198410

64963CUSHION, REAR SWING GATE, LOWER

main64962-90314×2iBJ4#..TPC198008-198410

64970FRAME ASSY, REAR SWING DOOR, RH

main64970-90304iBJ4#..TPC198008-198410

64980FRAME ASSY, REAR SWING DOOR, LH

main64980-90303iBJ4#..TPC198008-198410

65909TARPAULIN SUB-ASSY, REAR SWING DOOR

main65908-90315×2iBJ4#..TPC198008-198410

67398PROTECTOR, BACK DOOR HARNESS

main67398-90800iBJ4#..TPC,VLS198008-198410

main67398-90801iBJ4#..VKC..(40K,50K)198008-198410

68162WEATHERSTRIP, REAR SWING DOOR, RH

main68163-90300iBJ4#..TPC198008-198410

68163BWEATHERSTRIP, REAR SWING DOOR, CENTER

main68161-90314iBJ4#..TPC198008-198410

68164WEATHERSTRIP, REAR SWING DOOR, LH

main68162-90300iBJ4#..TPC198008-198410

68966CHANNEL, REAR SWING DOOR, SIDE

main68966-90314×3iBJ4#..TPC198008-198410

68967CHANNEL, REAR SWING DOOR, UPPER

main68967-90314×2iBJ4#..TPC198008-198410

68968HINGE ASSY, BACK DOOR, UPPER

main68907-90314iBJ4#..TPC198008-198410

RH

main68908-90314iBJ4#..TPC198008-198410

LH

9011906085

main90119-06085

9017905095

main90179-05095

9165140816

main91651-40816

9331515012

main93315-15012

9352013010

main93520-13010

21 parts on this diagram · 3 diagrams in section
