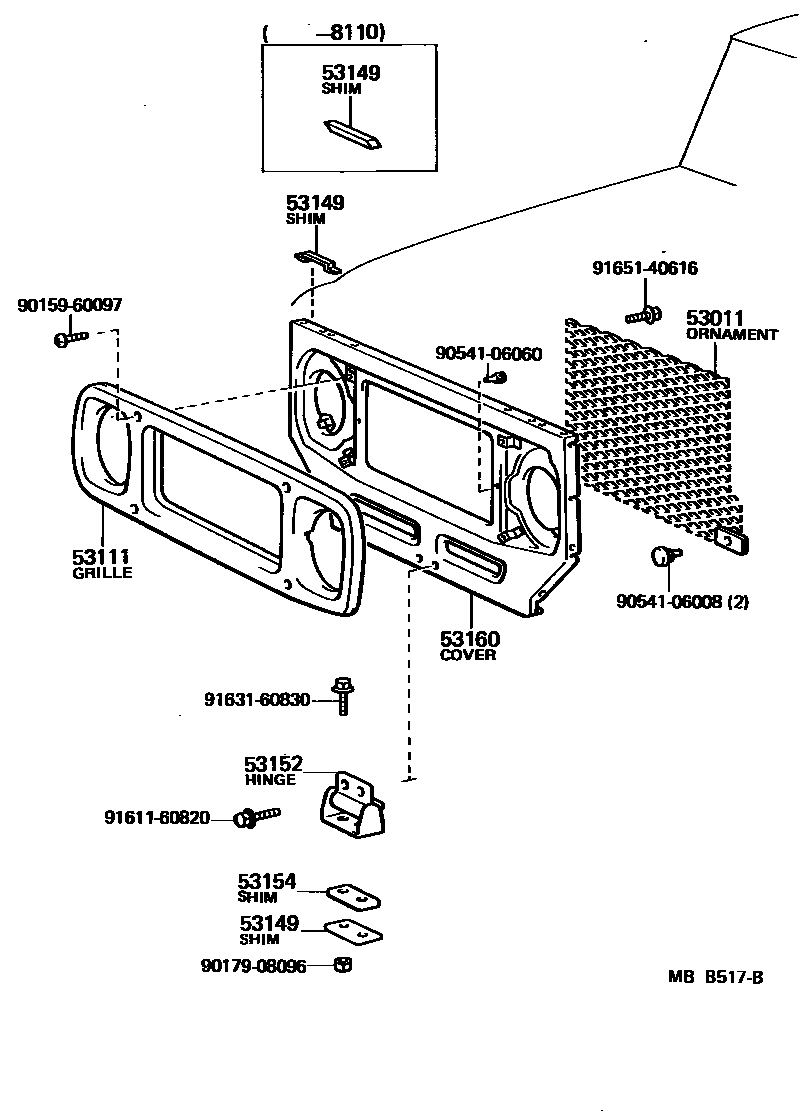

RADIATOR GRILLE

53011ORNAMENT SUB-ASSY, RADIATOR GRILLE

main53011-90305iBJ4#198008-198410

53111GRILLE, RADIATOR

main53111-90301iBJ4#198008-198410

W/CHROME PLATED

main53111-90302iBJ4#..40K,50K198008-198410

53149SHIM,RADIATOR COVER CUSHION

main51464-90800×4iBJ4#198110-198410

UPR

main53148-90300×4iBJ4#198008-198110

main53149-90800iBJ4#198308-198410

LWR

53152HINGE, RADIATOR COVER SUPPORT

main53107-90300iBJ4#198008-198410

53154SHIM,RADIATOR COVER SUPPORT BRACKET

main53154-60010iBJ4#198008-198308

main53154-90800iBJ4#198308-198410

53160COVER ASSY, RADIATOR

main53106-90304iBJ4#198008-198110

main53106-90803iBJ4#198110-198210

main53106-90807iBJ4#198210-198410

9015960097

main90159-60097

9017908096

main90179-08096

9054106008

main90541-06008

9054106060

main90541-06060

9161160820

main91611-60820

9163160830

main91631-60830

9165140616

main91651-40616

13 parts on this diagram · 1 diagram in section
