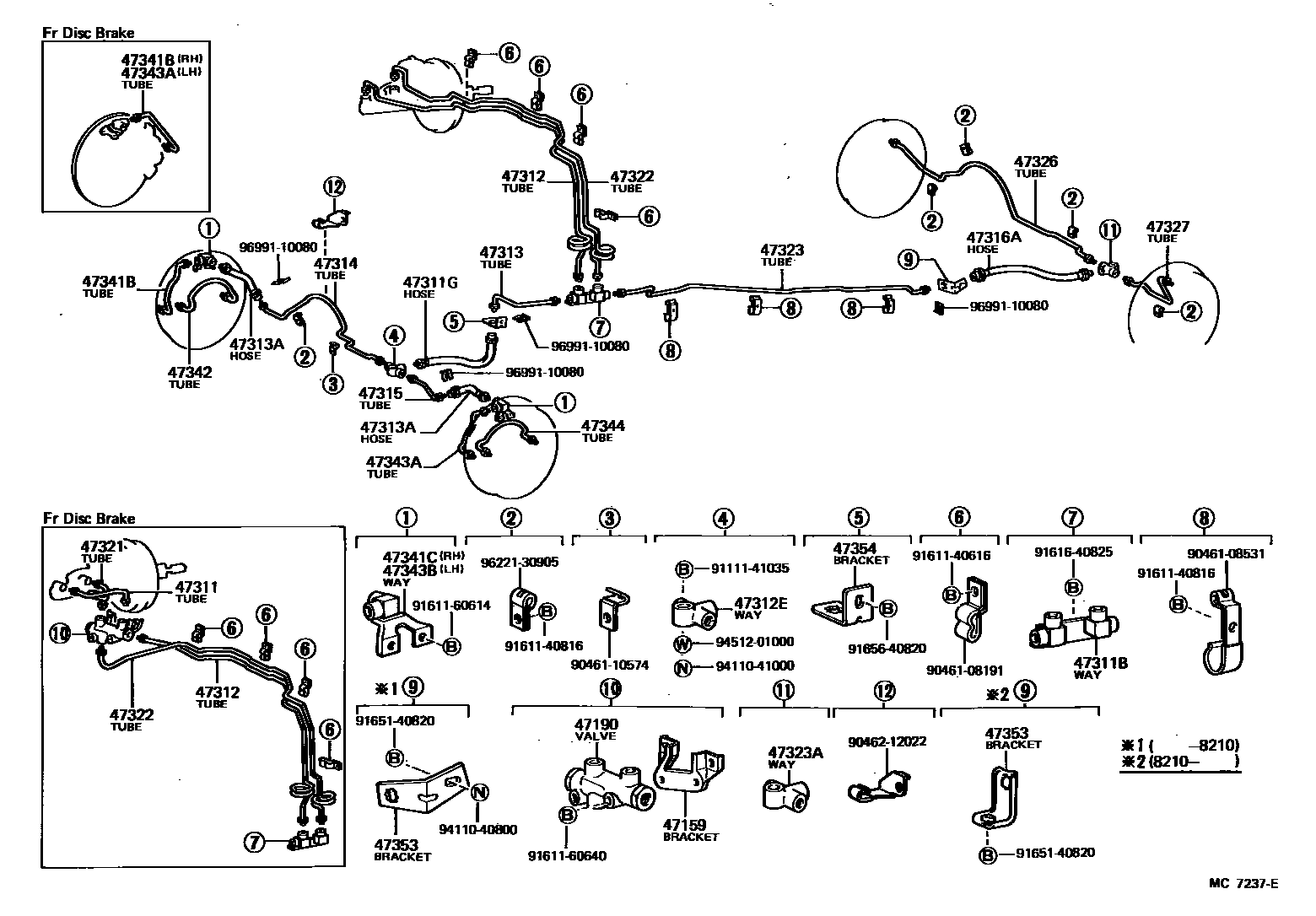

BRAKE TUBE & CLAMP
47159BRACKET, PROPORTIONING VALVE
47190VALVE ASSY, PROPORTIONING & BY-PASS
47311TUBE, FRONT BRAKE, NO.1
FR DISC BRAKE
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
FR DRUM BRAKE
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
FR DRUM BRAKE
FR DISC BRAKE
47323TUBE, REAR BRAKE, NO.3
47323AWAY, NO.3(FOR REAR BRAKE TUBE)
47326TUBE, REAR BRAKE, NO.6
47327TUBE, REAR BRAKE, NO.7
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
FR DRUM BRAKE
FR DRUM BRAKE
FR DISC BRAKE
47341CWAY(FOR WHEEL CYLINDER FRONT RH TUBE)
47342TUBE, WHEEL CYLINDER, FRONT RH NO.2
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
FR DRUM BRAKE
FR DRUM BRAKE
FR DISC BRAKE
47343BWAY(FOR WHEEL CYLINDER FRONT LH TUBE)
47344TUBE, WHEEL CYLINDER, FRONT LH NO.2
47353BRACKET, FLEXIBLE HOSE(FOR REAR)
47354BRACKET, FRONT FLEXIBLE HOSE
9046108191
main90461-08191
9046108531
main90461-08531
9046110574
main90461-10574
9046212022
main90462-12022
9111141035
main91111-41035
9161140616
main91611-40616
9161140816
main91611-40816
9161160614
main91611-60614
9161160640
main91611-60640
9161640825
main91616-40825
9165140820
main91651-40820
9165640820
main91656-40820
9411040800
main94110-40800
9411041000
main94110-41000
9451201000
main94512-01000
9622130905
main96221-30905
9699110080
main96991-10080
43 parts on this diagram · 1 diagram in section
