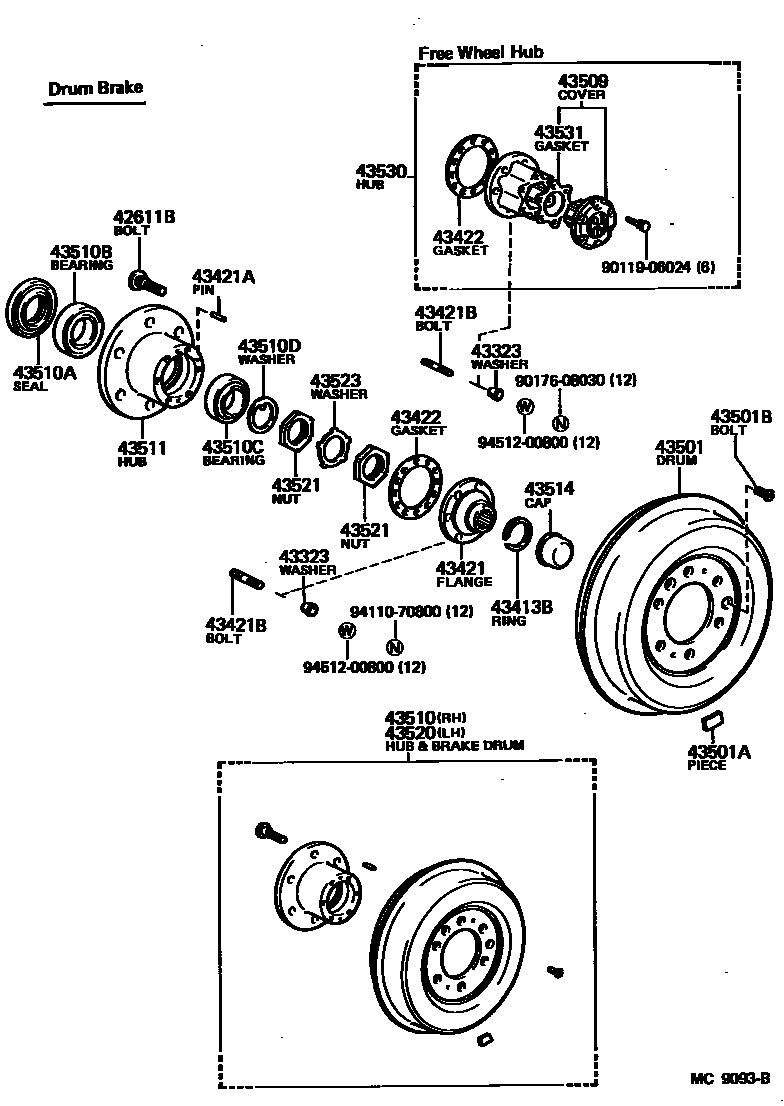

FRONT AXLE HUB
42611BBOLT, HUB (FOR FRONT AXLE)
FR DRUM BRAKE
FR DISC BRAKE
43323WASHER, CONE (FOR FRONT AXLE SHAFT)
43413BRING, DRIVE SHAFT SNAP
43421FLANGE, FRONT AXLE OUTER SHAFT
43421APIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)
43421BBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)
43422GASKET, FRONT AXLE OUTER SHAFT FLANGE
43501DRUM SUB-ASSY, FRONT BRAKE
43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)
43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)
43509COVER SUB-ASSY, FREE WHEEL HUB
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510ASEAL, OIL (FOR FRONT AXLE HUB)
43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)
43511HUB, FRONT AXLE
FR DISC BRAKE
FR DRUM BRAKE
43514CAP, FRONT HUB GREASE
43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43521NUT, FRONT WHEEL ADJUSTING
43523WASHER, FRONT WHEEL ADJUSTING LOCK
43531GASKET, FREE WHEEL HUB
9011906024
main90119-06024
9017608030
main90176-08030
9411070800
main94110-70800
9451200800
main94512-00800
27 parts on this diagram · 2 diagrams in section
