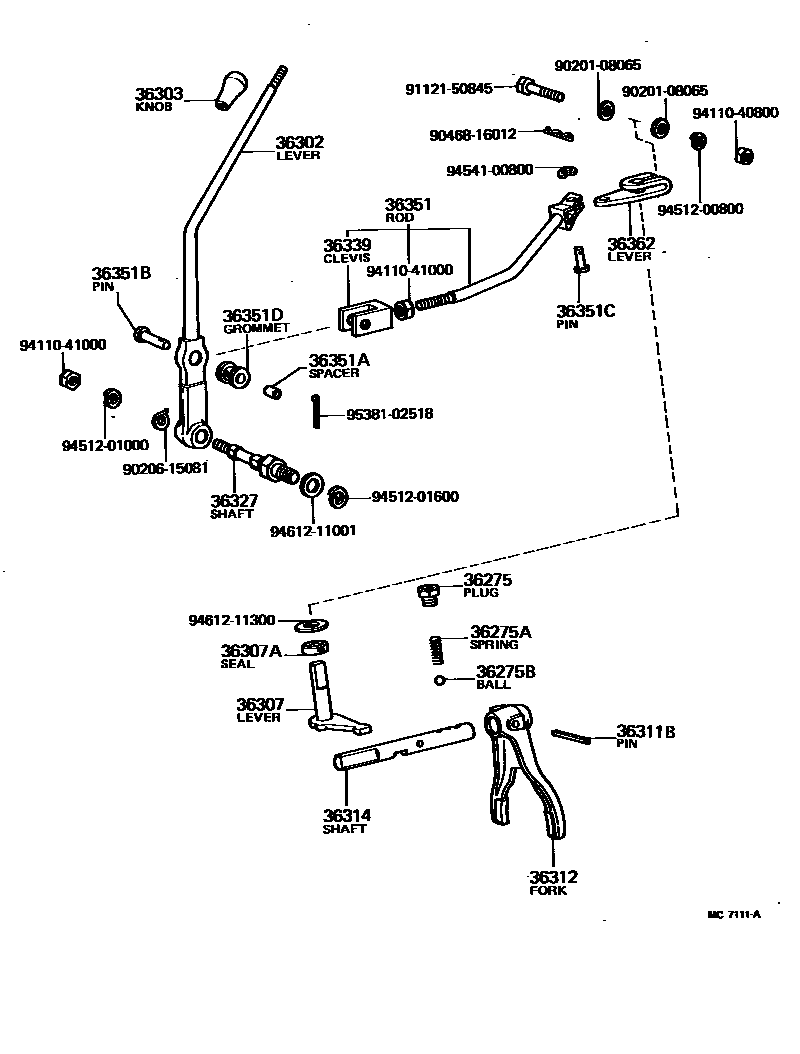

TRANSFER LEVER & SHIFT ROD

36275PLUG, SHIFT DETENT BALL SPRING

main90341-15001iBJ4#198008-198410

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-14029iBJ4#198008-198410

36275BBALL, SHIFT DETENT

main90360-10003iBJ4#198008-198410

36302LEVER SUB-ASSY, TRANSFER HIGH & LOW SHIFT

main36322-60051iBJ4#..4F198008-198410

main36322-60060iBJ4#..5F198210-198410

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60090iBJ4#198008-198410

36307LEVER SUB-ASSY, HIGH & LOW SHIFT INNER

main36307-60040iBJ4#198008-198410

36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)

main90313-13001iBJ4#198008-198410

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05016iBJ4#198008-198410

36312FORK, TRANSFER GEAR SHIFT, NO.2

main36312-60040iBJ4#198008-198410

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60030iBJ4#198008-198410

36327SHAFT, TRANSFER SHIFT LEVER

main36327-60030iBJ4#198008-198410

36339CLEVIS, TRANSFER SHIFT ROD

main36338-60020iBJ4#198008-198410

36351ROD, HIGH & LOW SHIFT, NO.1

main36308-60040iBJ4#..4F198008-198410

main36308-60050iBJ4#..5F198210-198410

36351ASPACER (FOR HIGH & LOW SHIFT ROD)

main90560-10406iBJ4#198008-198410

36351BPIN (FOR HIGH & LOW SHIFT ROD)

main90240-10027iBJ4#198008-198410

36351CPIN (FOR HIGH & LOW SHIFT ROD)

main90240-08128iBJ4#198008-198410

36351DGROMMET (FOR HIGH & LOW SHIFT ROD)

main90480-17401iBJ4#198008-198410

36362LEVER, TRANSFER HIGH AND LOW SHIFT OUTER

main36362-60020iBJ4#198008-198410

9020108065

main90201-08065

9020615081

main90206-15081

9046816012

main90468-16012

9112150845

main91121-50845

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

9451201600

main94512-01600

9454100800

main94541-00800

9461211001

main94612-11001

9461211300

main94612-11300

9538102518

main95381-02518

31 parts on this diagram · 1 diagram in section
