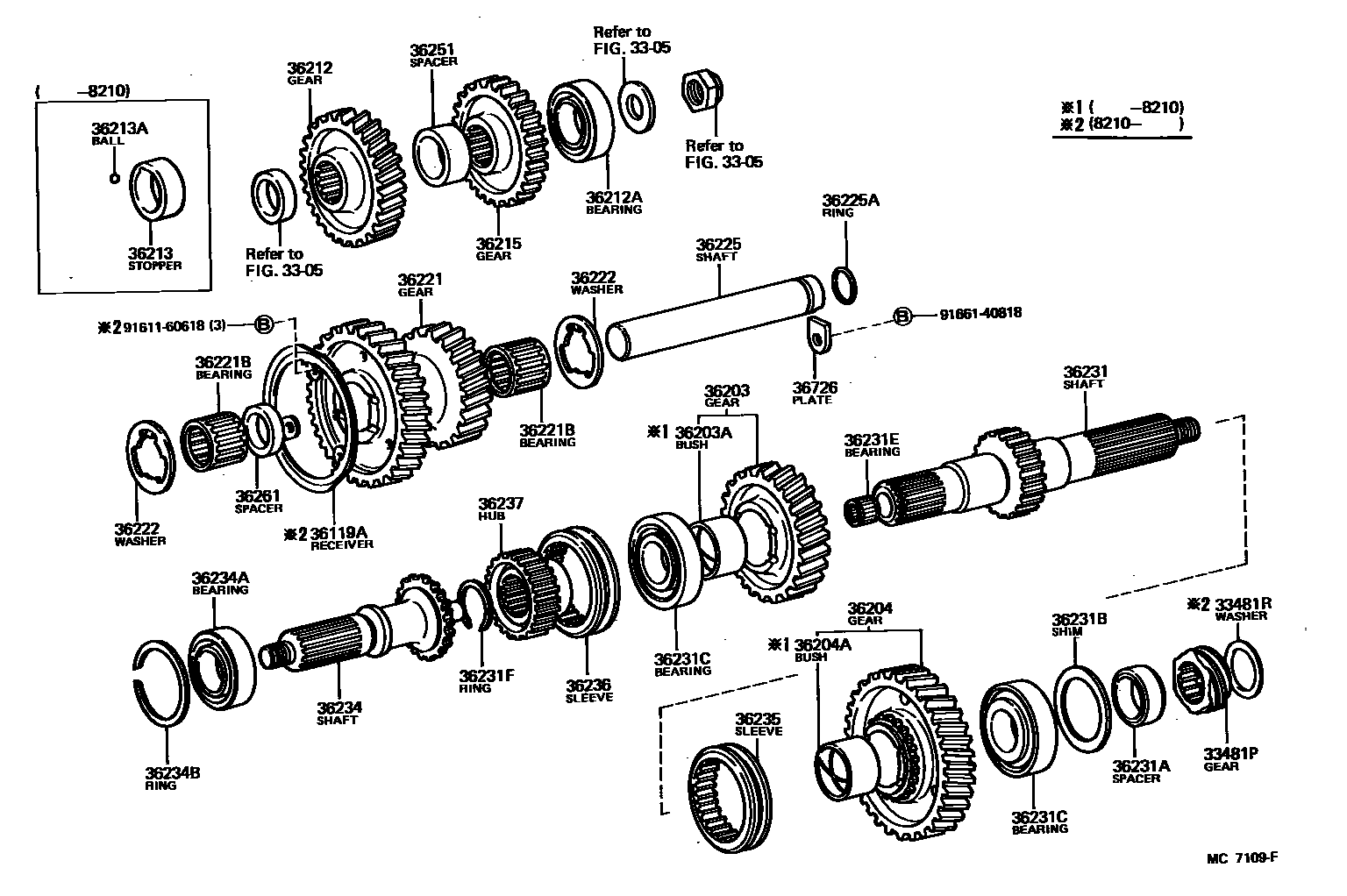

TRANSFER GEAR
3305TRANSMISSION GEAR (MTM)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481RWASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)
36119ARECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36203ABUSH, SOLID (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36204ABUSH, SOLID (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36215GEAR, POWER TAKE-OFF DRIVE
36221BBEARING (FOR TRANSFER IDLER GEAR)
36222WASHER, TRANSFER IDLER GEAR SIDE THRUST
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FR
RR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36251SPACER, TRANSFER INPUT SHAFT
36261SPACER, TRANSFER IDLER GEAR
36726PLATE, LOCK (FOR TRANSFER GEAR)
9161160618
main91611-60618
9166140818
main91661-40818
35 parts on this diagram · 1 diagram in section
