Toyota 331180 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51773ACLIP, STEP PLATE COVER
51773CCOVER, STEP PLATE, RH
51774CCOVER, STEP PLATE, LH
51787ESTAY, STEP PLATE, NO.2 RH
51788BSTAY, STEP PLATE, NO.2 LH
53701HAPRON SUB-ASSY, FRONT FENDER, RH
53702HAPRON SUB-ASSY, FENDER, LH
53717CAPRON, FRPNT FENDER, NO.2 RH
53718CAPRON, FRONT FENDER, NO.2 LH
54908BRACKET SUB-ASSY, TILT CAB GRIP
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
57037STAY SUB-ASSY, FRONT STEP, RH
57038STAY SUB-ASSY, FRONT STEP, LH
57125EREINFORCEMENT, FRONT SIDE MEMBER, RH
57126EREINFORCEMENT, FRONT SIDE MEMBER, LH
57135ABRACKET, FRONT FLOOR SIDE, RH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57411BMEMBER, FLOOR SIDE, INNER RH
57412BMEMBER, FLOOR SIDE, INNER LH
5752HOLE PLUG
58043CPANEL SUB-ASSY, FLOOR SIDE, REAR RH
58044CPANEL SUB-ASSY, FLOOR SIDE, REAR LH
58113APANEL, FRONT FLOOR, CENTER
58115BPANEL, FRONT FLOOR, REAR
58123ASUPPORT, SHIFT & SELECT LEVER
58159BSHEET, FRONT FLOOR
58172APLATE, PARKING BRAKE MOUNTING
58181ARETAINER, SEAT RAIL, FRONT
58182ARETAINER, SEAT RAIL, NO.2
58182BRETAINER, SEAT RAIL, FRONT LH
58183FREINFORCEMENT, REAR MOUNTING, RH
58184EREINFORCEMENT, REAR MOUNTING, LH
58192BPLATE, FRONT FLOOR, REAR
58215JBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58223GREINFORCEMENT, SEAT SET, NO.1
58224HREINFORCEMENT, SEAT SET, NO.2
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58256DBRACKET, FRONT FLOOR HARNESS
58295CBRACKET, FLOOR SHIFT LEVER, NO.1
58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58319LBRACKET, FRONT FLOOR SIDE PANEL
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
58412BREINFORCEMENT, ENGINE SUB COVER
58848ACOVER, SHIFT LEVER HOLE
58853APACKING, SHIFT LEVER HOLE
58995CBRACKET, CONSOLE BOX MOUNTING, NO.1
58996BBRACKET, CONSOLE BOX MOUNTING, NO.2
61403EPANEL SUB-ASSY, FRONT STEP
61415EPANEL, FRONT STEP UNDER, RH
61416EPANEL, FRONT STEP UNDER, LH
61455CRETAINER, FRONT STEP, RH
61456CRETAINER, FRONT STEP, LH
64106CREINFORCEMENT SUB-ASSY, BACK FRAME, NO.2
64155CPLATE, BACK FRAME, RH
64156CPLATE, BACK FRAME, LH
64171DBRACKET, REAR MOUNTING, RH
64172ABRACKET, REAR MOUNTING, LH
9011906801
9011906960
9017906323
9017908184
91551A0814
9167380820

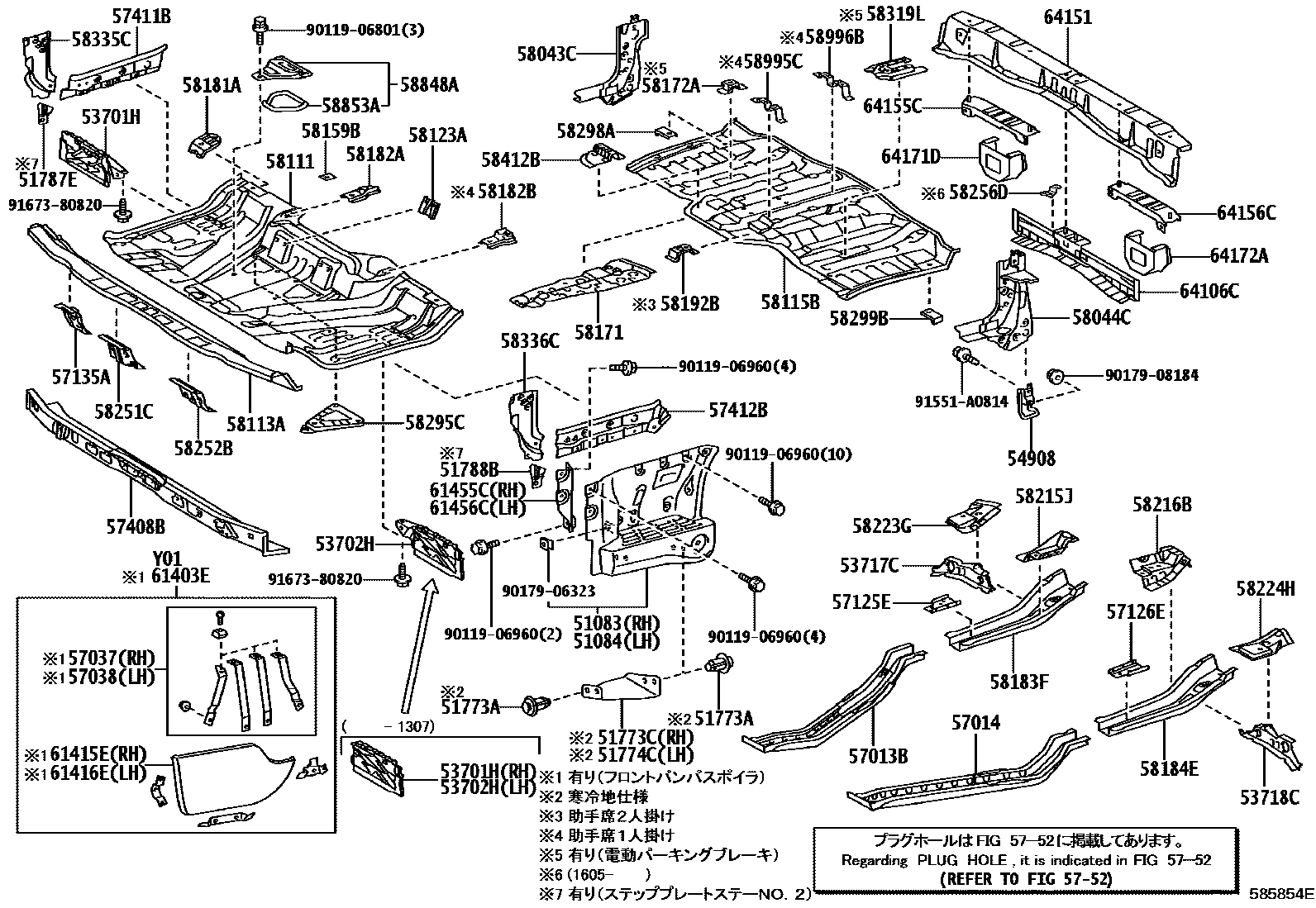

73 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota 331180
This section contains 93 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota 331180. Key components include: STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, BRACKET, ENGINE SIDE COVER, CLIP, STEP PLATE COVER, COVER, STEP PLATE, RH.
