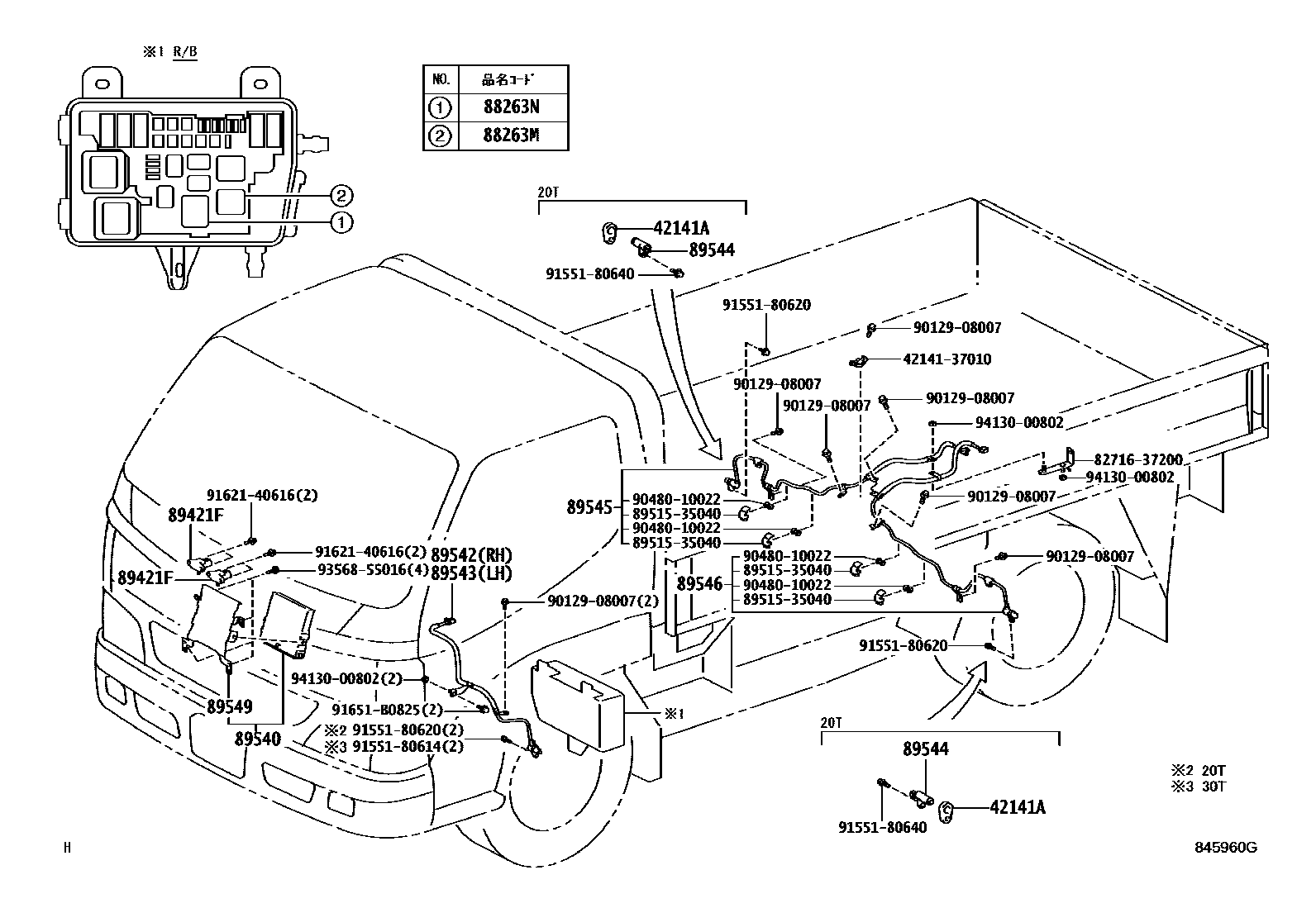

ABS & VSC

42141AATTACHMENT, SKID CONTROL WIRE, NO.1

main42141-37160×2iXKU414..20T200610-201106

88263MRELAY, ABS SOLENOID

main88263-36050iXKU414,424200310-200610

88263NRELAY, ABS MOTOR

main88263-36040iXKU414,424200310-200610

89421FSENSOR, VACUUM (FOR SKID CONTROL)

main89421-37010×2iXKU414,424200610-201008

main89421-37030×2iXKU414,424201009

89540COMPUTER ASSY, SKID CONTROL

main89540-37230iXKU414,424200310-200610

main89540-37280iXKU414..6FC200801

main89540-37300iXKU414,424..6F200610

89542SENSOR, SPEED, FRONT RH

main89542-37090iXKU414,424..30T,35T200310-200610

main89542-37140iXKU414..20T200610-201106

89543SENSOR, SPEED, FRONT LH

main89543-37090iXKU414,424..30T,35T200310-200505

main89543-37140iXKU414..20T200310-200505

main89543-37160iXKU414,424..30T,35T200505-200610

main89543-37190iXKU414..20T200505-200610

89544SENSOR, SKID CONTROL

main89544-36030×2iXKU414..20T200310-200610

89545SENSOR, SPEED, REAR RH

main89545-37040iXKU414,424..30T,35T200310-200610

89546SENSOR, SPEED, REAR LH

main89546-37040iXKU414,424..30T,35T200310-200610

89549BRACKET, SKID CONTROL COMPUTER

main89549-37040iXKU414,424200310-200610

4214137010ATTACHMENT, SKID CONTROL WIRE, NO.1

main42141-37010

8271637200BRACKET, WIRING HARNESS CLAMP, LH

main82716-37200

8951535040CLIP

main89515-35040

9012908007

main90129-08007

9048010022

main90480-10022

9155180614

main91551-80614

9155180620

main91551-80620

9155180640

main91551-80640

9162140616

main91621-40616

91651B0825

main91651-B0825

9356855016

main93568-55016

9413000802

main94130-00802

23 parts on this diagram · 1 diagram in section
