Toyota 331180 — HEADLAMP CLEANER
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85272ACLAMP, HEADLAMP CLEANER, NO.1
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85336BPACKING, HEADLAMP CLEANER WASHER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
8119237020SEAL, HEADLAMP
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271134450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
85275EV020WIRING SUB-ASSY, HEADLAMP CLEANER
85276EV020RELAY, CLEANER CONTROL
8527977010RELAY ASSY, HEADLAMP CLEANER WASHER
9007515053
9007515057
9007515100
9007517002
9007517009
9007517020
9007517021
9007590003
9007590006
9007591002
9007591004
9046709173
S900722136
S900722137

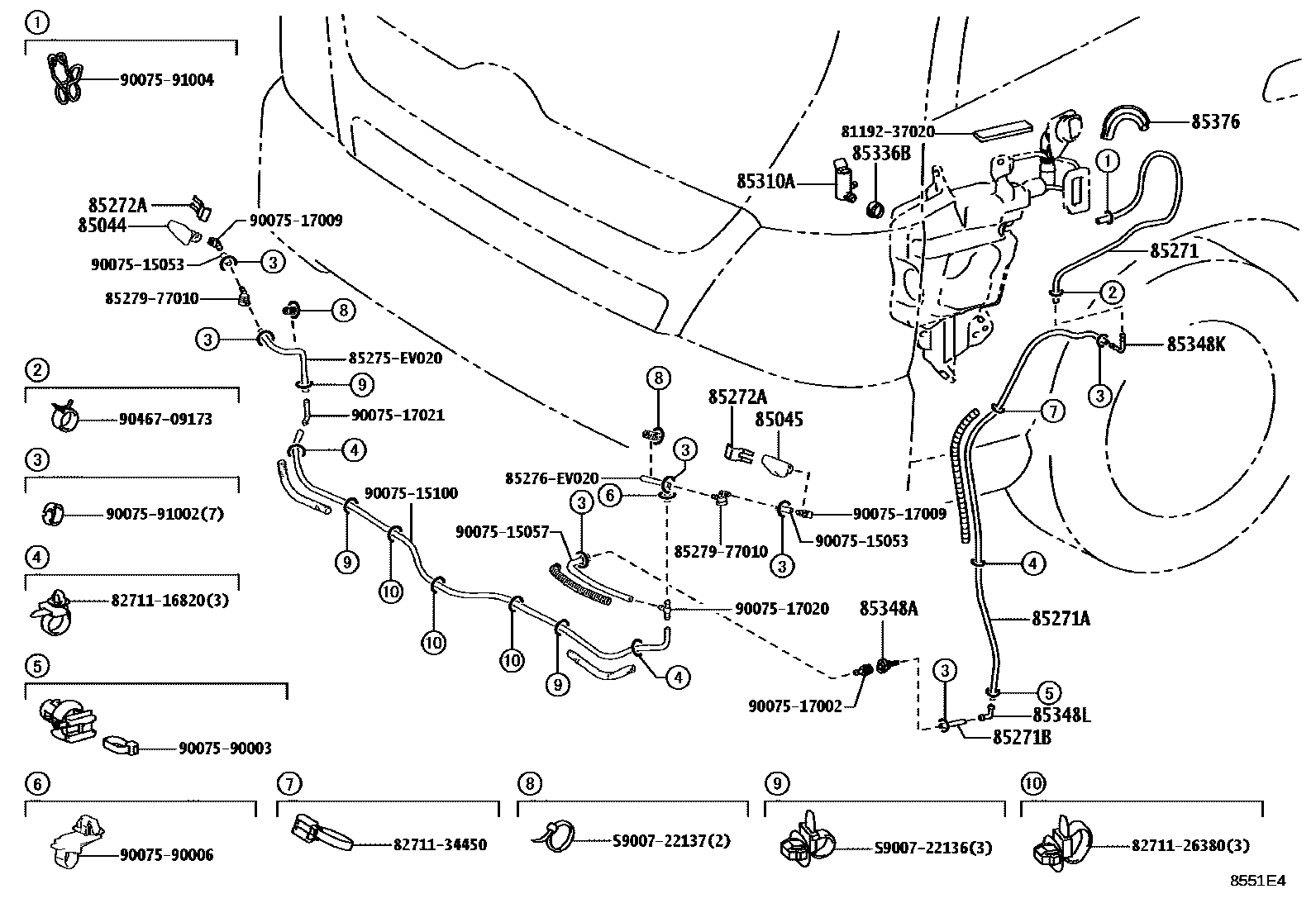

33 parts on this diagram · 2 diagrams in section
HEADLAMP CLEANER for Toyota 331180
This section contains 35 genuine Toyota parts for the HEADLAMP CLEANER system of the Toyota 331180. Key components include: NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH, NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH, HOSE, HEADLAMP CLEANER, NO.1, HOSE, HEADLAMP CLEANER, NO.2, HOSE, HEADLAMP CLEANER, NO.3.
