Toyota 331180 — WINDSHIELD WASHER
8501WINDSHIELD WIPER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85316BCAP, WASHER, INLET
85319AHOSE, INLET
85319BHOSE, WINDOW WASHER
85319EINLET WASHER
85332CCAP, FRONT WASHER TANK
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85349LJOINT, WINDSHIELD WASHER ELBOW, NO.1
85361HBRACKET, WASHER
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
85379ASPRING, WINDSHIELD WASHER HOSE
85389DSPRING(WASHER HOSE)
87268XPROTECTOR
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
9011908A87
38 parts on this diagram · 2 diagrams in section

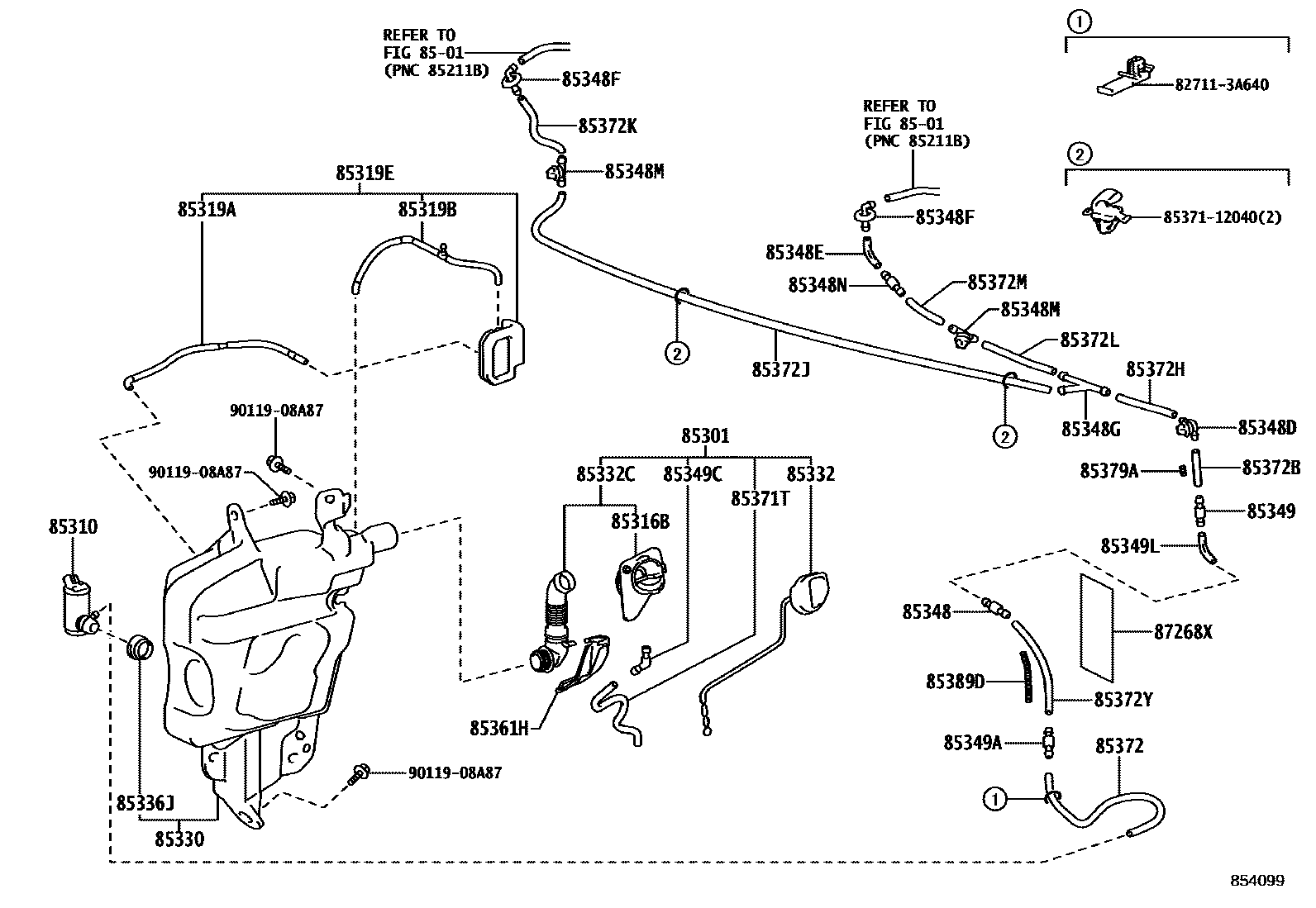

WINDSHIELD WASHER for Toyota 331180
This section contains 41 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota 331180. Key components include: WINDSHIELD WIPER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET.
