Toyota 331180 — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

28800FCABLE, BATTERY TO BATTERY

28800MTERMINAL, BATTERY POSITIVE

28800UCOVER, CONNECTOR(FOR BATTERY TERMINAL), NO.2

8202WIRING & CLAMP

→ Go to FIG 82-02

82823DCAP, TERMINAL

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

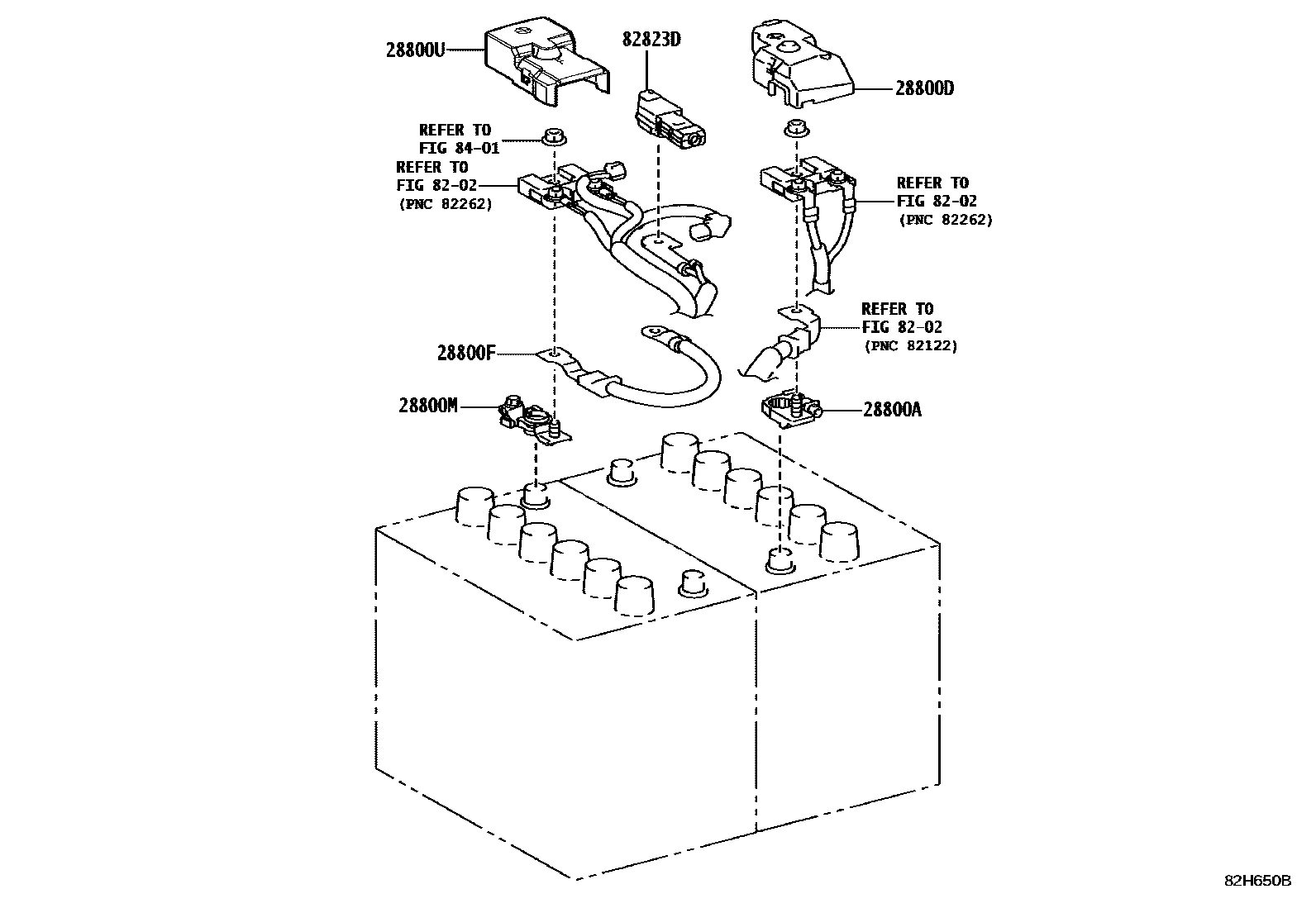

8 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota 331180

This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota 331180. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), CABLE, BATTERY TO BATTERY, COVER, CONNECTOR(FOR BATTERY TERMINAL), NO.2.
