Toyota 331180 — REFLEX REFLECTOR

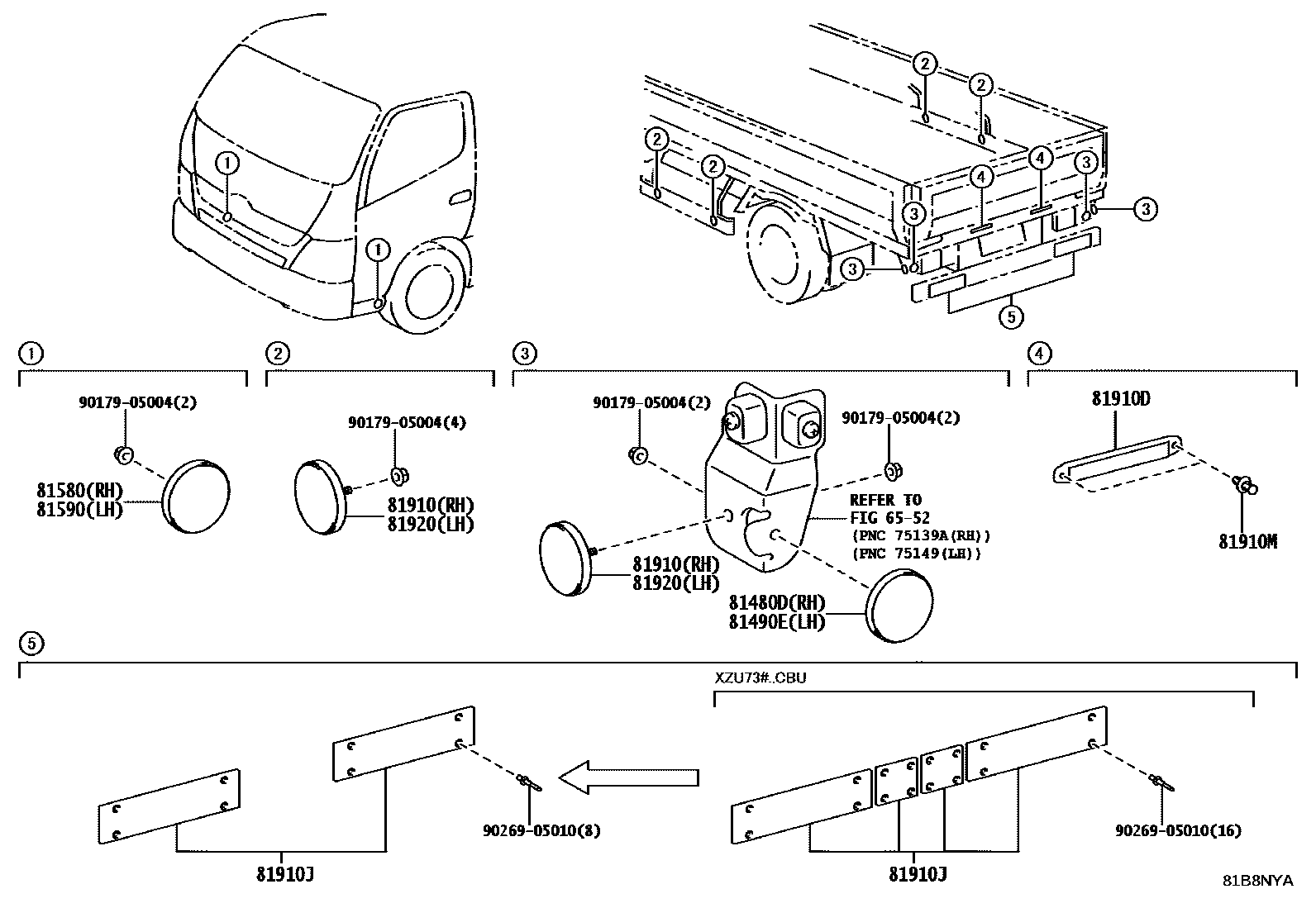

Parts diagram
6552REAR BODY FLOOR & FENDER
→ Go to FIG 65-52
81480DREFLECTOR ASSY, REFLEX, RH
81490EREFLECTOR ASSY, REFLEX, LH
81580REFLECTOR ASSY, REFLEX SIDE, RH
81910-37070
81590REFLECTOR ASSY, REFLEX SIDE, LH
81910-37070
81910REFLECTOR ASSY, REFLEX, RH
81910-25041
81910-37070
81910-E0070
81910-37081
90467-05090
81910DREFLECTOR ASSY, REFLEX, REAR
81910JREFLECTOR ASSY, REFLEX, REAR NO.2
81910MCLIP OR RIVET, REFLEX REFLECTOR
81920REFLECTOR ASSY, REFLEX, LH
81910-37070
9017905004
90179-05004
9026905010
90269-05010

12 parts on this diagram · 1 diagram in section

REFLEX REFLECTOR for Toyota 331180

This section contains 12 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota 331180. Key components include: REAR BODY FLOOR & FENDER, REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, LH, REFLECTOR ASSY, REFLEX SIDE, RH, REFLECTOR ASSY, REFLEX SIDE, LH.
