Toyota 331180 — BATTERY CARRIER

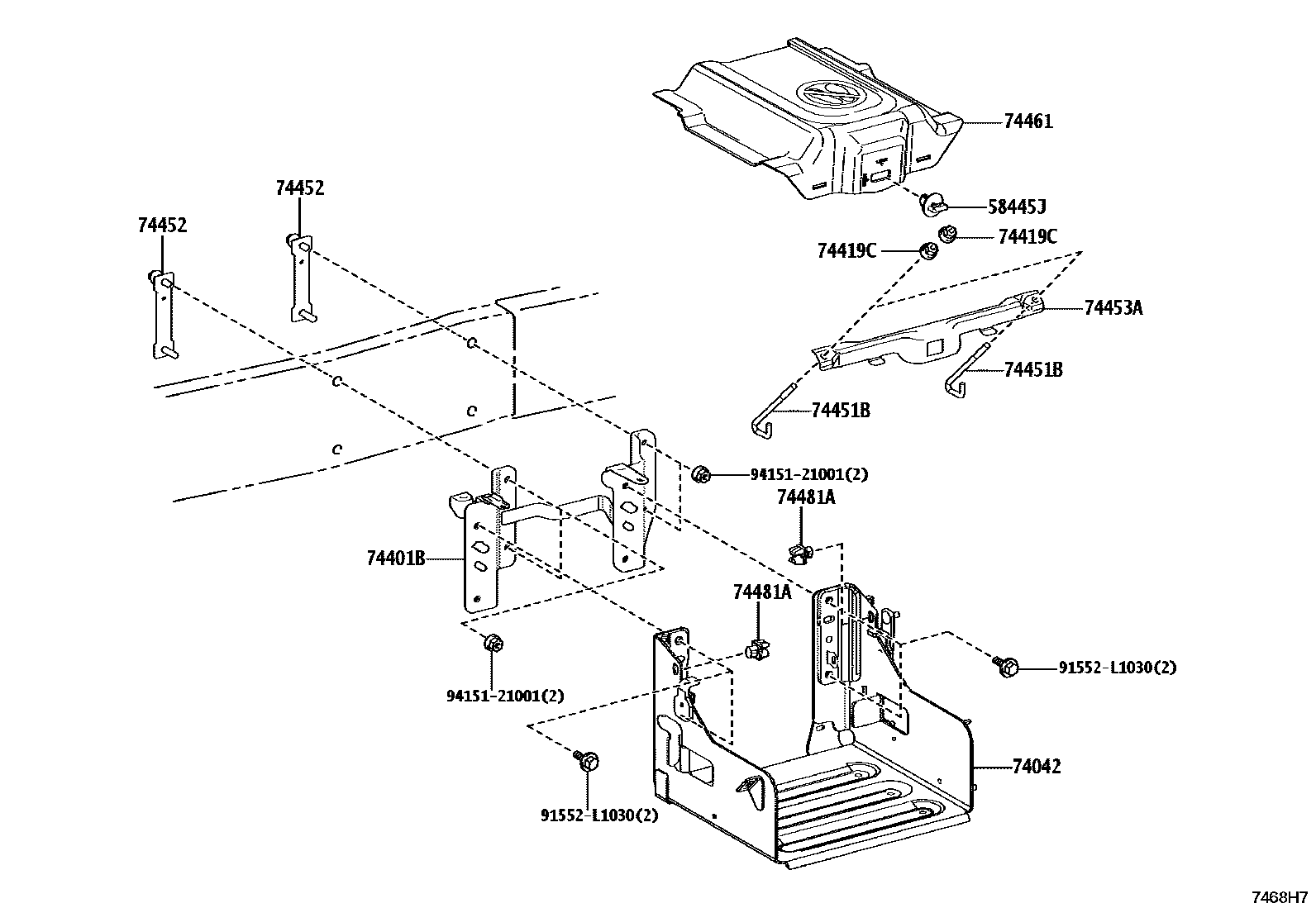

Parts diagram
58445JLOCK, BATTERY SERVICE HOLE COVER
74042BRACKET SUB-ASSY, BATTERY
74042-37540
74042-37550
74042-37560
74042-37570
74042-37600
74042-37610
74401BBRACKET SUB-ASSY, BATTERY CARRIER
74419CRETAINER, BATTERY CARRIER
74451BBOLT, BATTERY CLAMP
74452PLATE, BATTERY SET
74452-37320
74452-37410
74453ABAR, BATTERY SET PLATE
74461COVER, BATTERY
74461-37110
74461-37170
74481ACLAMP, BATTERY
91552L1030
91552-L1030
9415121001
94151-21001

11 parts on this diagram · 3 diagrams in section

BATTERY CARRIER for Toyota 331180

This section contains 17 genuine Toyota parts for the BATTERY CARRIER system of the Toyota 331180. Key components include: LOCK, BATTERY SERVICE HOLE COVER, BRACKET SUB-ASSY, BATTERY, BRACKET SUB-ASSY, BATTERY CARRIER, RETAINER, BATTERY CARRIER, PLATE, BATTERY SET.
