Toyota 331180 — REAR BODY FLOOR & FENDER

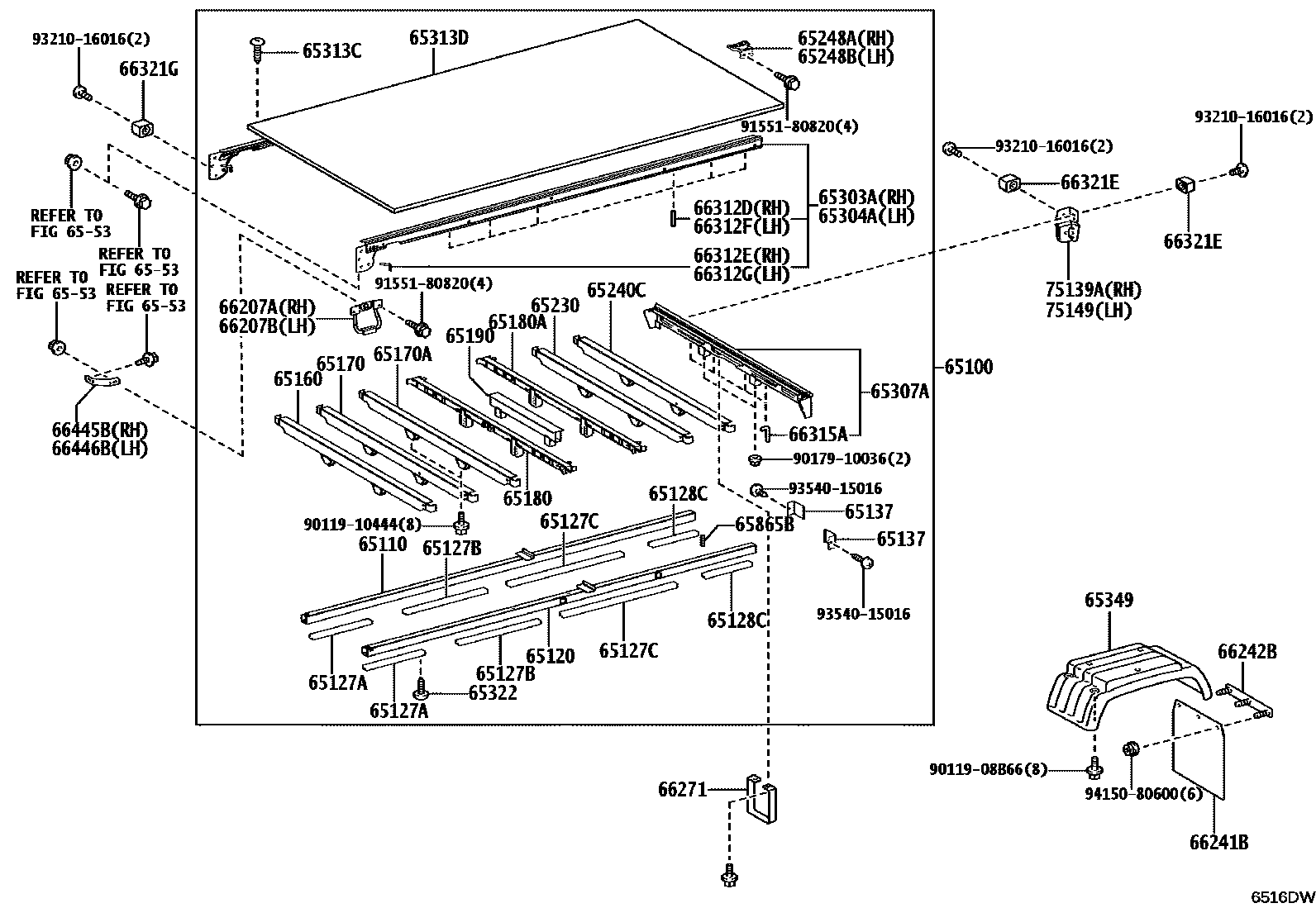

Parts diagram

65110SILL ASSY, MAIN, RH

65120SILL ASSY, MAIN, LH

65127ASHIM, MAIN SILL, LOWER NO.1

65127BSHIM, MAIN SILL, LOWER NO.2

65127CSHIM, MAIN SILL, LOWER NO.3

65128CSHIM, MAIN SILL, LOWER NO.4

65137COVER, MAIN SILL END

65160SILL ASSY, CROSS, NO.2

65170SILL ASSY, CROSS, NO.2

65170ASILL ASSY, CROSS, NO.3

65180ASILL ASSY, CROSS, NO.6

65190SILL ASSY, CROSS, NO.5

65230SILL ASSY, CROSS, NO.8

65240CSILL ASSY, CROSS, NO.9

65248ABRACKET, REAR CROSS SILL MOUNTING, RH

65248BBRACKET, REAR CROSS SILL MOUNTING, LH

65303AFRAME SUB-ASSY, FLOOR SIDE, RH

65304AFRAME SUB-ASSY, FLOOR SIDE, LH

65307AFRAME SUB-ASSY, FLOOR, REAR

65313CSCREW(FOR FLOOR BOARD)

65313DBOARD, FLOOR

65322NAIL

65349FENDER, FLOOR SIDE

6553REAR BODY GUARD FRAME & TAIL GATE

→ Go to FIG 65-53

65865BPIN, COVER TOP GUIDE

66207ASTEP SUB-ASSY, REAR BODY, RH

66207BSTEP SUB-ASSY, REAR BODY, LH

66241BBAFFLE, RUBBER

66242BPLATE, BAFFLE RUBBER SET

66271STEP, REAR BODY

66312DHOOK, ROPE, NO.2

66312EHOOK, ROPE, NO.2

66312FHOOK, ROPE, NO.2

66312GHOOK, ROPE, NO.2

66315AHOOK, ROPE

66321EBUMPER, GATE RUBBER

66321GBUMPER, GATE RUBBER

66445BBRACE, FRAME TO REAR BODY

66446BBRACE, FRAME TO REAR BODY, NO.2

75139ABRACKET, REFLEX REFLECTOR, RH

75149BRACKET, REFLEX REFLECTOR, LH

9011908B66

9011910444

9017910036

9155180820

9321016016

9354015016

9415080600

50 parts on this diagram · 14 diagrams in section

REAR BODY FLOOR & FENDER for Toyota 331180

This section contains 102 genuine Toyota parts for the REAR BODY FLOOR & FENDER system of the Toyota 331180. Key components include: PLATE, FLOOR BOARD SET, FRAME SUB-ASSY, FLOOR SIDE, RH, FRAME SUB-ASSY, FLOOR SIDE, LH, BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH, BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH.
