Toyota 331180 — RADIATOR GRILLE

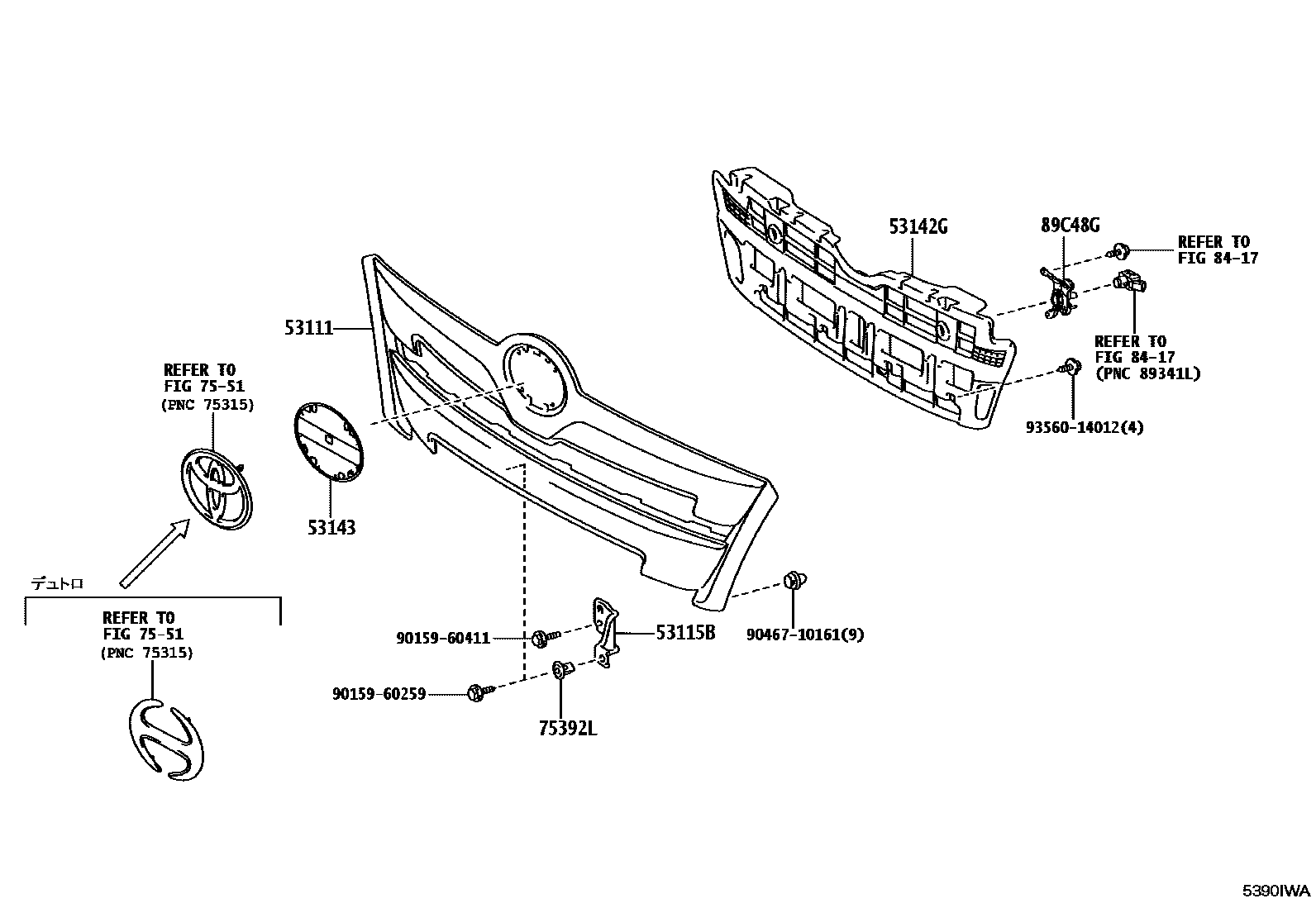

Parts diagram

53111GRILLE, RADIATOR

53115BBRACKET, RADIATOR GRILLE

53142GGARNISH, RADIATOR GRILLE, NO.2

53143GARNISH, RADIATOR GRILLE, NO.3

75392LRETAINER, OUTSIDE MOULDING

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

9015960259

9015960411

9046710161

9356014012

12 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota 331180

This section contains 12 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota 331180. Key components include: GRILLE, RADIATOR, BRACKET, RADIATOR GRILLE, GARNISH, RADIATOR GRILLE, NO.2, GARNISH, RADIATOR GRILLE, NO.3, RETAINER, OUTSIDE MOULDING.
