Toyota 331180 — FRONT BUMPER & BUMPER STAY

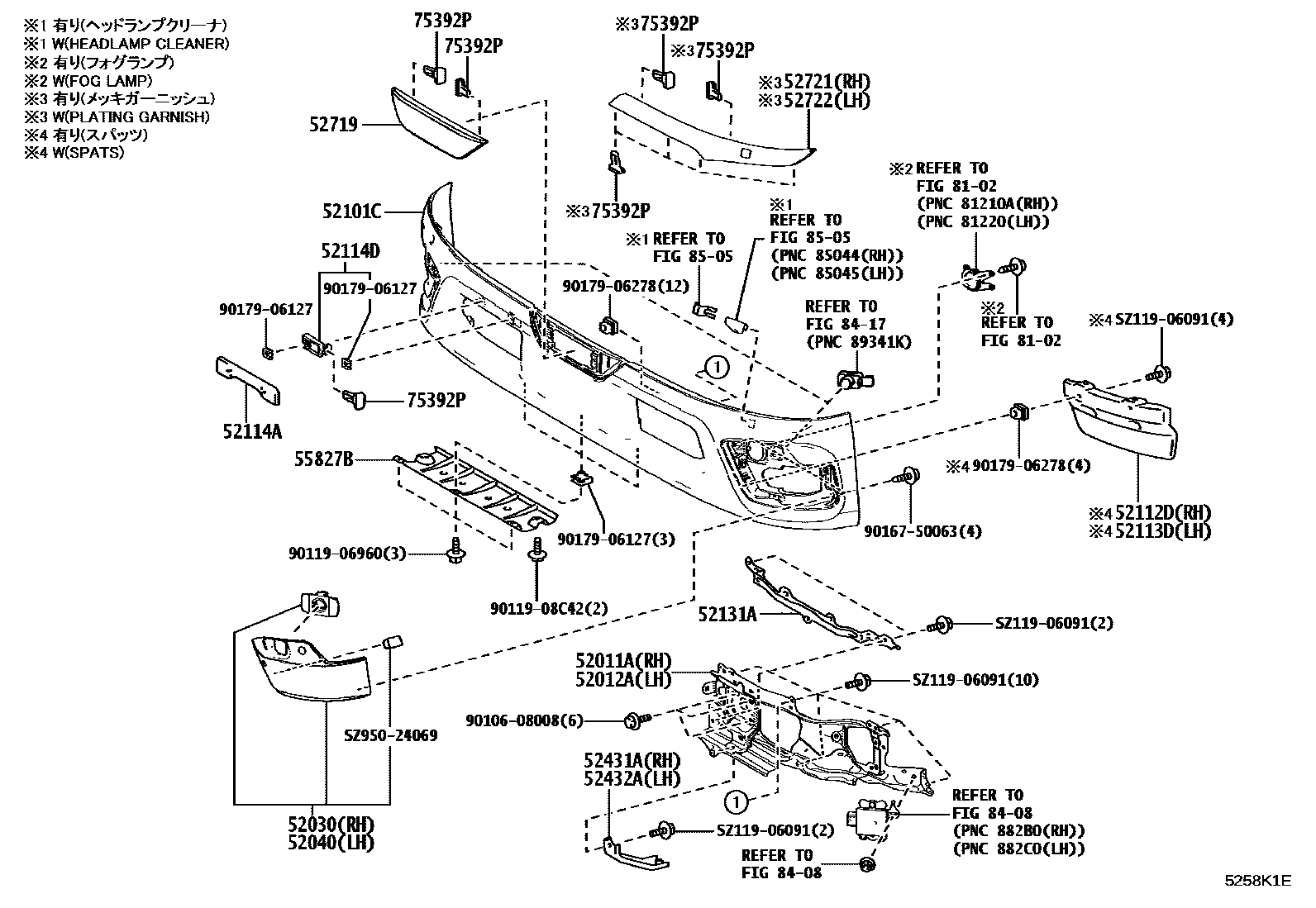

Parts diagram
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52030COVER ASSY, FRONT BUMPER HOLE, RH
52030-37020
52030-37030
52040COVER ASSY, FRONT BUMPER HOLE, LH
52040-37020
52040-37030
52101CBUMPER SUB-ASSY, FRONT
52112DEXTENSION, FRONT BUMPER, RH
52113DEXTENSION, FRONT BUMPER, LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52114DBRACKET, FRONT BUMPER EXTENSION MOUNTING, NO.2
52131AREINFORCEMENT, FRONT BUMPER
52431ABRACKET, FRONT BUMPER GUARD, RH
52432ABRACKET, FRONT BUMPER GUARD, LH
52719COVER, FRONT BUMPER MOULDING
52719-37050
52721MOULDING, FRONT BUMPER EXTENSION, RH
52721-37030
52721-37040
52722MOULDING, FRONT BUMPER EXTENSION, LH
52722-37030
52722-37040
55827BDUCT, VENTILATOR AIR GUIDE
75392PRETAINER, OUTSIDE MOULDING, NO.3
8102FOG LAMP
→ Go to FIG 81-02
8408CRUISE CONTROL (AUTO DRIVE)
→ Go to FIG 84-08
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
8505HEADLAMP CLEANER
→ Go to FIG 85-05
9010608008
90106-08008
9011906960
90119-06960
9011908C42
90119-08C42
9016750063
90167-50063
9017906127
90179-06127
9017906278
90179-06278
SZ11906091
SZ119-06091
SZ95024069
SZ950-24069

29 parts on this diagram · 4 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 331180

This section contains 52 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 331180. Key components include: FRONT BUMPER SET, ARM SUB-ASSY, FRONT BUMPER, RH, ARM SUB-ASSY, FRONT BUMPER, LH, REINFORCEMENT SUB-ASSY, FRONT BUMPER, EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH.
