Toyota 331180 — EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

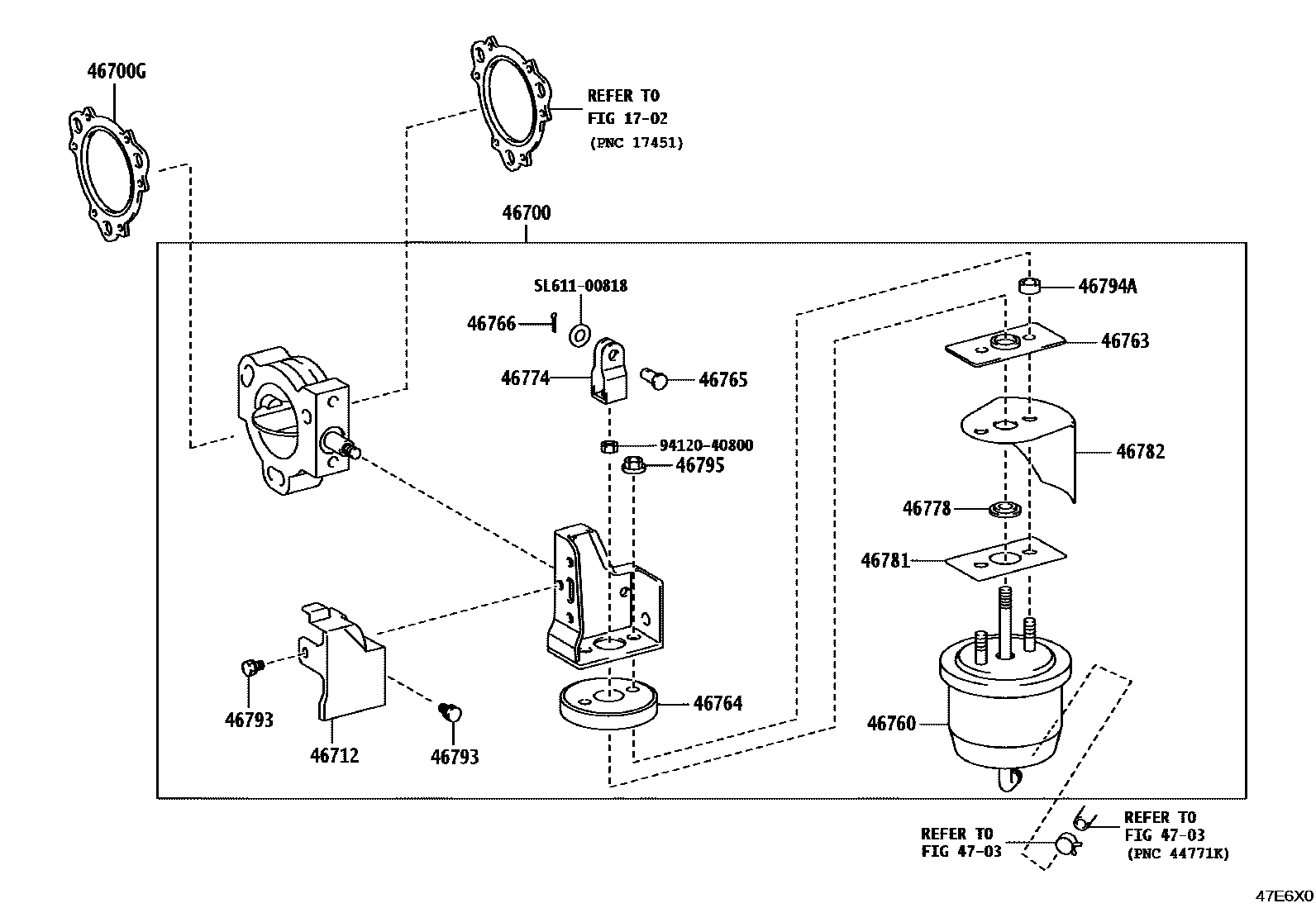

Parts diagram
1702EXHAUST PIPE
→ Go to FIG 17-02
46700RETARDER ASSY, EXHAUST
17451-E0110
46700-37241
46700GGASKET(FOR EXHAUST BRAKE)
46712COVER, EXHAUST VALVE LINK
46712-37230
46760CYLINDER ASSY, EXHAUST RETARDER VACUUM
46760-37240
46763COVER, VACUUM CYLINDER DUST, NO.1
46763-37230
46764COVER, VACUUM CYLINDER DUST, NO.2
46764-37230
46765PIN, VACUUM CYLINDER CLEVIS
46765-37240
46766PIN, VACUUM CYLINDER CLEVIS SNAP
46766-37240
46774CLEVIS, EXHAUST BRAKE ROD
46774-37240
46778BEARING, VACUUM CYLINDER
46778-37241
46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
46781-28010
46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2
46782-EV010
46793BOLT, EXHAUST VALVE LINK COVER
46793-36010
SZ010-05517
46794ACOLLAR, ACTUATOR ROD GUIDE
46795NUT, EXHAUST VALVE BRACKET
46795-36260
4703BRAKE BOOSTER & VACUUM TUBE
→ Go to FIG 47-03
9412040800
94120-40800
SL61100818
SL611-00818

19 parts on this diagram · 1 diagram in section

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER for Toyota 331180

This section contains 19 genuine Toyota parts for the EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER system of the Toyota 331180. Key components include: EXHAUST PIPE, RETARDER ASSY, EXHAUST, GASKET(FOR EXHAUST BRAKE), COVER, EXHAUST VALVE LINK, CYLINDER ASSY, EXHAUST RETARDER VACUUM.
