Toyota 331180 — BRAKE TUBE & CLAMP

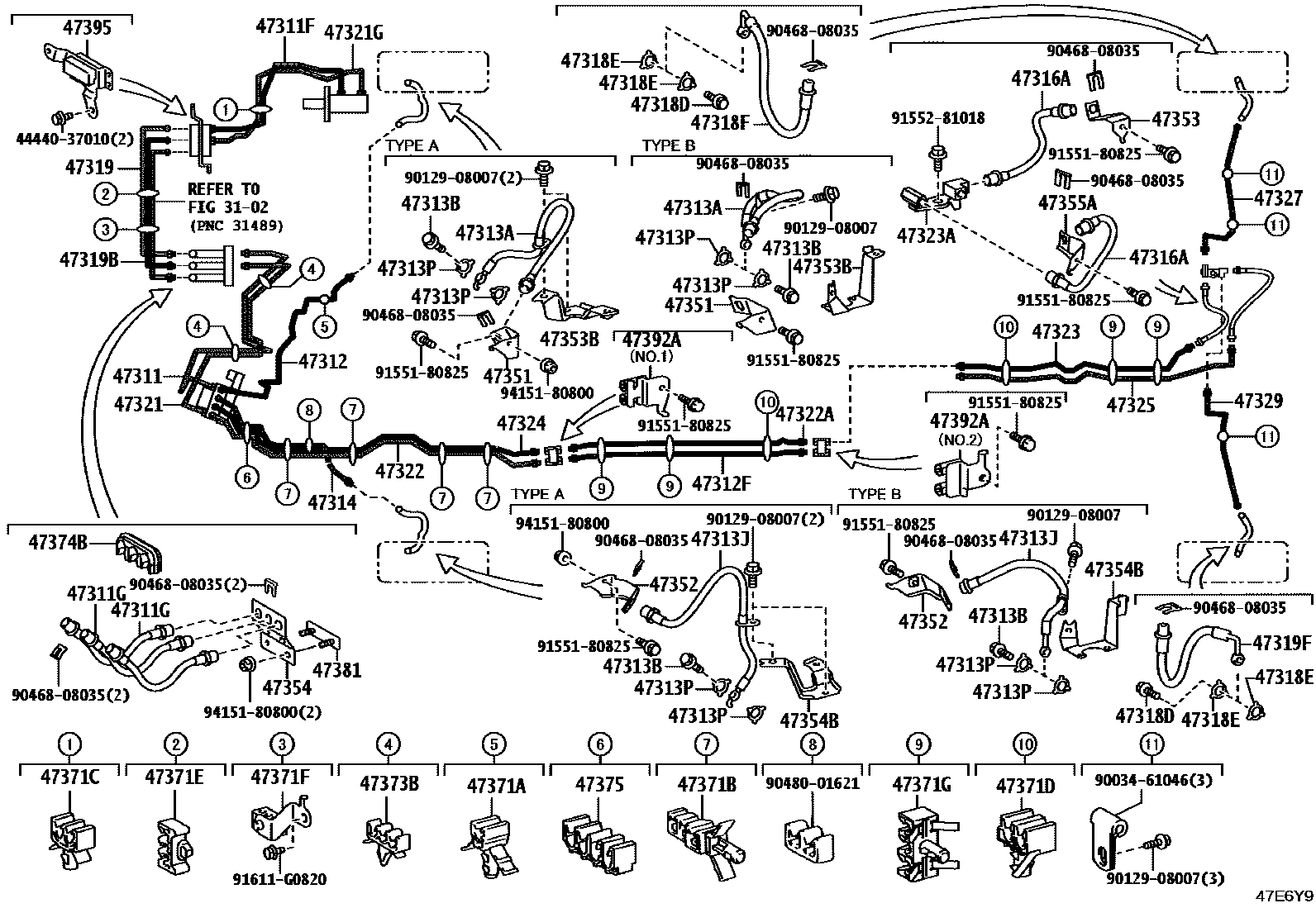

Parts diagram

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

47311TUBE, FRONT BRAKE, NO.1

47311FTUBE, FRONT BRAKE, FRAME NO.1

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

47312TUBE, FRONT BRAKE, NO.2

47312FTUBE, FRONT BRAKE, FRAME, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

47314TUBE, FRONT BRAKE, NO.4

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

47318FHOSE, FLEXIBLE(FOR REAR RH)

47319TUBE, FRONT BRAKE, NO.9

47319BTUBE, FRONT BRAKE, NO.11

47319FHOSE, FLEXIBLE(FOR REAR LH)

47321TUBE, REAR BRAKE, NO.1

47321GTUBE, REAR BRAKE, FRAME NO.1

47322TUBE, REAR BRAKE, NO.2

47322ATUBE, REAR BRAKE, FRAME NO.2

47323TUBE, REAR BRAKE, NO.3

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47327TUBE, REAR BRAKE, NO.7

47329TUBE, REAR BRAKE, NO.9

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

47353BBRACKET, FLEXIBLE HOSE, NO.3

47354BRACKET, FRONT FLEXIBLE HOSE

47354BBRACKET, FLEXIBLE HOSE, NO.4

47355ABRACKET, FLEXIBLE HOSE, NO.5

47371ACLAMP, BRAKE TUBE, NO.1

47371BCLAMP, BRAKE TUBE, NO.6

47371CCLAMP, BRAKE TUBE, NO.7

47371DCLAMP, BRAKE TUBE, NO.8

47371ECLAMP, BRAKE TUBE, NO.9

47371FCLAMP, BRAKE TUBE, NO.10

47371GCLAMP, BRAKE TUBE, NO.11

47373BCLAMP, BRAKE TUBE, NO.3

47374BCLAMP, BRAKE TUBE, NO.4

47375CLAMP, BRAKE TUBE, NO.5

47381BRACKET, BRAKE TUBE CLAMP NO.1

47392AWAY, BRAKE TUBE, NO.2

47395WAY, BRAKE TUBE, NO.3

4444037010BRACKET ASSY, PUMP

9003461046

9012908007

9046808035

9048001621

9155180825

9155281018

91611G0820

9415180800

58 parts on this diagram · 14 diagrams in section

BRAKE TUBE & CLAMP for Toyota 331180

This section contains 79 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota 331180. Key components include: CLUTCH PEDAL & FLEXIBLE HOSE, ATTACHMENT, SKID CONTROL WIRE, NO.1, ACTUATOR ASSY, BRAKE, COLLAR, BRAKE ACTUATOR CASE, NO.1, CUSHION, BRAKE ACTUATOR BRACKET.
