Toyota 331180 — FRONT DISC BRAKE CALIPER & DUST COVER

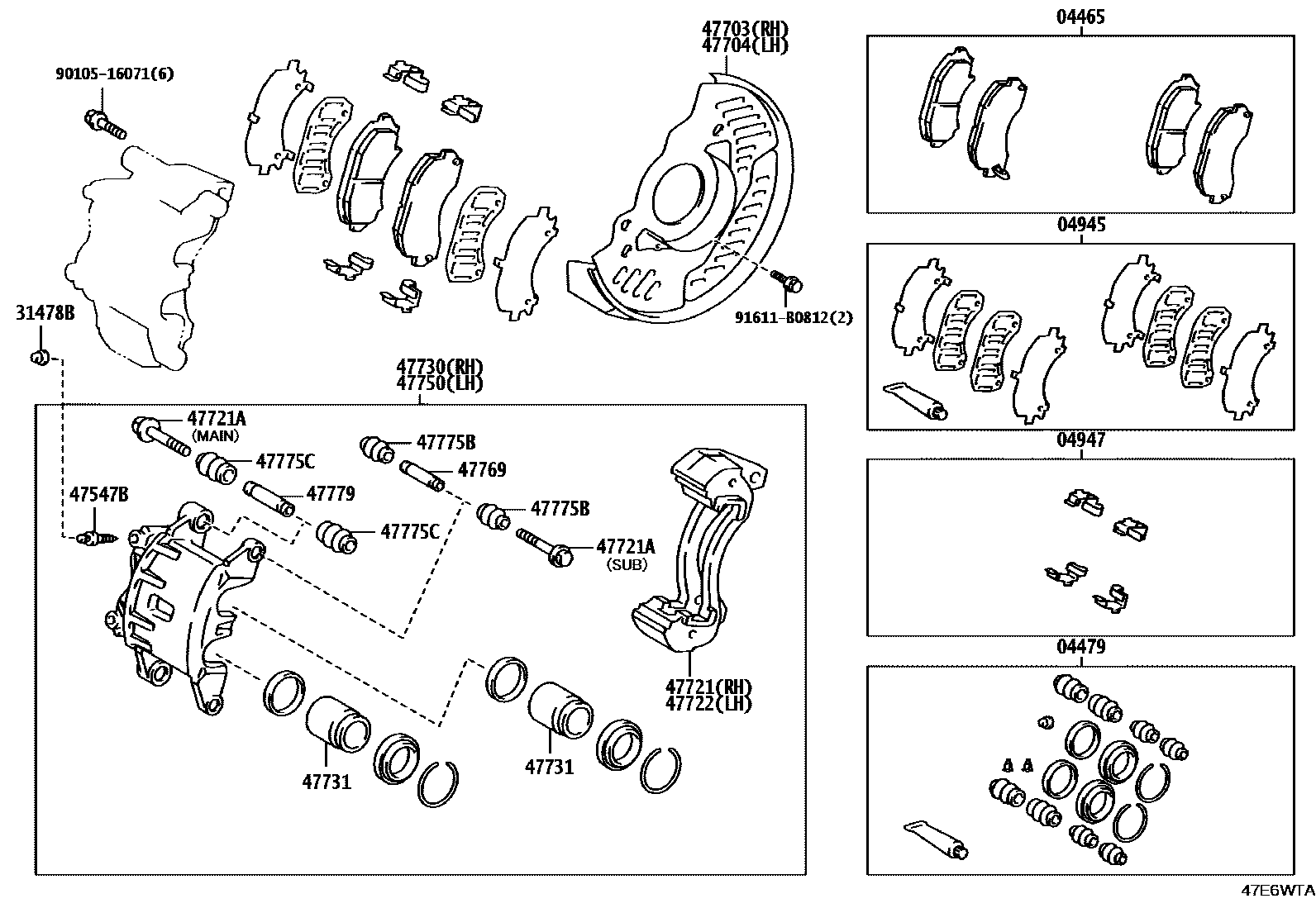

Parts diagram

04465PAD KIT, DISC BRAKE, FRONT

04479CYLINDER KIT, DISC BRAKE, FRONT

04945SHIM KIT, ANTI SQUEAL, FRONT

04947FITTING KIT, DISC BRAKE, FRONT

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

47731PISTON, FRONT DISC BRAKE

47750CYLINDER ASSY, DISC BRAKE, LH

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

47775BBOOT, BUSH DUST, NO.1

47775CBOOT, BUSH DUST, NO.2

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

9010516071

91611B0812

21 parts on this diagram · 2 diagrams in section

FRONT DISC BRAKE CALIPER & DUST COVER for Toyota 331180

This section contains 23 genuine Toyota parts for the FRONT DISC BRAKE CALIPER & DUST COVER system of the Toyota 331180. Key components include: PAD KIT, DISC BRAKE, FRONT, CYLINDER KIT, DISC BRAKE, FRONT, SHIM KIT, ANTI SQUEAL, FRONT, FITTING KIT, DISC BRAKE, FRONT, CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE).
