Toyota 331180 — BRAKE BOOSTER & VACUUM TUBE

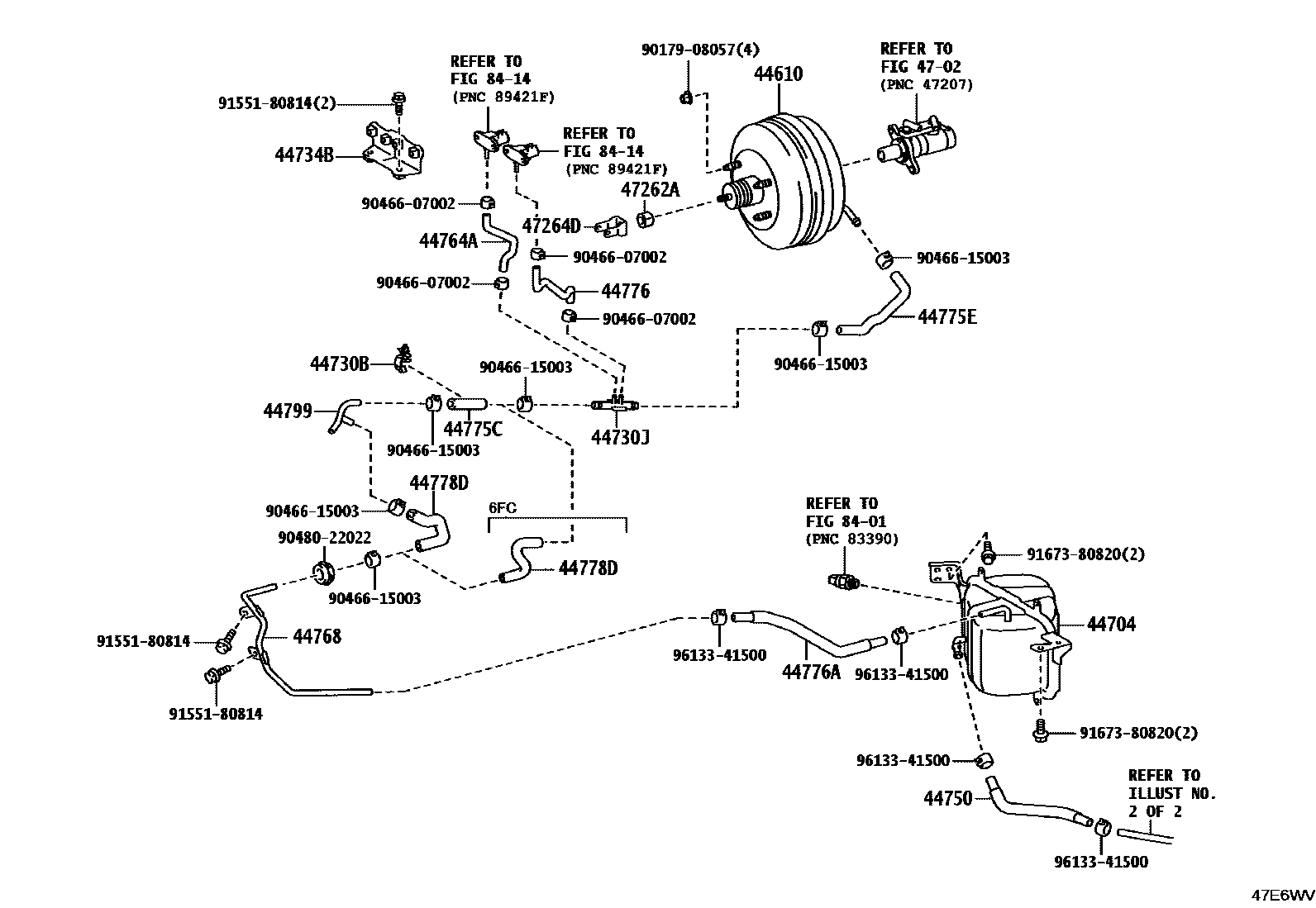

Parts diagram
44610BOOSTER ASSY, BRAKE
44610-37280
44704RESERVOIR SUB-ASSY, VACUUM
44704-37330
44730BCLAMP, VACUUM HOSE
44730JWAY(FOR BOOSTER VACUUM)
44734BBRACKET, BOOSTER SUPPORT
44750HOSE ASSY, VACUUM
44750-37390
44750-37400
44764AHOSE, BOOSTER VACUUM
44768TUBE, BOOSTER VACUUM
44768-37220
44775CHOSE, CONNECTOR TO WAY
44775EHOSE, WAY TO CONNECTOR
44776HOSE, BRAKE BOOSTER
44776-37330
44776-37470
44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE
44799WAY, BRAKE VACUUM HOSE
44799-37040
4702BRAKE MASTER CYLINDER
→ Go to FIG 47-02
47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8414ABS & VSC
→ Go to FIG 84-14
9017908057
90179-08057
9046607002
90466-07002
9046615003
90466-15003
9048022022
90480-22022
9155180814
91551-80814
9167380820
91673-80820
9613341500
96133-41500

26 parts on this diagram · 2 diagrams in section

BRAKE BOOSTER & VACUUM TUBE for Toyota 331180

This section contains 46 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota 331180. Key components include: VACUUM PUMP, PIPE, VACUUM, SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE), BOOSTER ASSY, BRAKE, RESERVOIR SUB-ASSY, VACUUM.
