Toyota 331180 — BRAKE MASTER CYLINDER

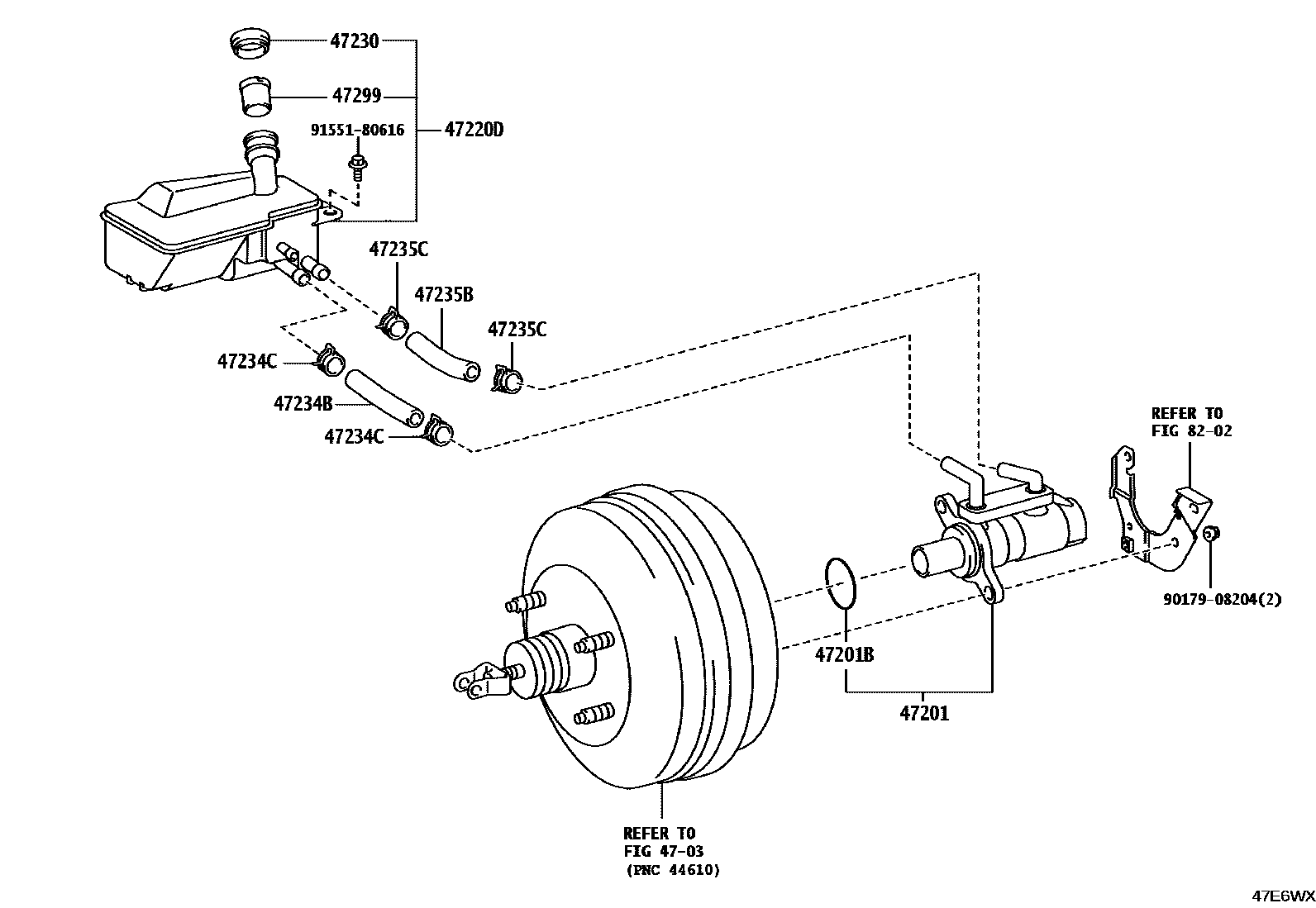

Parts diagram

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

47201BRING, O(FOR BRAKE MASTER CYLINDER)

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

47234BTUBE, RESERVOIR, NO.1

47234CCLIP(FOR RESERVOIR TUBE NO.1)

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

9155180616

13 parts on this diagram · 1 diagram in section

BRAKE MASTER CYLINDER for Toyota 331180

This section contains 13 genuine Toyota parts for the BRAKE MASTER CYLINDER system of the Toyota 331180. Key components include: BRAKE BOOSTER & VACUUM TUBE, CYLINDER SUB-ASSY, BRAKE MASTER, RING, O(FOR BRAKE MASTER CYLINDER), RESERVOIR ASSY, BRAKE MASTER CYLINDER, CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER.
