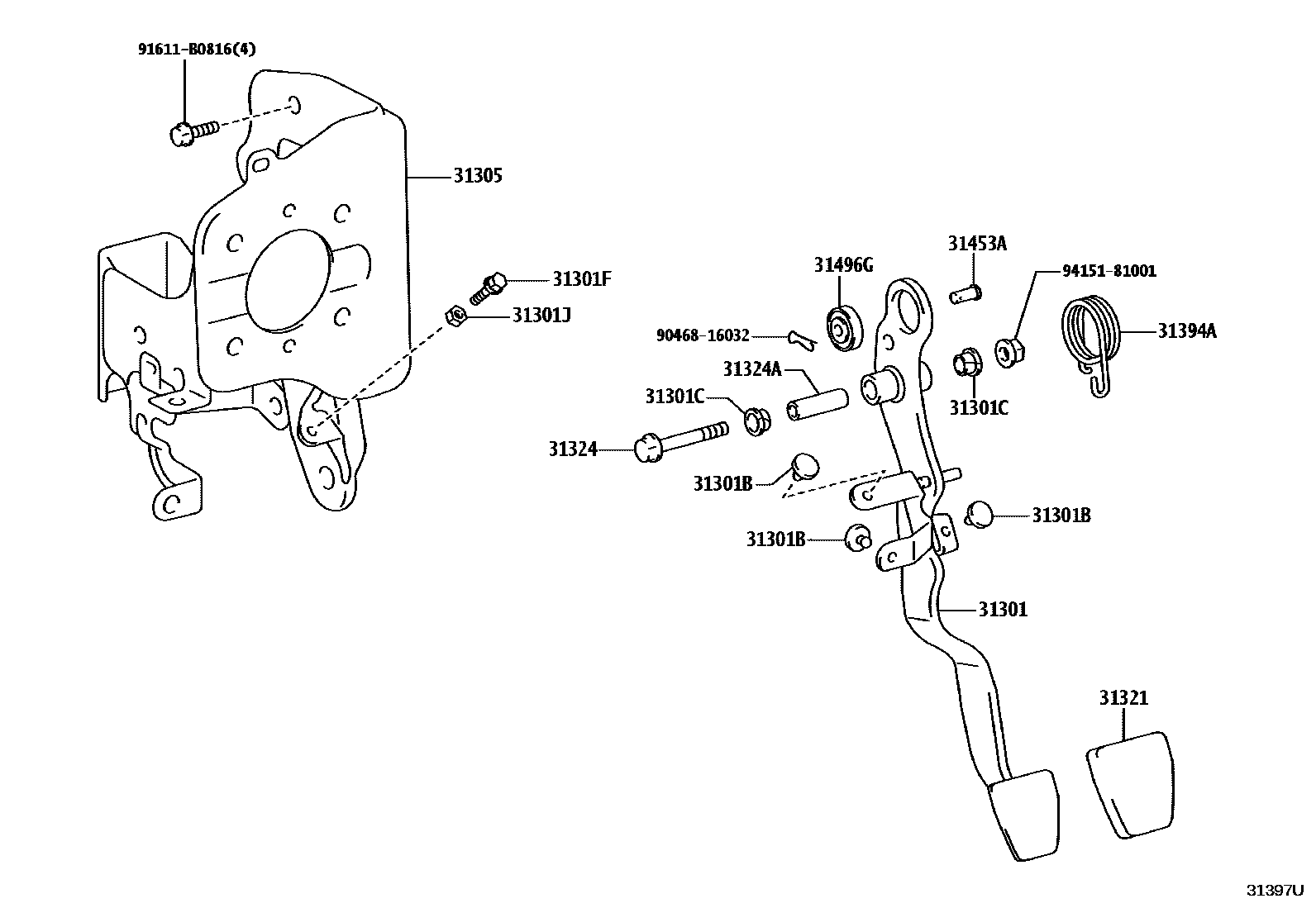

Toyota 331180 — CLUTCH PEDAL & FLEXIBLE HOSE
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31305BRACKET SUB-ASSY, CLUTCH PEDAL
31321PAD, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31394ASPRING, PEDAL W/HOOK
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31496GCUSHION, CLUTCH ACCUMULATOR
9046816032
91611B0816
9415181001
15 parts on this diagram · 2 diagrams in section
CLUTCH PEDAL & FLEXIBLE HOSE for Toyota 331180
This section contains 29 genuine Toyota parts for the CLUTCH PEDAL & FLEXIBLE HOSE system of the Toyota 331180. Key components include: CLUTCH MASTER CYLINDER, CLUTCH RELEASE CYLINDER, PEDAL SUB-ASSY, CLUTCH, CUSHION, NO.1(FOR CLUTCH PEDAL), BUSH(FOR CLUTCH PEDAL).
