Toyota 331180 — STARTER

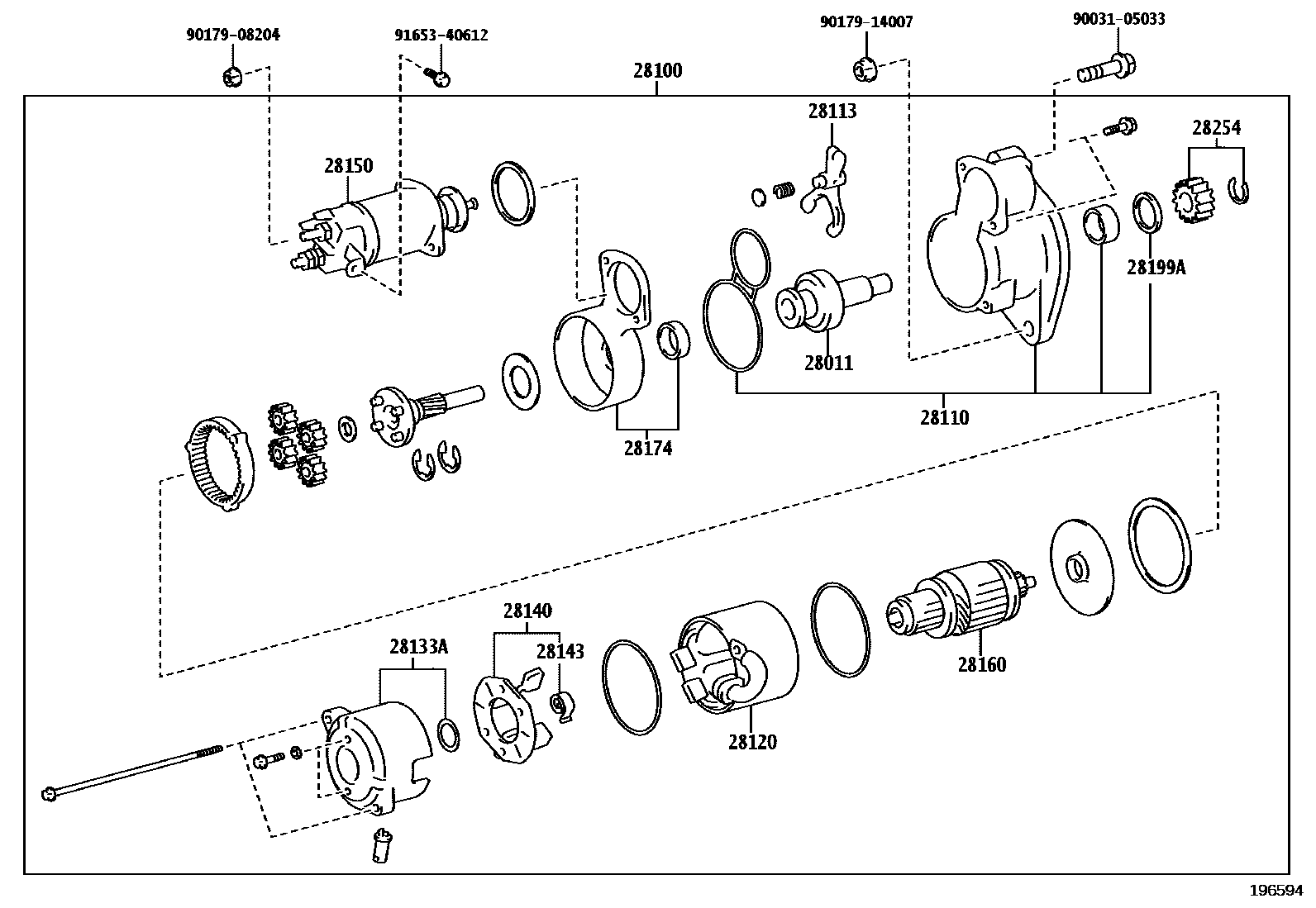

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

28100STARTER ASSY

28110HOUSING ASSY, STARTER DRIVE

28113LEVER, STARTER PINION DRIVE

28120YOKE ASSY, STARTER

28133AFRAME, COMMUTATOR END

28140HOLDER ASSY, STARTER BRUSH

28143SPRING, STARTER BRUSH

28150SWITCH ASSY, MAGNET STARTER

28160ARMATURE ASSY, STARTER

28174HOUSING, STARTER MOTOR

28199APROTECTOR, DUST STARTER

28254PINION, STARTER IDLE GEAR

9003105033

9017908204

9017914007

9165340612

17 parts on this diagram · 1 diagram in section

STARTER for Toyota 331180

This section contains 17 genuine Toyota parts for the STARTER system of the Toyota 331180. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, LEVER, STARTER PINION DRIVE, YOKE ASSY, STARTER.
