Toyota 331180 — EXHAUST PIPE

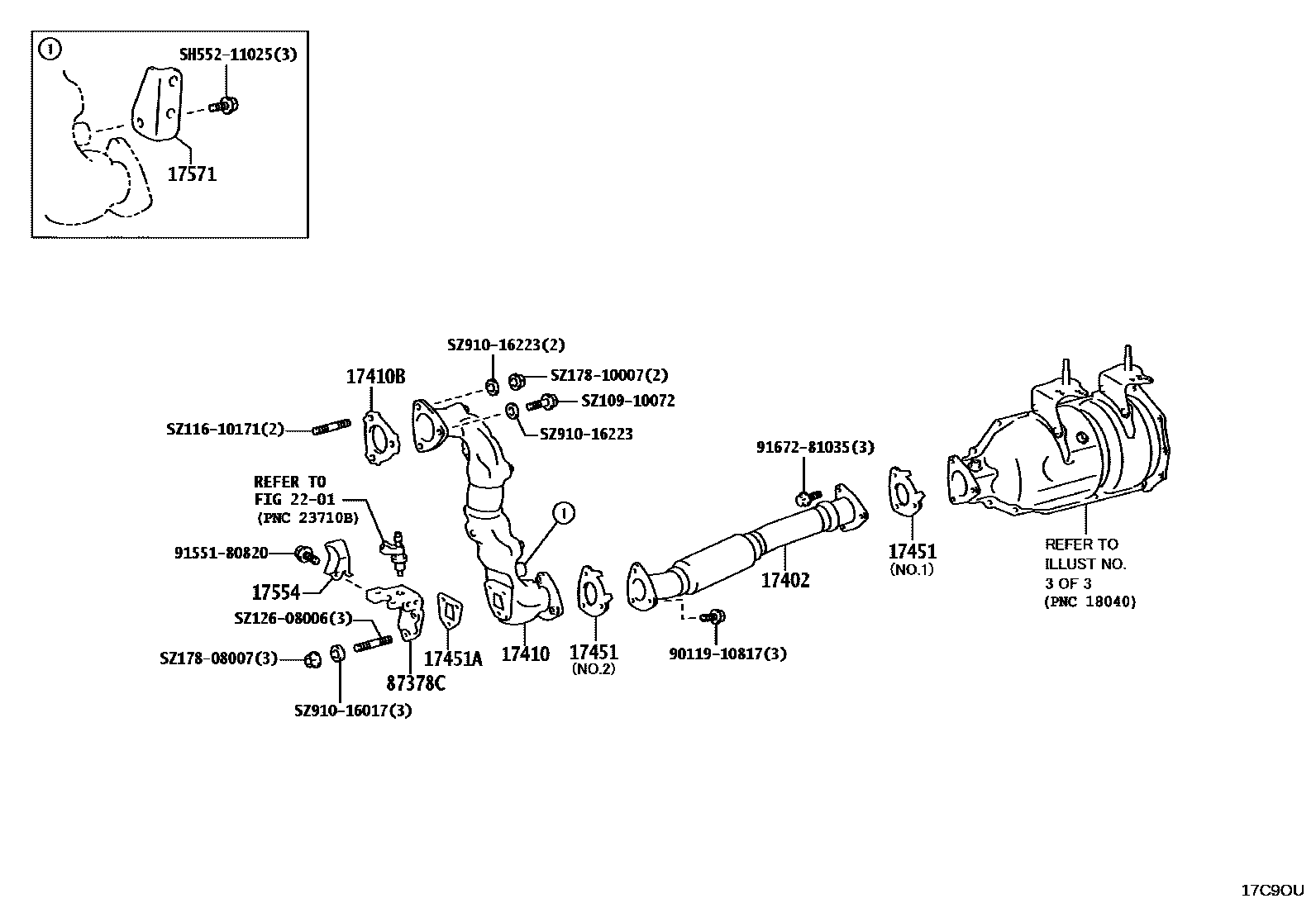

Parts diagram

17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2

17410PIPE ASSY, EXHAUST, FRONT

17410BGASKET, EXHAUST PIPE

17451GASKET, EXHAUST PIPE

17451AGASKET, EXHAUST PIPE, NO.2

17554INSULATOR, EXHAUST PIPE HEAT, FRONT

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

2201INJECTION NOZZLE

→ Go to FIG 22-01

87378CPIPE, EXHAUST

9011910817

9155180820

9167281035

SH55211025

SZ10910072

SZ11610171

SZ12608006

SZ17808007

SZ17810007

SZ91016017

SZ91016223

20 parts on this diagram · 3 diagrams in section

EXHAUST PIPE for Toyota 331180

This section contains 61 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 331180. Key components include: CHAMBER, COMBUSTION, PLUG, DRAIN, PIPE SUB-ASSY, EXHAUST, FRONT NO.2, PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE.
