Toyota 331180 — RADIATOR & WATER OUTLET

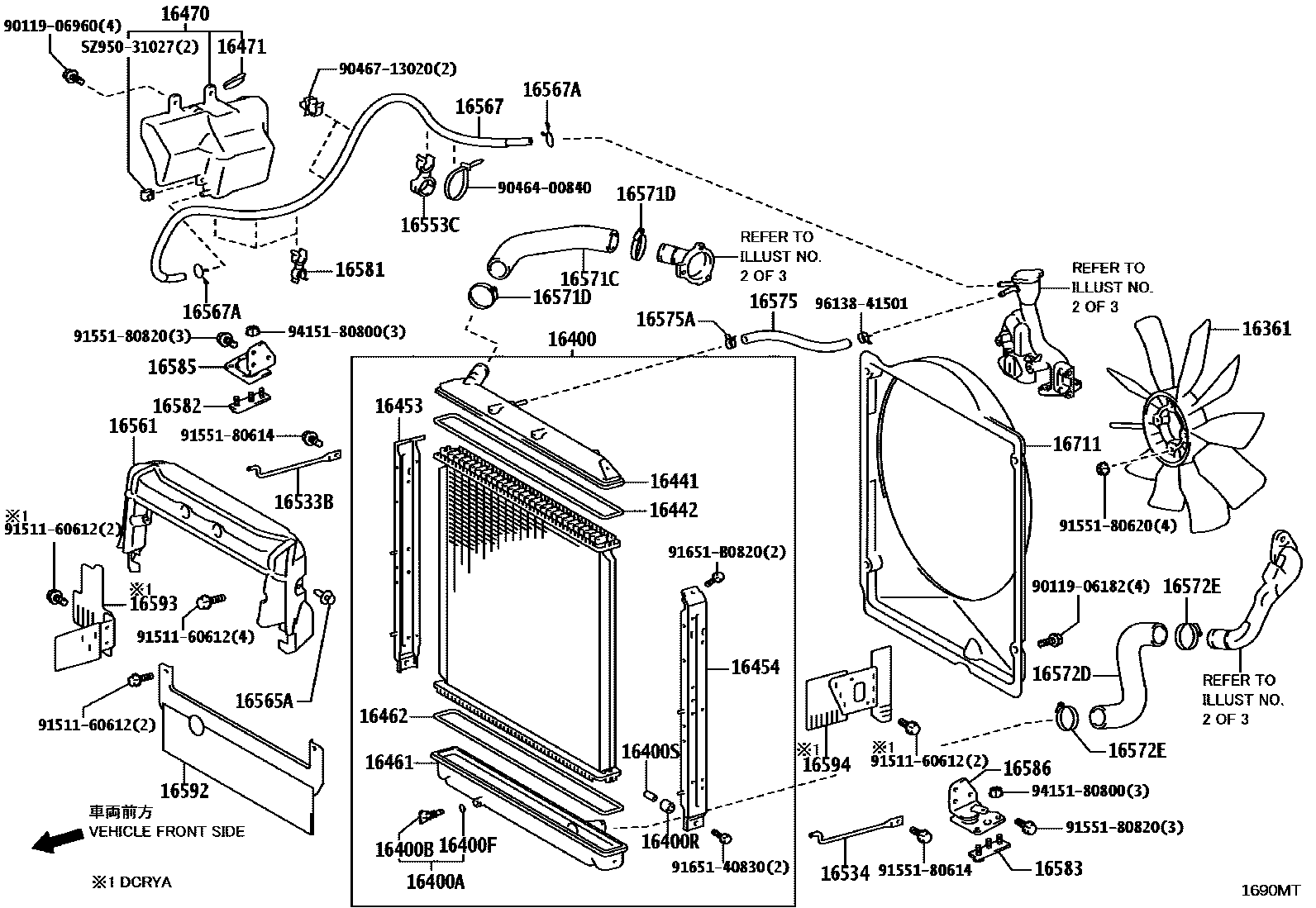

Parts diagram

16361FAN

16400RADIATOR ASSY

16400ACOCK SUB-ASSY, RADIATOR DRAIN

16400BPLUG, RADIATOR DRAIN COCK

16400FPACKING(FOR RADIATOR DRAIN COCK)

16400RBUSHING(FOR RADIATOR)

16400SCOLLAR(FOR RADIATOR)

16441TANK, RADIATOR, UPPER

16442RING, O(FOR RADIATOR UPPER TANK)

16453PLATE, RADIATOR SIDE

16454PLATE, RADIATOR SIDE

16461TANK, RADIATOR, LOWER

16462RING, O(FOR RADIATOR LOWER TANK)

16470TANK ASSY, RADIATOR RESERVE

16471CAP SUB-ASSY, RESERVE TANK

16533BSUPPORT, RADIATOR, NO.1

16534SUPPORT, RADIATOR, NO.2

16553CCLAMP, HOSE

16561SEAL, RADIATOR TO SUPPORT, NO.1

16565ACLIP

16567HOSE(FOR RADIATOR RESERVE TANK)

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

16571CHOSE, RADIATOR, NO.1

16571DCLIP, RADIATOR HOSE, NO.1

16572DHOSE, RADIATOR, NO.2

16572ECLIP, RADIATOR HOSE, NO.2

16575HOSE, RADIATOR, NO.5

16575ACLIP, RADIATOR HOSE, NO.5

16581CLAMP, HOSE(FOR WATER HOSE)

16582BRACKET, RADIATOR, NO.1

16583BRACKET, RADIATOR, NO.2

16585BRACKET, RADIATOR, NO.3

16586BRACKET, RADIATOR, NO.4

16592GUIDE, RADIATOR AIR, NO.3

16593GUIDE, RADIATOR AIR, NO.1

16594GUIDE, RADIATOR AIR, NO.2

16711SHROUD, FAN

9011906182

9011906960

9046400840

9046713020

9151160612

9155180614

9155180620

9155180820

9165140830

91651B0820

9415180800

9613841501

SZ95031027

50 parts on this diagram · 3 diagrams in section

RADIATOR & WATER OUTLET for Toyota 331180

This section contains 122 genuine Toyota parts for the RADIATOR & WATER OUTLET system of the Toyota 331180. Key components include: PIPE SUB-ASSY, TURBO WATER, NO.1, BOLT, UNION(FOR TURBO WATER PIPE), GASKET(FOR TURBO WATER PIPE), PIPE SUB-ASSY, TURBO WATER, NO.2, RING, O(FOR TURBO WATER PIPE).
