Toyota 331180 — ENGINE OIL COOLER

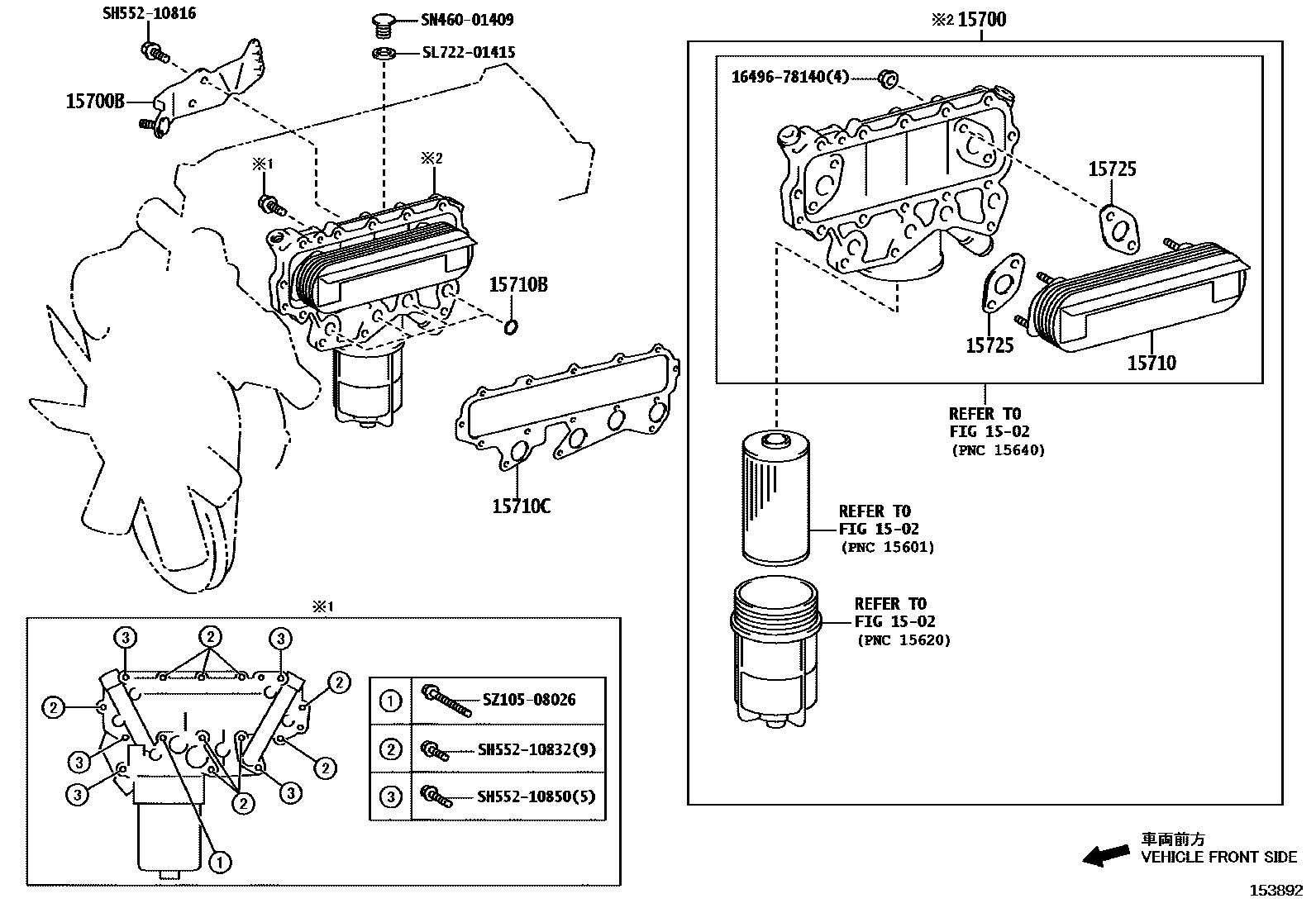

Parts diagram
1502OIL FILTER
→ Go to FIG 15-02
15700COOLER ASSY, OIL W/BRACKET
16269-78090
15700-78142
15700-78152
15700BBRACKET(FOR OIL COOLER)
15710COOLER ASSY, OIL
SZ301-19018
15725-E0020
16491-78140
16491-78150
15710BRING, O(FOR OIL COOLER)
15710CGASKET(FOR OIL COOLER)
15725GASKET, OIL COOLER COVER
15785-EV010
1649678140
16496-78140
SH55210816
SH552-10816
SH55210832
SH552-10832
SH55210850
SH552-10850
SL72201415
SL722-01415
SN46001409
SN460-01409
SZ10508026
SZ105-08026

14 parts on this diagram · 1 diagram in section

ENGINE OIL COOLER for Toyota 331180

This section contains 14 genuine Toyota parts for the ENGINE OIL COOLER system of the Toyota 331180. Key components include: OIL FILTER, COOLER ASSY, OIL W/BRACKET, BRACKET(FOR OIL COOLER), COOLER ASSY, OIL, RING, O(FOR OIL COOLER).
