Toyota 331180 — OIL FILTER

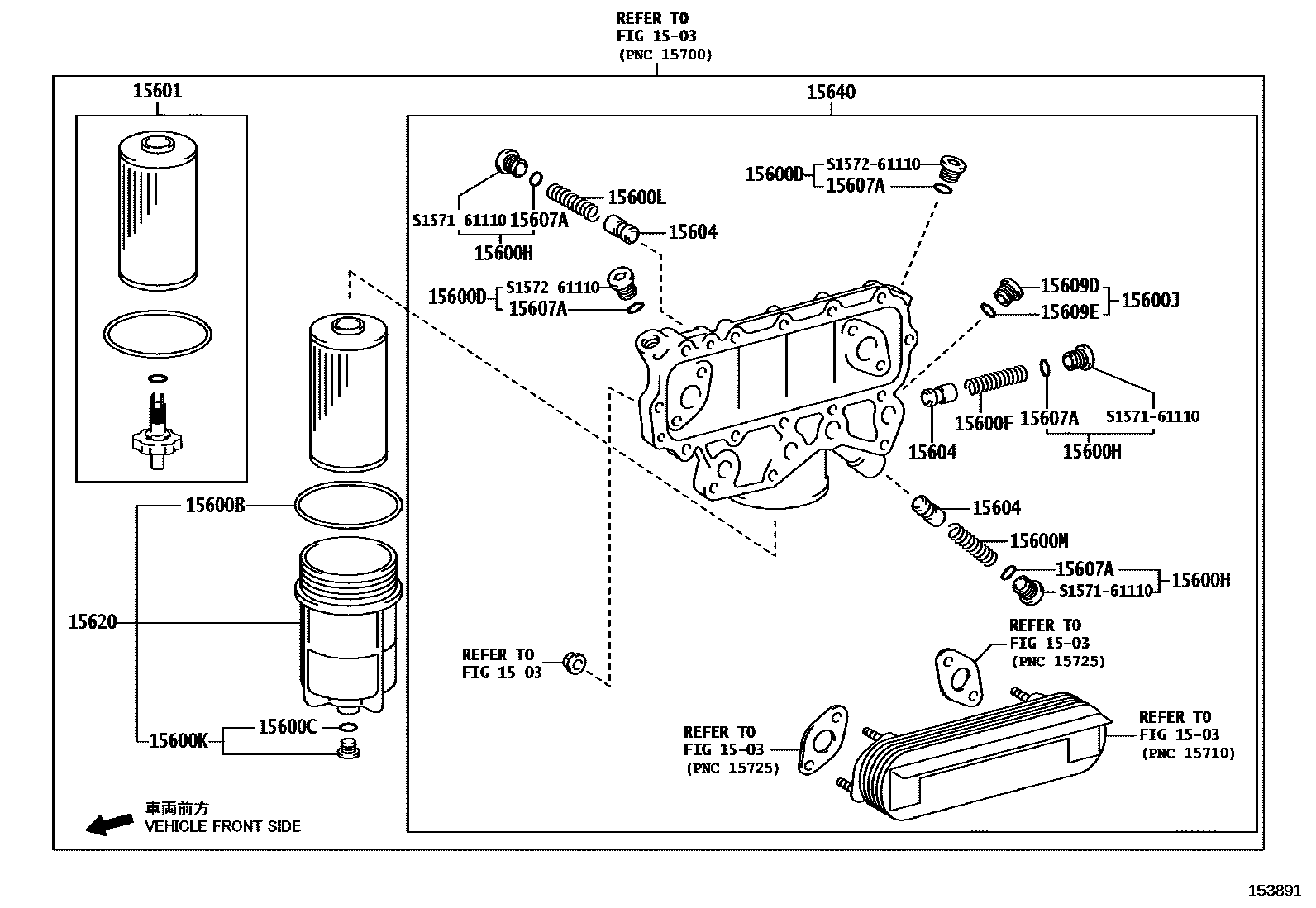

Parts diagram

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15600BRING, O, NO.1(FOR OIL FILTER)

15600CRING, O, NO.2(FOR OIL FILTER)

15600DPLUG(FOR OIL FILTER)

15600FSPRING, COMPRESSION(FOR OIL FILTER)

15600HPLUG, NO.2(FOR OIL FILTER)

15600JPLUG, NO.3(FOR OIL FILTER)

15600KPLUG, NO.4(FOR OIL FILTER)

15600LSPRING, COMPRESSION, NO.2(FOR OIL FILTER)

15600MSPRING, COMPRESSION, NO.3(FOR OIL FILTER)

15601FILTER SUB-ASSY, OIL

15604VALVE SUB-ASSY, OIL SAFETY

15607ARING, O(FOR OIL FILTER BODY)

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

15620CAP ASSY, OIL FILTER

15640CASE ASSY, OIL FILTER

S157161110

S157261110

19 parts on this diagram · 1 diagram in section

OIL FILTER for Toyota 331180

This section contains 19 genuine Toyota parts for the OIL FILTER system of the Toyota 331180. Key components include: ENGINE OIL COOLER, RING, O, NO.1(FOR OIL FILTER), RING, O, NO.2(FOR OIL FILTER), PLUG(FOR OIL FILTER), SPRING, COMPRESSION(FOR OIL FILTER).
