Toyota 331180 — MOUNTING

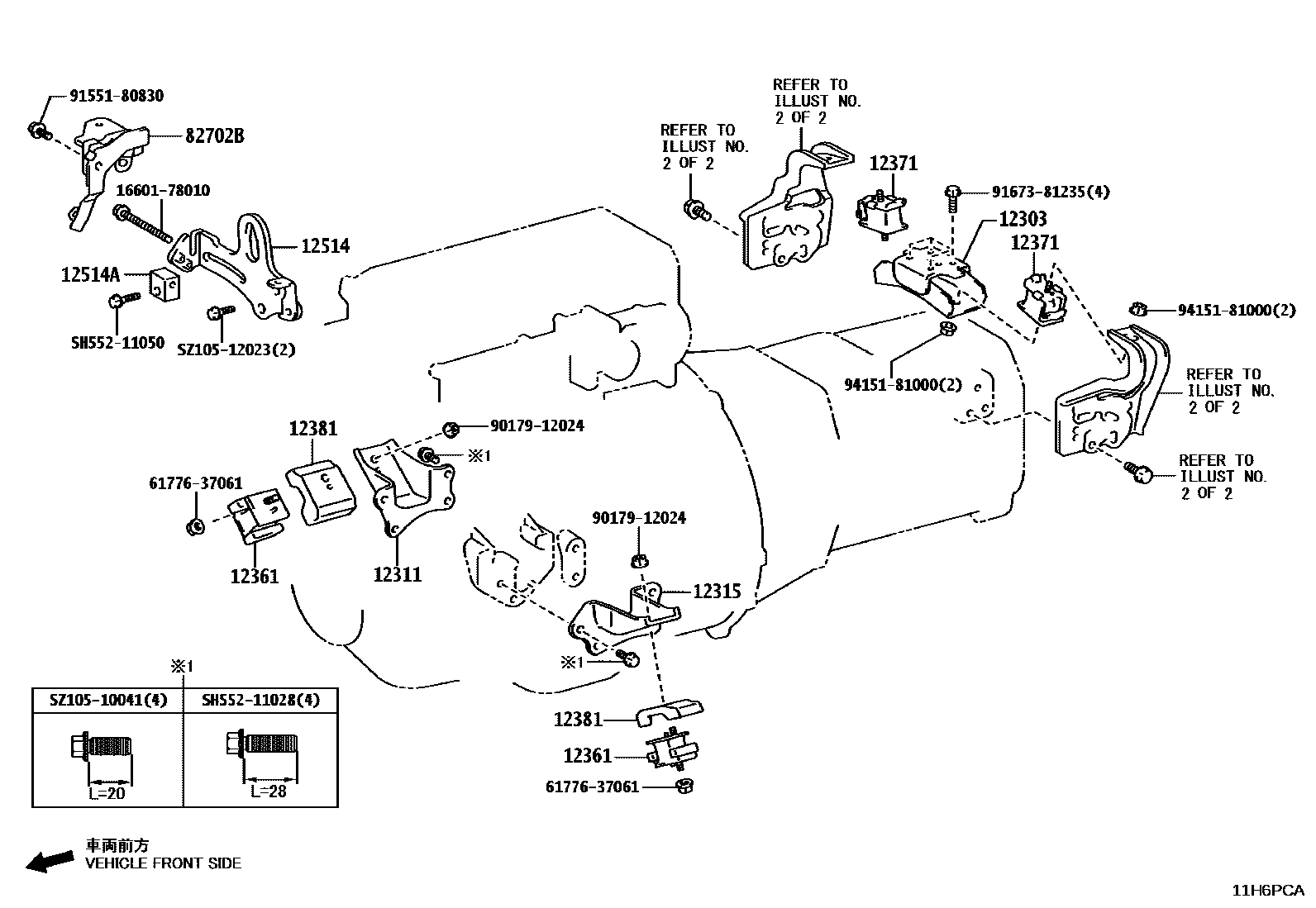

Parts diagram

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

12361INSULATOR, ENGINE MOUNTING, FRONT

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

12381STABILIZER, ENGINE MOUNTING

12514BAR, ALTERNATOR BELT ADJUSTING

12514ASLIDER, FAN BELT ADJUSTING

82702BBRACKET SUB-ASSY, WIRING HARNESS

1660178010TENSIONER SUB-ASSY, V-RIBBED BELT

6177637061STRENGTH, QUARTER PANEL HORIZONTAL, LOWER CENTER RH

9017912024

9155180830

9167381235

9415181000

SH55211028

SH55211050

SZ10510041

SZ10512023

19 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota 331180

This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota 331180. Key components include: BRACKET SUB-ASSY, ENGINE MOUNTING, REAR, BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, NO.3.
